Especificaciones principales
Disponibilidad56 Pzas.
MarcaINA

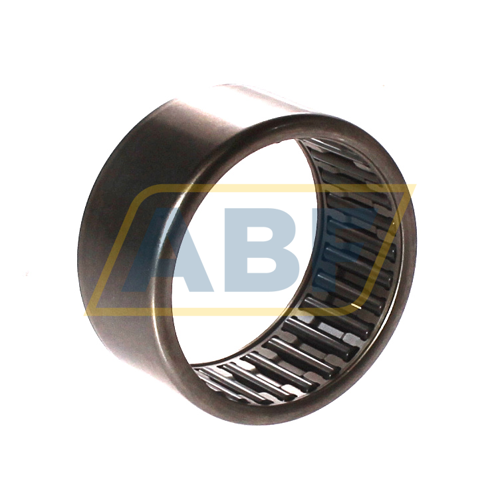

Número de artículoHK3520-AS1-B INA
También se conoce como
0068100470000
EAN4012802445435
CategoríaRodamiento de agujas e corona de agujas
Peso y dimensiones
Interior (d) mm
35,00
Exterior (D) mm
42,00
Ancho (B) mm
20,00
Interior (d) pulgadas
1.3780
Exterior (D) pulgadas
1.6535
Ancho (B) pulgadas
0.7874
Peso (kg)
0.0438
Propiedades del producto
Junta
Sin junta
Datos de Schaeffler (medias)
Diámetro inferior del rodillo (F w) mm
35,00
Ancho (C) mm
20,00
Radial Static Load Rating C0r (N)
46000
Radial Dynamic Load Rating Cr (N)
23800
Carga estática básica, radial (C 0r)
"46000.0000"
Velocidad límite (n G)
"7500.0000"
Velocidad límite para la lubricación con grasa (n G Grasa)
"4500.0000"
Velocidad de referencia (n ϑr)
"5500.0000"
ECLASS number
23-05-09-05
ECLASS2 number
23-05-09-05
Descripcion de los Medias
Drawn cup needle roller bearing open end HK..-AS1-B, single row, with cage
Descripción del sufijo
AS1Needle Roller Bearing With Lubrication Hole(s) In The Outer Ring. A Figure Following The As Indicates The Number Of Holes
BThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
