CategoríaRodamiento de dos hileras de rodillos cilíndricos
Peso y dimensiones
Interior (d) mm
25,00
Exterior (D) mm
42,51
Ancho (B) mm
30,00
Interior (d) pulgadas
0.9843
Exterior (D) pulgadas
1.6736
Ancho (B) pulgadas
1.1811
Peso (kg)
0.15
Propiedades del producto
Agujero
C - Agujero cilíndrico
Junta
Sin junta
Jaula
FC - Complemento entero, sin jaula
Modificación externa
Sin Modificación Externa
Juego radial interno
Cn Juego interno normal
Precisión
Precisión estándar
Estabilización térmica
Sin estabilización térmica - Temperaturas de hasta 120 ºC
Datos de Schaeffler (medias)
Diámetro de la costilla interior del anillo (d) mm
25,00
E w mm
42,51
Ancho (b) mm
30,00
Radial Static Load Rating C0r (N)
64000
Radial Dynamic Load Rating Cr (N)
53000
Carga estática básica, radial (C 0r)
"64000.0000"
Velocidad límite (n G)
"9500.0000"
Velocidad de referencia (n ϑr)
"6000.0000"
ECLASS number
23-05-09-01
ECLASS2 number
23-05-09-01
Descripcion de los Medias

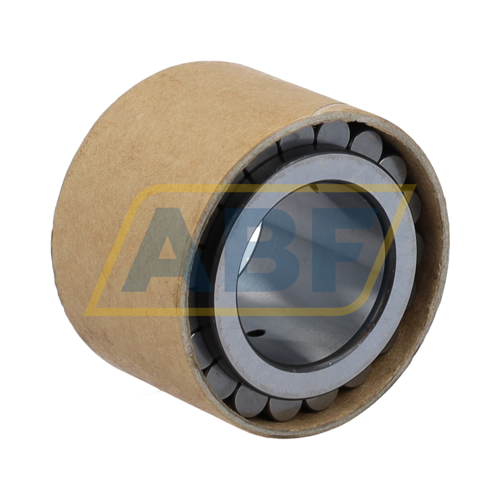

Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
Descripción del sufijo
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
