Specifiche principali
Disponibilità29 pz
MarchioFAG
Numero articolo6311-2Z FAG
Conosciuto anche come
0167237590000
6311-C-2Z
EAN4012801165679
CategoriaSingola fila di cuscinetti a sfere a scanalatura profonda
Peso e dimensioni
Interno (d) MM
55,00
Esterno (D) mm
120,00
Larghezza (B) MM
29,00
Interno (d) pollici
2.1654
Esterno (D) pollici
4.7244
Larghezza (B) pollici
1.1417
Peso (kg)
1.38
Proprietà del prodotto
Foro
C - Foro cilindrico
Tenuta
ZZ/2Z - Tenuta di acciaio su due lati
Tipo di gabbia
S - Gabbia di acciaio o standard
Modifica esterna
Nessun Modifica Esterna
Gioco interno radiale
Cn Gioco interno normale
Precisione
Precisione standard
Lubrificazione
Lubrificazione standard
Stabilizzazione termica
Nessuna stabilizzazione termica - Temperature fino a 120 °C
Trattamento speciale
Nessun trattamento speciale
Dati di Schaeffler (medias)
Larghezza (b) mm
29,00
Carico statico di base, radiale (C 0r)
"47500.0000"
Velocità limite (n G)
"7200.0000"
Velocità di riferimento (n ϑr)
"7100.0000"
Descrizione del suffisso
2ZNon-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
Dettagliato

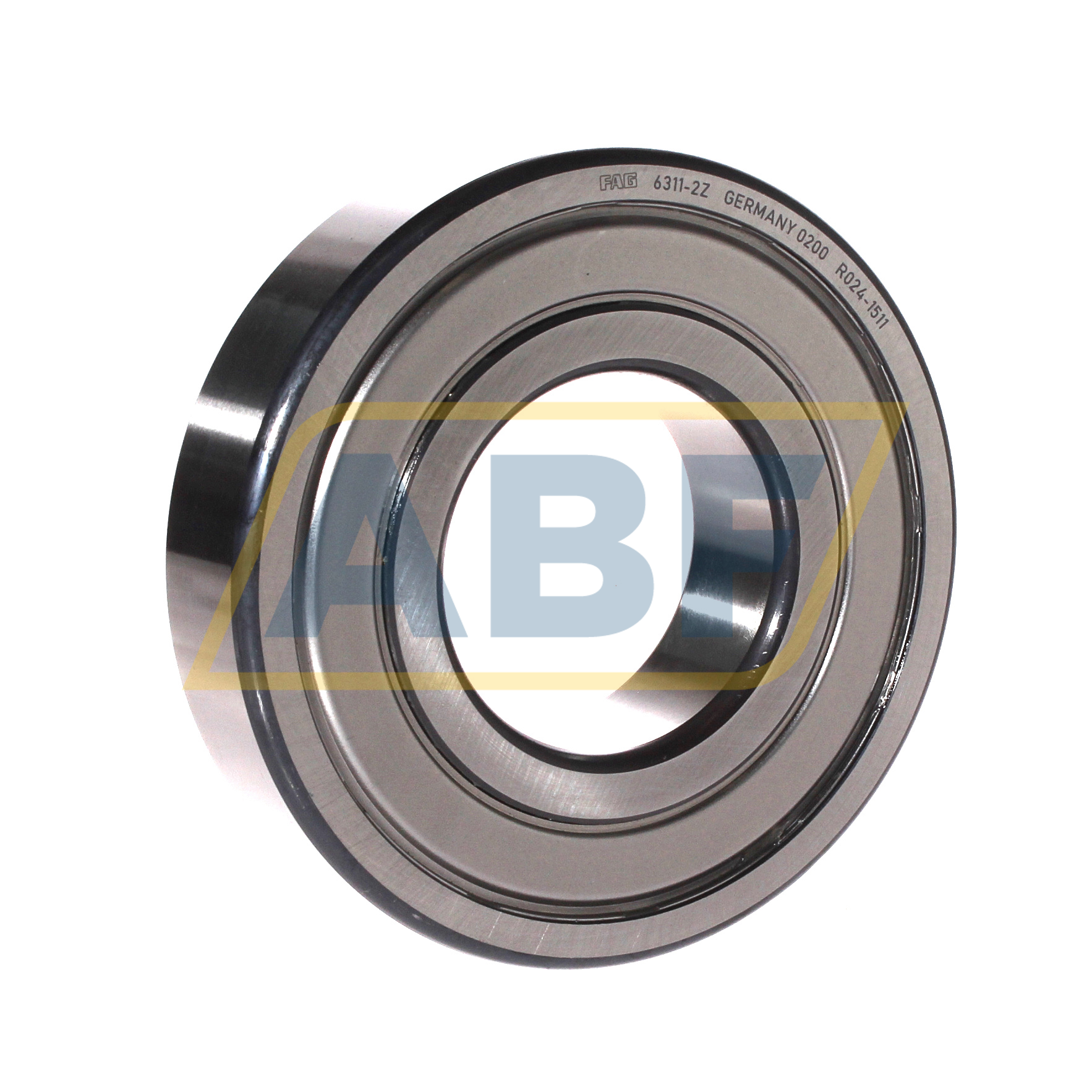

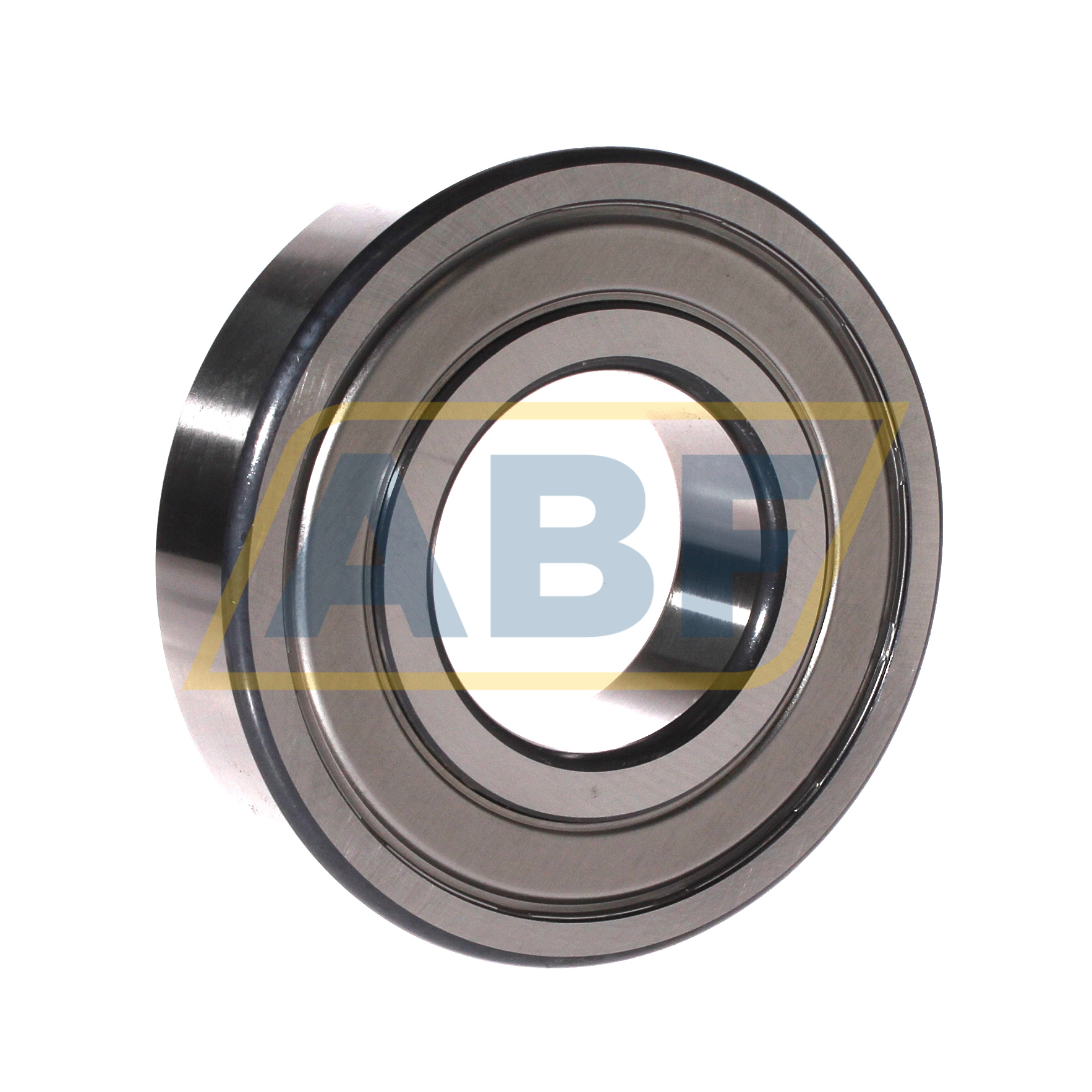

The 6311-2Z FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.
The 6311-2Z FAG is suitable for high speeds and can operate with low noise.
The dimensions of the 6311-2Z FAG are: Bore (or inner diameter) 55mm, Outer diameter 120mm and Width (or thickness) 29mm.
6300 serie The 6311-2Z FAG is part of the popular 6300 serie which contain extra light ball bearings and are perfect for limited space applications.The 6300 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.
Seal The 2Z suffix indicates that the bearing has a steel seal on both sides. The bearings are filled with a high-quality grease and are lubricated for life.
About FAG FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
