Stabilisation thermique
Aucune stabilisation thermique - températures jusqu'à 120 °C
Données de Schaeffler (médias)
Diamètre de la nervure de la bague intérieure (d) mm
25,00
E w mm
42,51
Largeur (b) mm
30,00
Radial Static Load Rating C0r (N)
64000
Radial Dynamic Load Rating Cr (N)
53000
Charge de base statique, radiale (C 0r)
"64000.0000"
Vitesse limite (n G)
"9500.0000"
Vitesse de référence (n ϑr)
"6000.0000"
ECLASS number
23-05-09-01
ECLASS2 number
23-05-09-01
Description des Medias

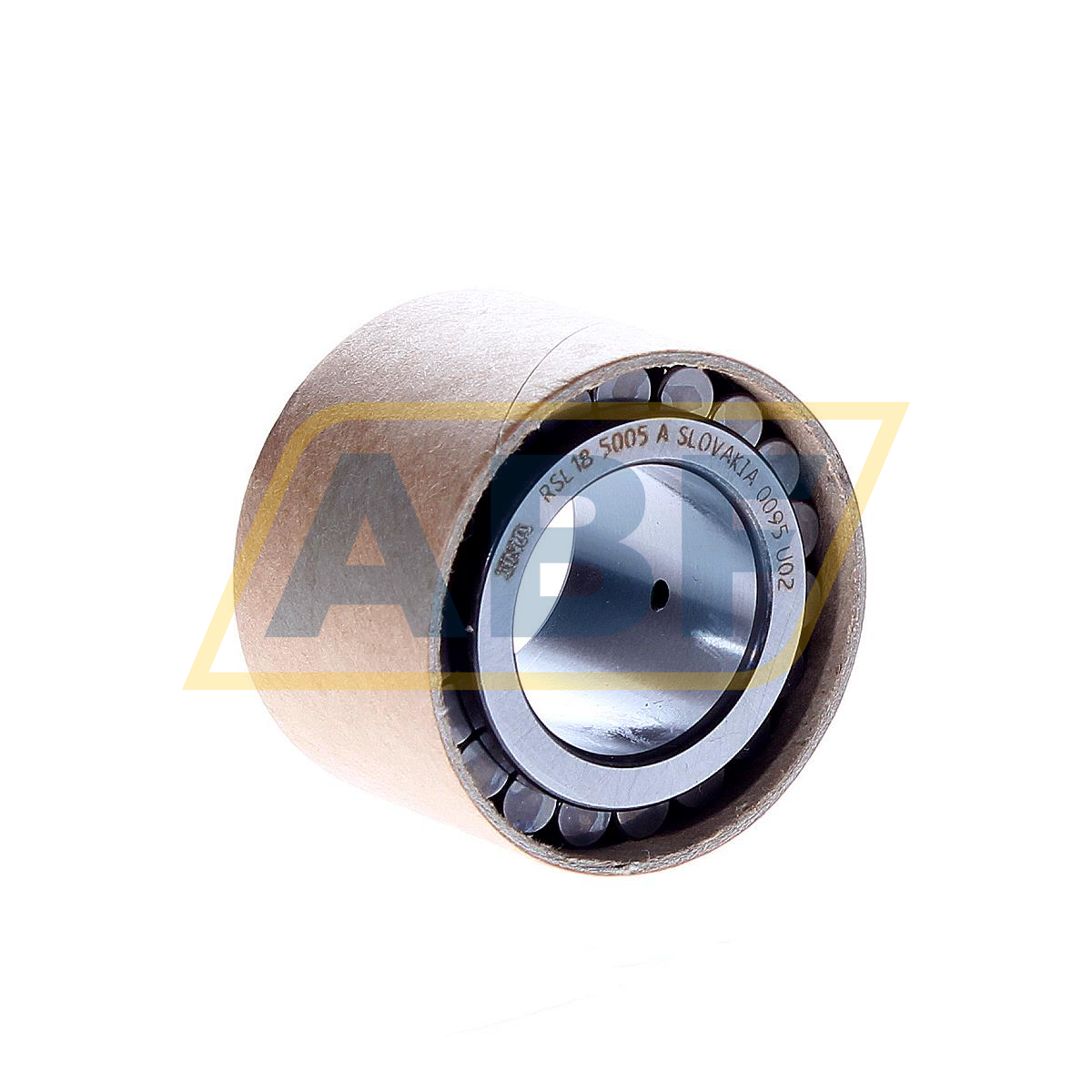

Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
Description du suffixe
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
