Especificações
Disponibilidade25 unid.
MarcaFAG

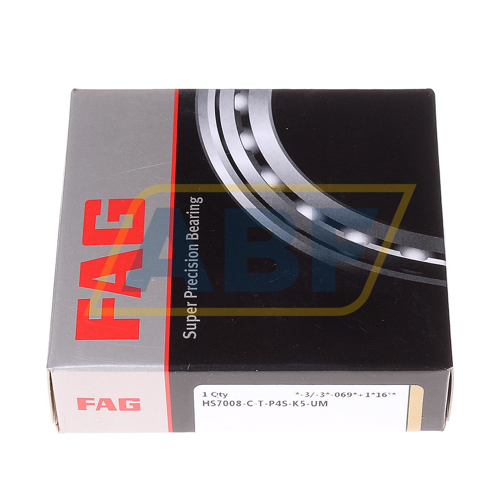

Número do artigoHS7008-C-T-P4S-K5-UM FAG
Também conhecido como
0584927550000
EAN4012802307757
CategoriaRolamento de esferas de contato angular
Peso e dimensões
Interno (d) mm
40,00
Externo (D) mm
68,00
Largura (B) mm
15,00
Interno (d) polegadas
1.5748
Externo (D) polegadas
2.6772
Largura (B) polegadas
0.5906
Peso (kg)
0.21
Características do produto
Vedação
Sem vedação
Tipo de gaiola
TB - gaiola reforçada de fibra
Precisão
K5 - P4S + K5
Ângulo de contato
15 graus
Pareamento
G - montagem universal
Folga axial interna / pré-carga
UM - execução universal para montagem aos pares, o par de rolamentos tem uma média pré-carga nas disposições em O ou em X
Lubrificação
Lubrificação standard
Dados da Schaeffler (medias)
Largura (b) mm
15,00
Fator de carga radial estática C0r (N)
5700
Fator de carga radial dinâmica Cr (N)
9400
Fator de carga estática básica, radial (C 0r)
"5700.0000"
Velocidade limite para lubrificação com graxa (n G Graxa)
"30000.0000"
Velocidade limite para lubrificação a óleo (n G Óleo)
"45000.0000"
Número ECLASS
23-05-08-03
Número ECLASS2
23-05-08-03
Descrição do Medias
Spindle bearings HS70..-C, adjusted, in pairs or sets, contact angle a = 15°, restricted tolerances
Descrição do sufixo
C15° Contact Angle
TTextile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
P4S-K5Combination Of P4S (Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9) And K5 (Same as P4S But With Mean Sorting Of Bore And Outside Diameter)
The HS7008-C-T-P4S-K5-UM FAG is a high-speed design spindle bearing. This bearing type without seals has small steel balls. The bearing has an internal design with optimised friction and the balls are subjected to very low centrifugal forces. Even at very high speeds, a high degree of rigidity is maintained. This makes the HS7008-C-T-P4S-K5-UM FAG particularly suitable for use in high-speed- or grinding spindles.
FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.
In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.
