Folga radial interna
Folga radial interna normal - Cn
Precisão
Precisão standard
Estabilização térmica
Sem estabilização térmica - temperaturaa até 120 °C
Dados da Schaeffler (medias)
Largura (b) mm
72,00
Fator de carga radial estática C0r (N)
1650000
Fator de carga radial dinâmica Cr (N)
1160000
Fator de carga estática básica, radial (C 0r)
"1650000.0000"
Velocidade limite para lubrificação com graxa (n G Graxa)
"1980.0000"
Velocidade limite para lubrificação a óleo (n G Óleo)
"2320.0000"
Número ECLASS
23-05-09-01
Número ECLASS2
23-05-09-01
Descrição do Medias
Cylindrical roller bearing N2..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
Descrição do sufixo
EIncreased Load Capacity
TBThe Rollers Have A Special Crowning On The Side Surface. Is Not Depending On The Cage Design. The Result Is A Better Lubrication In Between Roller And Rim

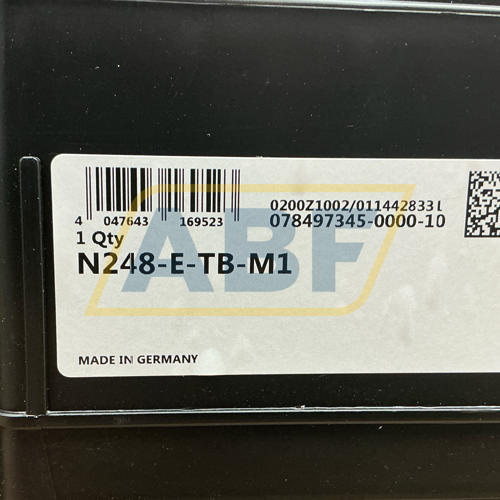

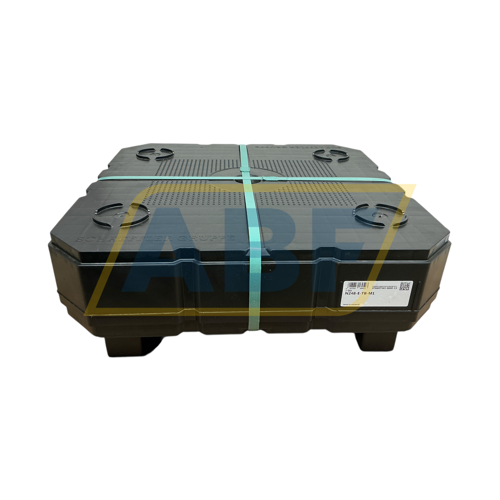

The N248-E-TB-M1 FAG is a single-row cylindrical roller bearing with cage. This bearing consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces. As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.
The N248-E-TB-M1 FAG is a single-row cylinder bearing with N design. The inner ring has two rigid ribs, while the outer ring has none. As a result, N bearings are only capable of supporting radial forces. This bearing type is commonly used as a floating bearing. Floating bearings allow axial displacement of the shaft relative to the housing in both directions. This is necessary in applications where the shaft material shrinks or expands due to temperature changes (thermal expansion).
