Especificações
Disponibilidade3 unid.
MarcaFAG
Número do artigoXCS71908-E-T-P4S-UL FAG
Manufacturer Part Number0387488510000
EAN4026677610027
CategoriaRolamento de esferas de contato angular
Peso e dimensões
Interno (d) mm
40
Externo (D) mm
62
Largura (B) mm
12
Interno (d) polegadas
1.5748
Externo (D) polegadas
2.4409
Largura (B) polegadas
0.4724
Peso (kg)
0.12
Características do produto
Vedação
2RU - Two Seals / Non Contact Type
Tipo de gaiola
TB - gaiola reforçada de fibra
Precisão
Precisão P4S (maior que P4)
Ângulo de contato
25 graus
Pareamento
G - montagem universal
Folga axial interna / pré-carga
UL - execução universal para montagem aos pares, o par de rolamentos tem uma leve pré-carga nas disposições em O ou em X
Lubrificação
Lubrificação standard
Dados da Schaeffler (medias)
Largura (b) mm
12
Fator de carga estática básica, radial (C 0r)
3900
Velocidade limite para lubrificação com graxa (n G Graxa)
40000
Número ECLASS
23-05-08-03
Número ECLASS2
23-05-08-03
Descrição do sufixo
E25° Contact Angle
TTextile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
P4SBoundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9

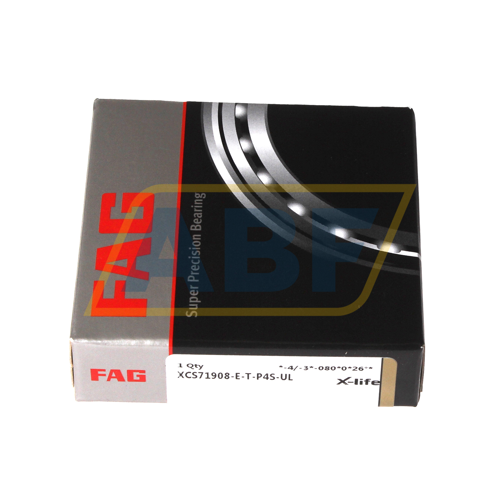

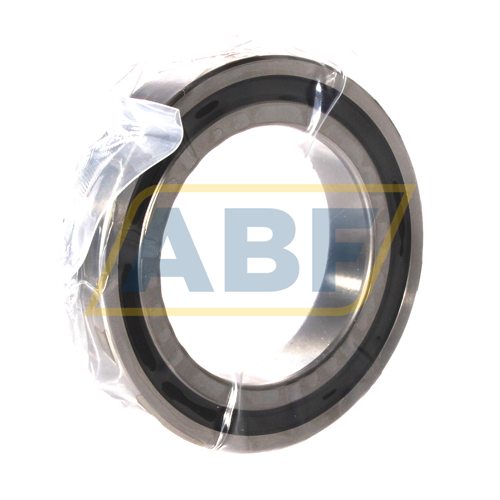

The XCS71908-E-T-P4S-UL FAG is a spindle bearing with a very durable construction. XCS angular contact ball bearings are part of the FAG X-life ultra series. These hybrid bearings combine a ring of Cronidur 30 steel with ceramic balls. X-life ultra bearings can withstand high speeds, high loads and high temperatures. FAG XCS models have small balls for extra high speeds.
Cronidur 30 steel generates less heat, allowing for higher contact pressure. It is corrosion resistant and less vulnerable to dirt than normal bearing steel. Furthermore, X-life ultra bearings have ceramic balls for higher speeds. The combination of steel and ceramics reduces the load on both materials and lubricants. With the wear-resistant XCS71908-E-T-P4S-UL FAG you save considerably on your maintenance and operating costs.
