Specifications
Availability20 pcs
BrandSKF
Item Number6215/C4 SKF
EAN7316577738363
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
75,00
Outer (D) MM
130,00
Width (B) MM
25,00
Inner (d) Inch
2.9528
Outer (D) Inch
5.1181
Width (B) Inch
0.9843
Weight (kg)
1.18
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
C4 Internal Play (Higher than C3)
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Suffix description
C4Bearing Internal Clearance Greater Than C3
Product description

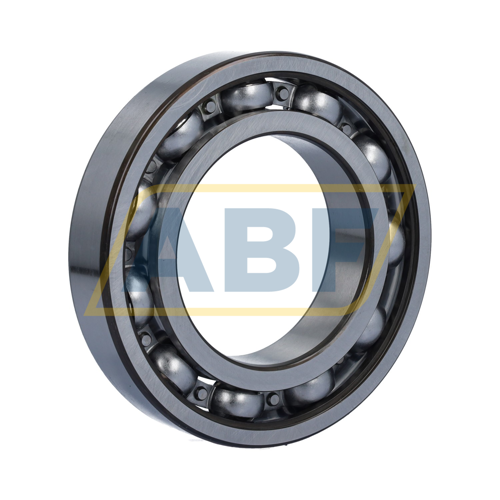

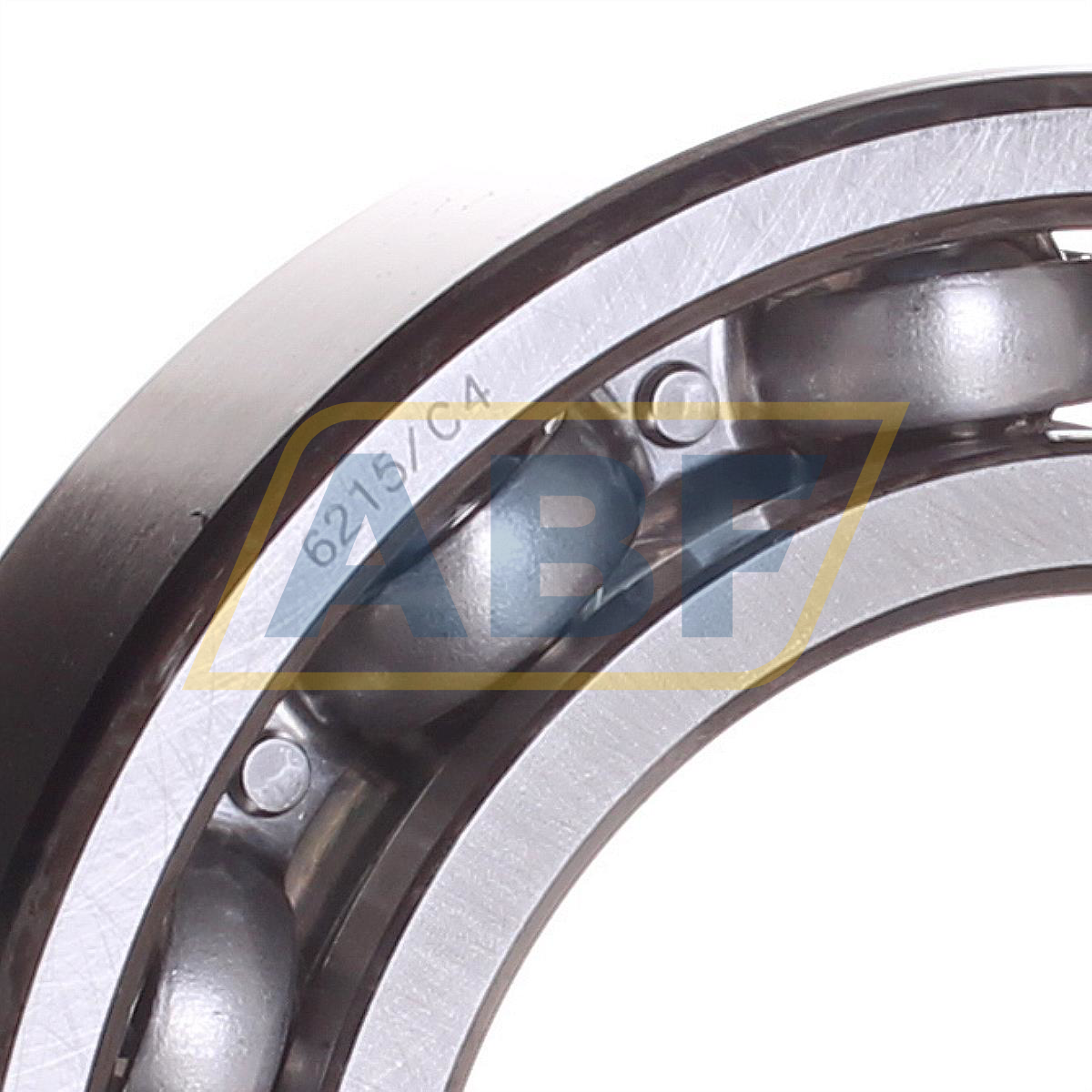

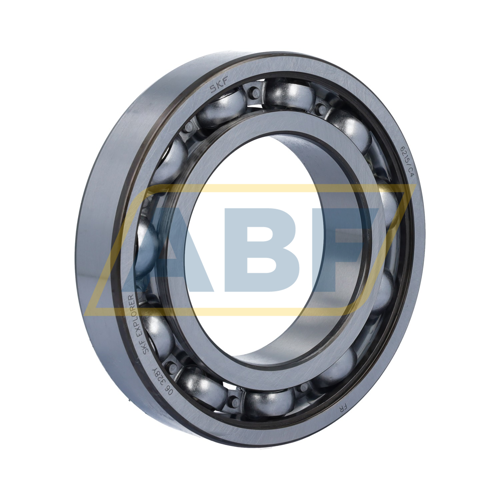

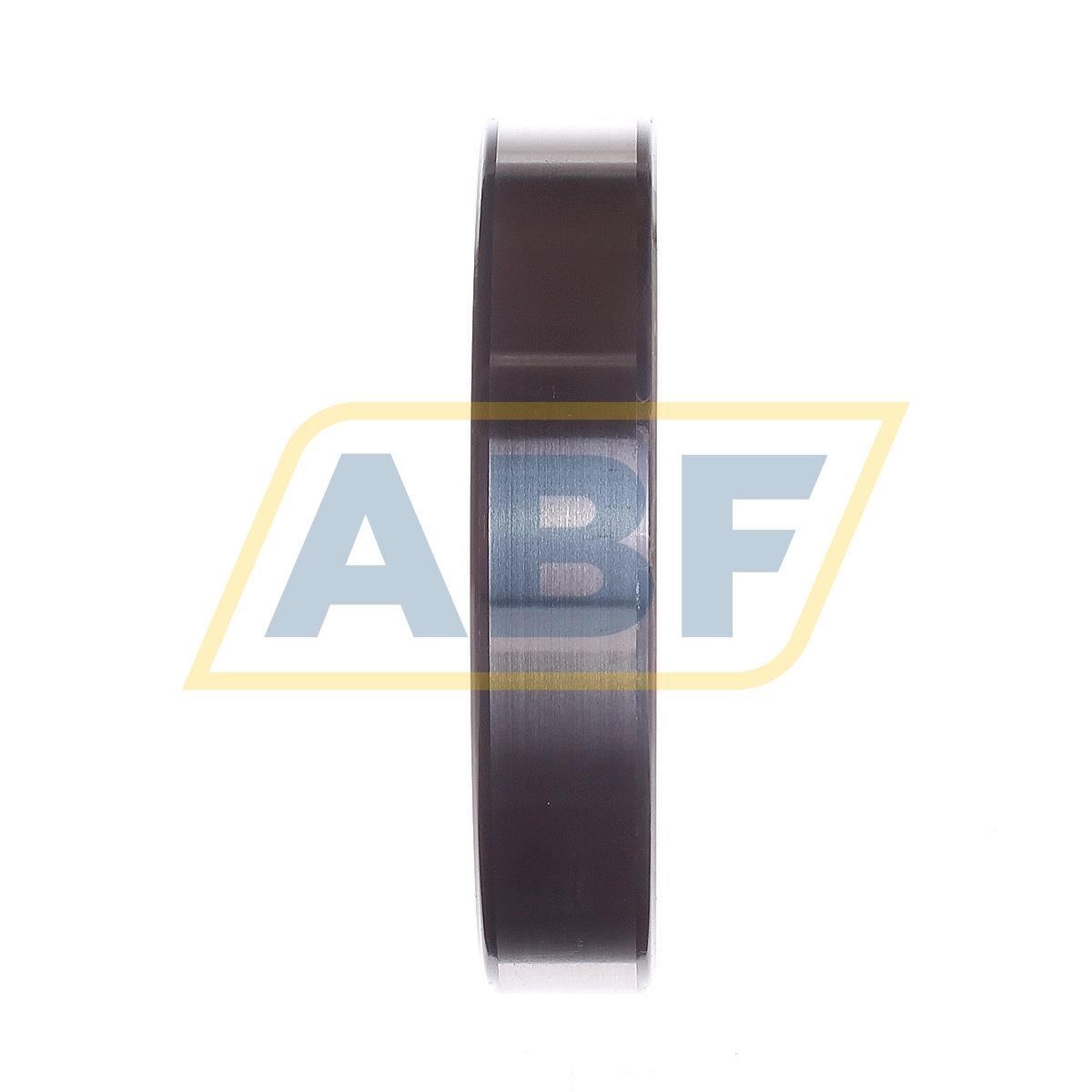

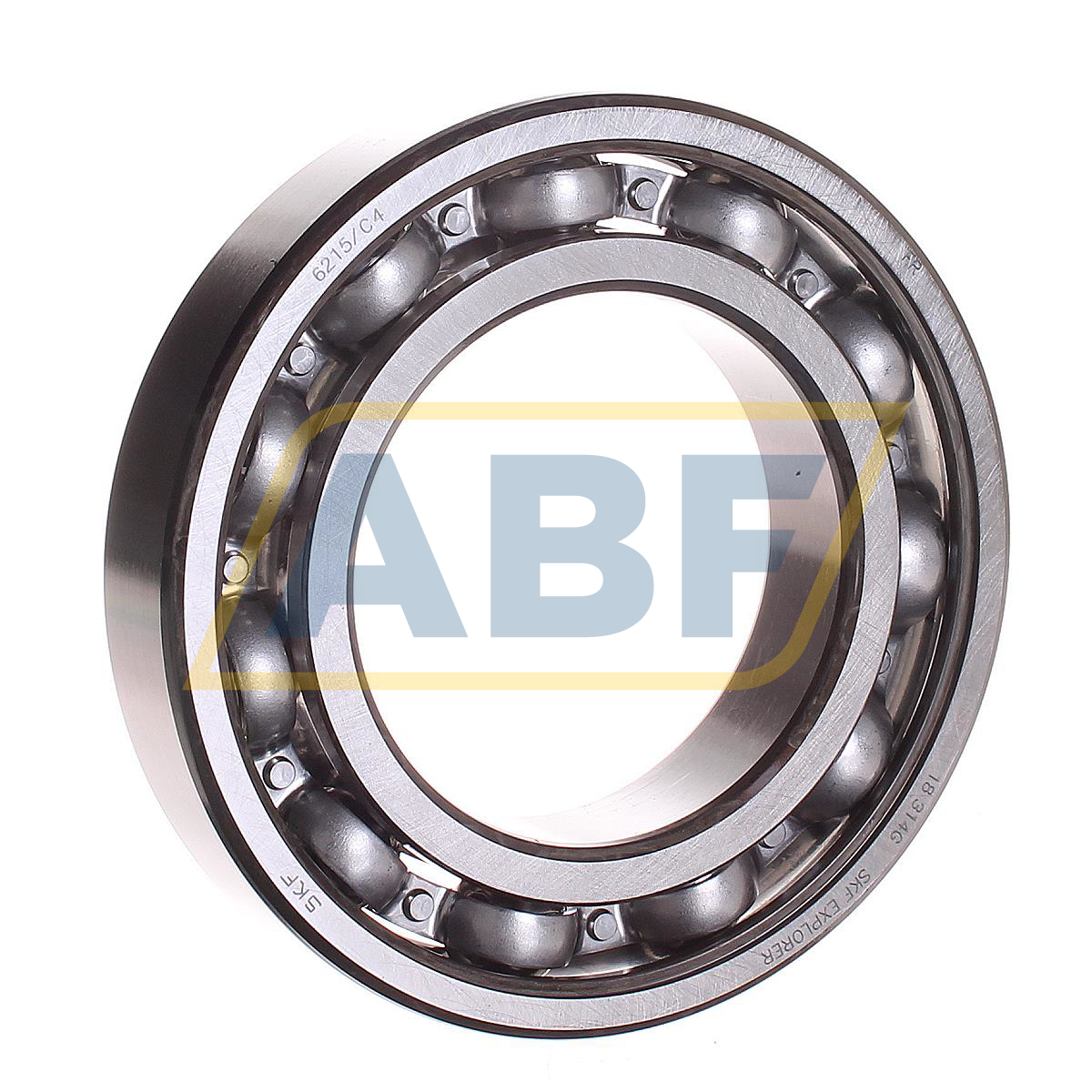

The 6215/C4 SKF has an inner dimension or bore (d) of 75 mm, an outer dimension (D) of 130mm and a width or thickness (B) of 25mm. The 6215/C4 is open on both sides (it has no seals) and has an internal clearance greater than C3 (C4). The weight of the 6219/C3 SKF is 1,45 kg.
Suffix explanation 6219/C4 SKF
C4: Internal clearance greater than C3. The extra internal clearance allows expansion due to high speeds or temperatures.
About SKF
SKF is the most renowned producer of bearings worldwide. SKF stands for outstanding quality and has been a forerunner in the production of bearings and related items for years. By buying a SKF bearing you are sure to buy top quality.
Related products of the 6215/C4 SKF
6219/C3VL0241 SKF INSOCOAT: The 6215M/C4VL0241 INSOCOAT bearing from SKF with special coating on the outer ring (VL0241) to protect against bearing damage and eventual failure due to the passage of electric current
