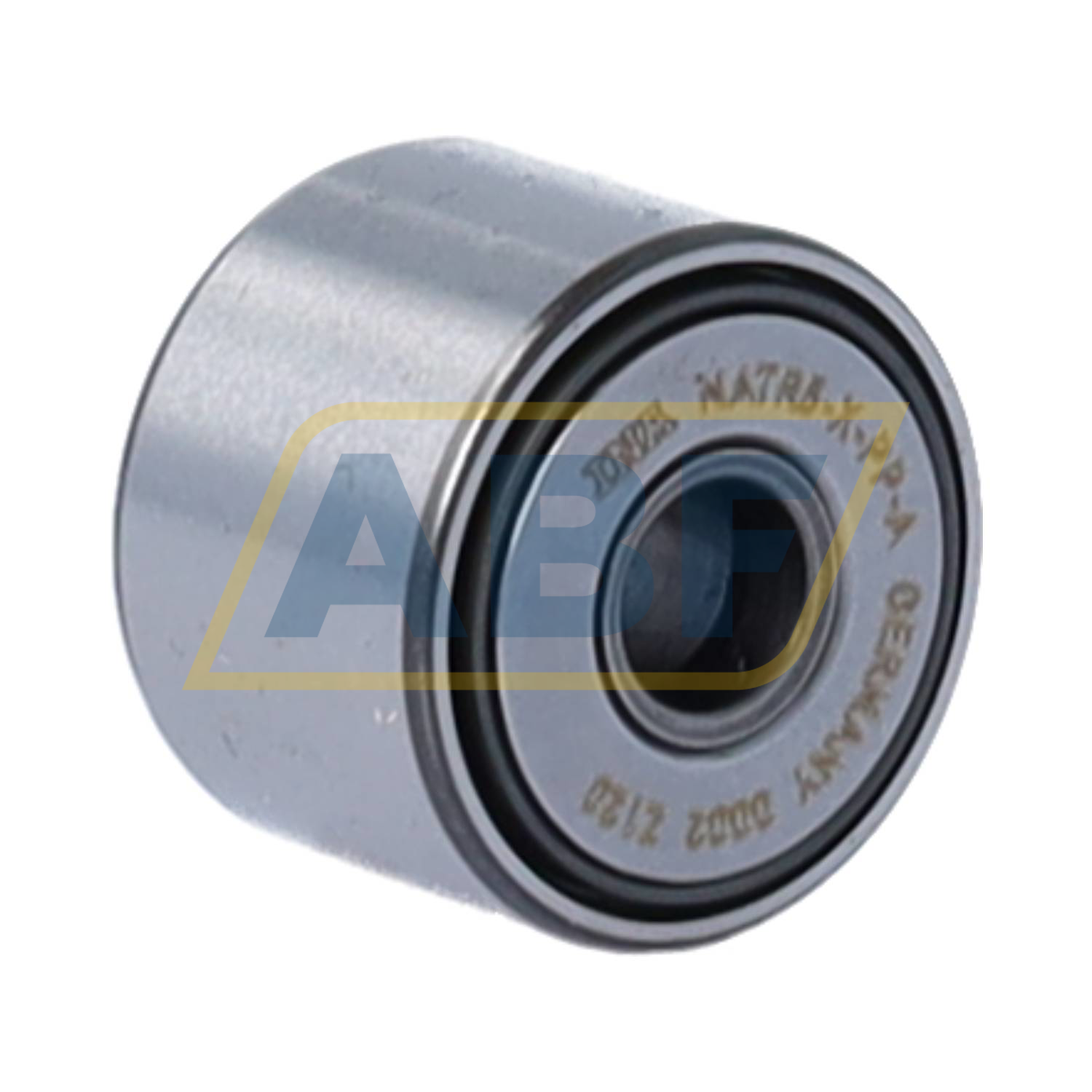

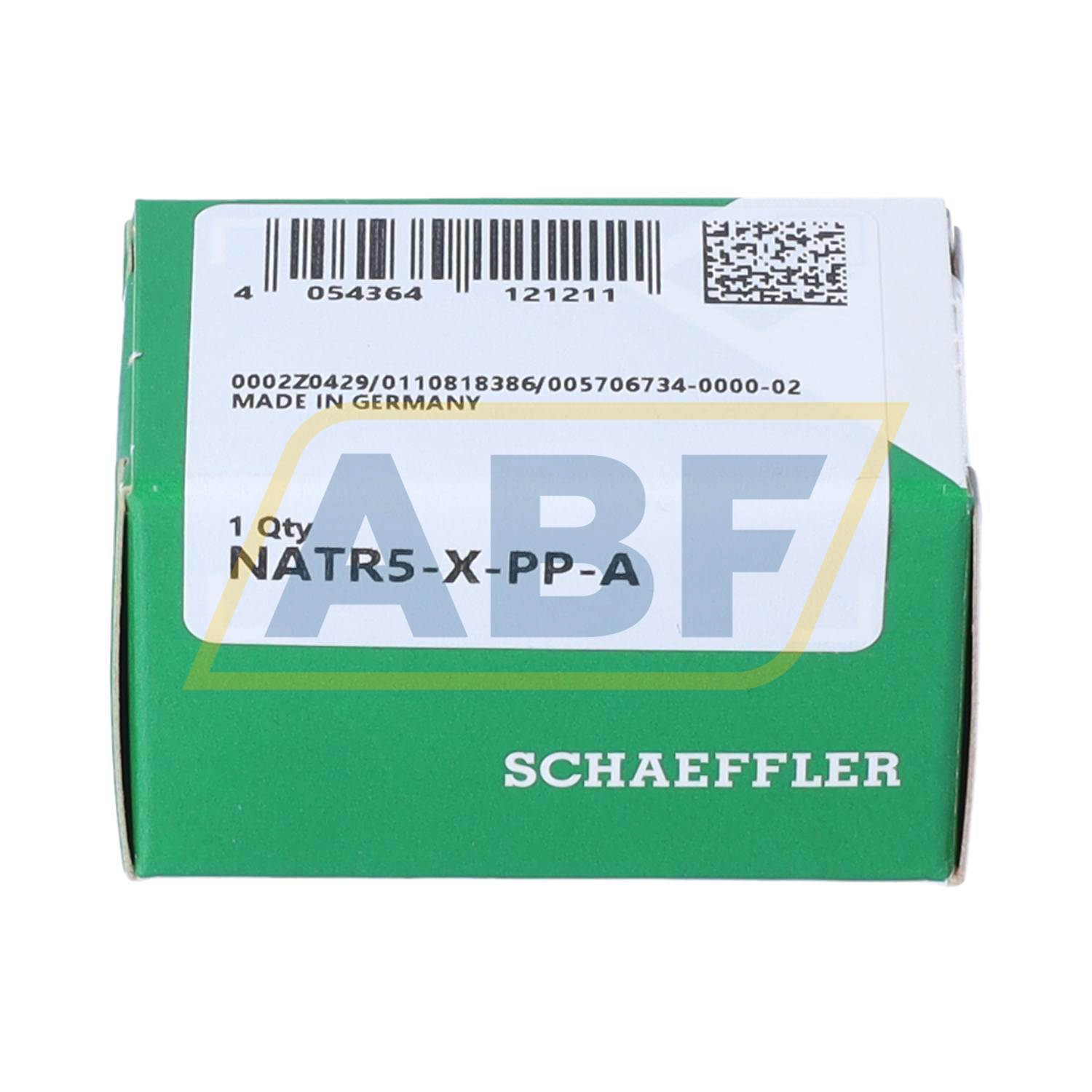

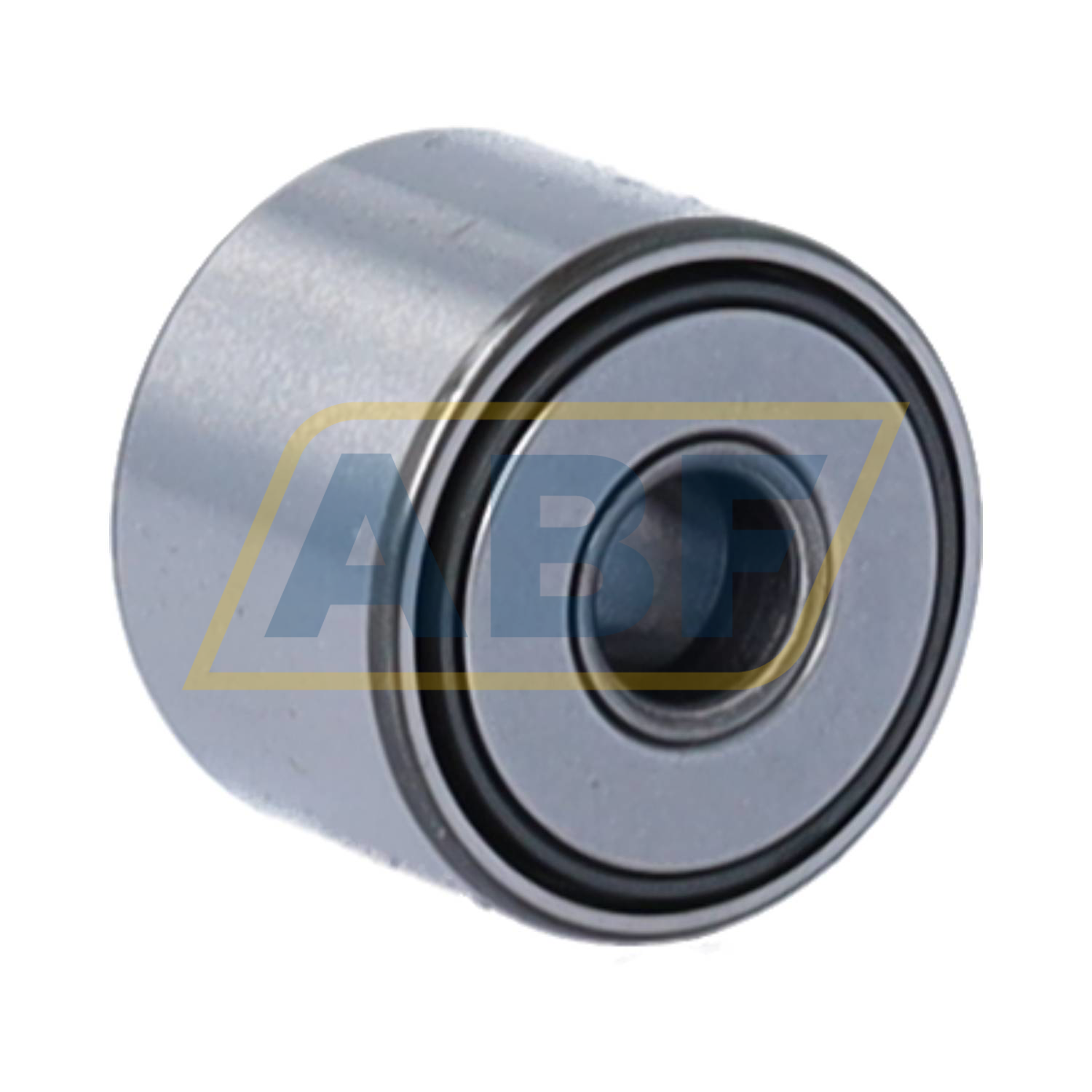

Name: NATR5-X-PP-A INA
Brand: INA

Specifications

Availability 194 pcs
Brand INA
Item Number NATR5-X-PP-A INA
Manufacturer Part Number 0057067340000
EAN 4054364121211
Category Support Roller

Weight and Dimensions

Inner (d) MM 5
Outer (D) MM 16
Width (B) MM 11
Inner (d) Inch 0.1969
Outer (D) Inch 0.6299
Width (B) Inch 0.4331
Weight (kg) 0.014

Product Properties

Seal 2L - LS-seal at Both Sides
Running Surface Cylindrical

Data from Schaeffler (medias)

Width inner ring (B) mm 12
Basic dynamic load rating, radial (C r w) 3200
Basic static load rating, radial (C 0r) 3450
Speed on permanent grease lubrication (n D G) 14000
ECLASS number 23-05-15-01
ECLASS2 number 23-05-15-01
Medias description Yoke type track rollers NATR..-PP, with axial guidance, axial plain washers on both sides

Suffix description

X Cylindrical Running Surface
PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
A Alteration In Internal Construction. Identical To Old Notation

Downloads & Links

Link to manufacturer

Product description

The NATR5-X-PP-A INA is a track roller or support roller with needle rollers. These rolling elements combine high load capacity with a compact design. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The NATR5-X-PP-A INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement track rollers, allowing for higher rotational speeds and less heat generation. Common applications of support rollers include conveyor systems, linear guidance systems, and cam mechanisms.
