NUP410-XL-M1-C3 FAG

Cylindrical Roller Bearing

Loading equivalents

Product properties

Downloads & Links

Details

Category information NUP410-XL-M1-C3 FAG

Single row cylindrical roller bearings with cage, like the NUP410-XL-M1-C3 FAG, are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies.

The outer rings have rigid ribs on both sides or no ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling.

The cage type bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs.

The bearings are separable and are therefore easier to fit and dismantle. Both bearing rings can be given a tight fit by this process.

Applications of NUP410-XL-M1-C3 FAG

X-LIFE: Longer rating and operating life of NUP410-XL-M1-C3 FAG

The NUP410-XL-M1-C3 FAG is according to the latest X-life quality from Schaeffler. They replace, and are interchangeable, with the NUP410-M1-C3 FAG and NUP410M1.C3 FAG.

Bearings of X-life quality have, for example, lower roughness Ra and higher geometrical accuracy of the raceways than comparable designs that are not X-life. As a result, these bearings have higher load carrying capacity and longer life for the same dimensioning. In certain applications, this means that a smaller bearing arrangement can be designed.


Improved X-life product features
Technical advantages X-life products
Why choose X-life quality?

Product specifications NUP410-XL-M1-C3 FAG

NUP410-XL-M1-C3 FAG is a locating bearing

Cylindrical roller bearings NUP are locating bearings. They can support not only high radial forces but also axial forces in both directions and can therefore guide shafts axially in both directions.

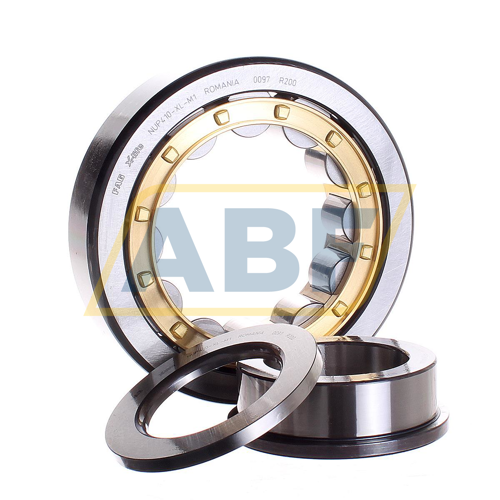

Bearings with rib washer: Type NUP has two ribs on the outer ring and one rigid rib on the inner ring. A loose rib washer is fitted on the opposite side.

Sealing of NUP410-XL-M1-C3 FAG

The bearings are supplied without seals.

Lubrication of NUP410-XL-M1-C3 FAG

They can be lubricated from the end faces using grease or oil.

Operating temperature of NUP410-XL-M1-C3 FAG

Single row cylindrical roller bearings with cage can be used at operating temperatures from –30 °C to +150 °C.

Cage of NUP410-XL-M1-C3 FAG

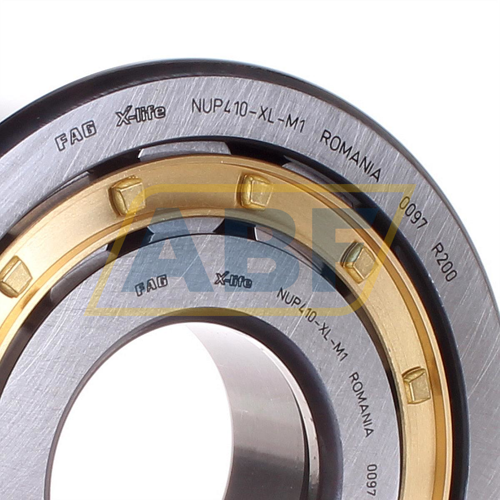

The suffix M1 indicates bearings with brass cages guided by rollers.

Suffix info NUP410-XL-M1-C3 FAG
