Orders placed before 6 p.m. CET will be shipped today
Payment by invoice possible
Track your order with track & trace
Official Schaeffler distributor
Loading equivalents
Specifications
Availability53 pcs
BrandINA

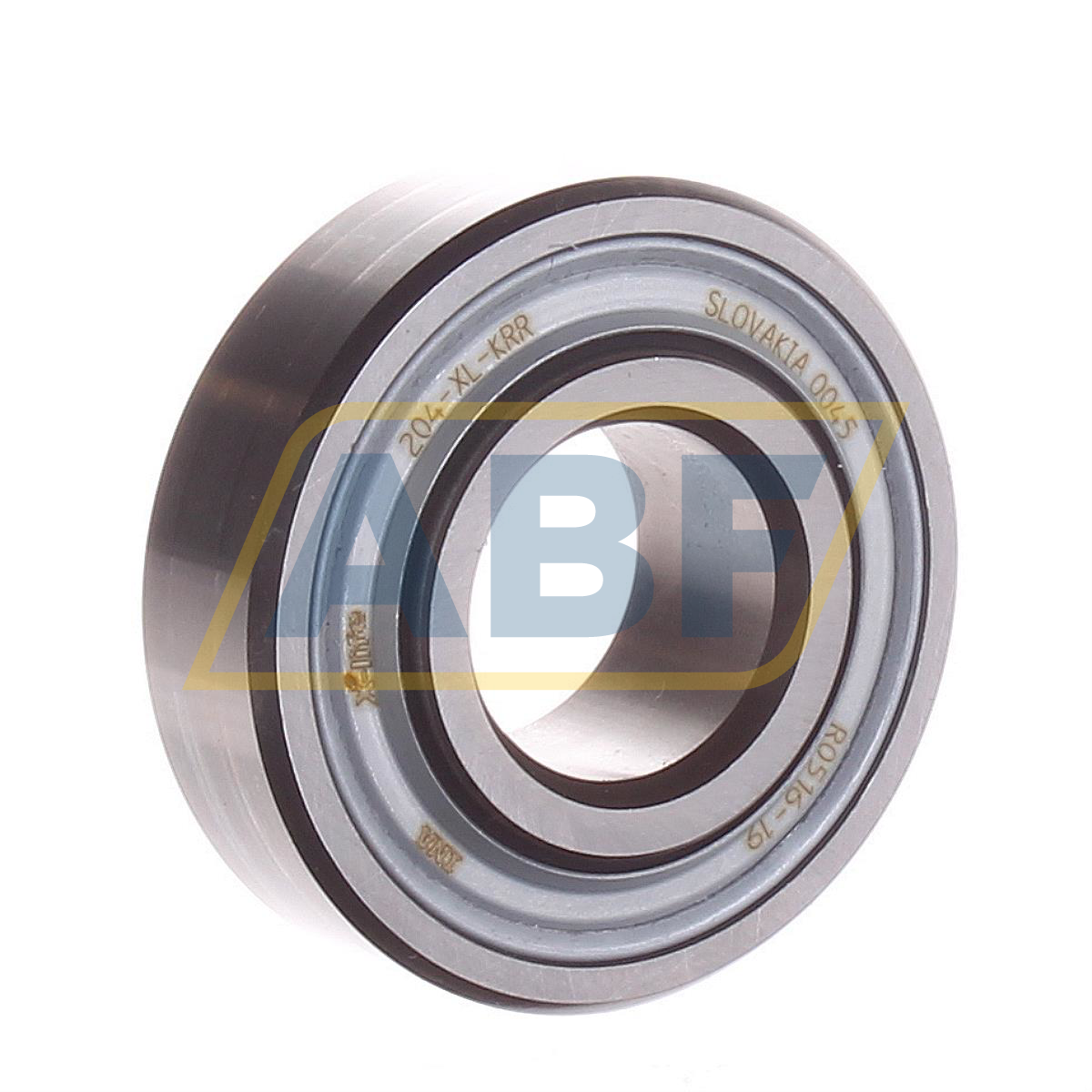

Item Number204-XL-KRR INA
Manufacturer Part Number0008092250000
Also known as
204-KRR
EAN4012802783285
CategoryBearings for Housings
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
47
Width (B) MM
14
Inner (d) Inch
0.7874
Outer (D) Inch
1.8504
Width (B) Inch
0.5512
Weight (kg)
0.1
Product Properties
Seal
2F - Standard Seal for Y-bearings
Lubrication
Standard Lubrication
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Width (b) mm
17,7
Radial Static Load Rating C0r (N)
6600
Radial Dynamic Load Rating Cr (N)
13600
ECLASS number
23-05-08-01
ECLASS2 number
23-05-08-01
Medias description
Radial insert ball bearings 2..-KRR, cylindrical outer ring, inner ring for fit, R seals on both sides
Suffix description
XLX-Life
KRRLip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
