Specifications
Availability54 pcs
BrandISB
Item Number2205 2RS ETN9 ISB
CategorySelf Aligning Ball Bearing Double Row
Weight and Dimensions
Inner (d) MM
25,00
Outer (D) MM
52,00
Width (B) MM
18,00
Inner (d) Inch
0.9843
Outer (D) Inch
2.0472
Width (B) Inch
0.7087
Weight (kg)
0.163
Product Properties
Bore
C - Cylindrical Bore
Seal
2RS - Rubber Seal on Two Sides
Cage Type
P - Plastic Molded Cage
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Suffix description
2RSRubber Seals At Each Side Of The Bearing
EModified Internal Design
TN9Cage Of Glass Fibre Reinforced Polyamide 6,6
Product description

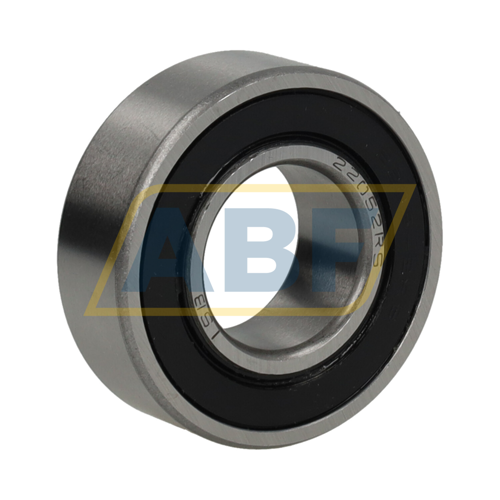

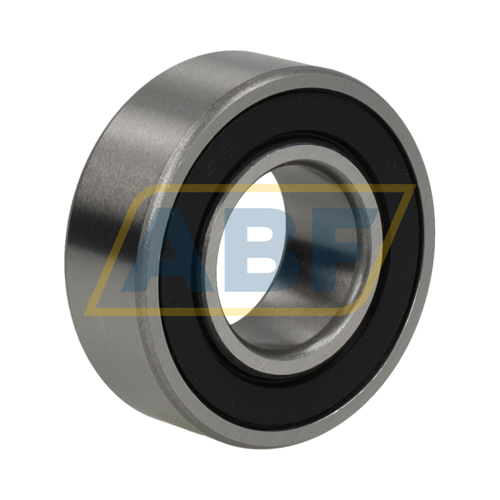

The 2205 2RS ETN9 ISB belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type with double-sided seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.
These features make the 2205 2RS ETN9 ISB highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.
