Specifications
Availability31 pcs
BrandSKF
Item Number22216E SKF
EAN7316576652523
CategorySpherical Roller Bearing
Weight and Dimensions
Inner (d) MM
80,00
Outer (D) MM
140,00
Width (B) MM
33,00
Inner (d) Inch
3.1496
Outer (D) Inch
5.5118
Width (B) Inch
1.2992
Weight (kg)
1.97
Product Properties
Bore
C - Cylindrical Bore
Lubrication Enhancement
W33 - Lubrication Groove and 3 Holes
Seal
No Seal
Cage Type
S - Steel or Standard Cage
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution
Non Vibrating Screen Execution
Product description

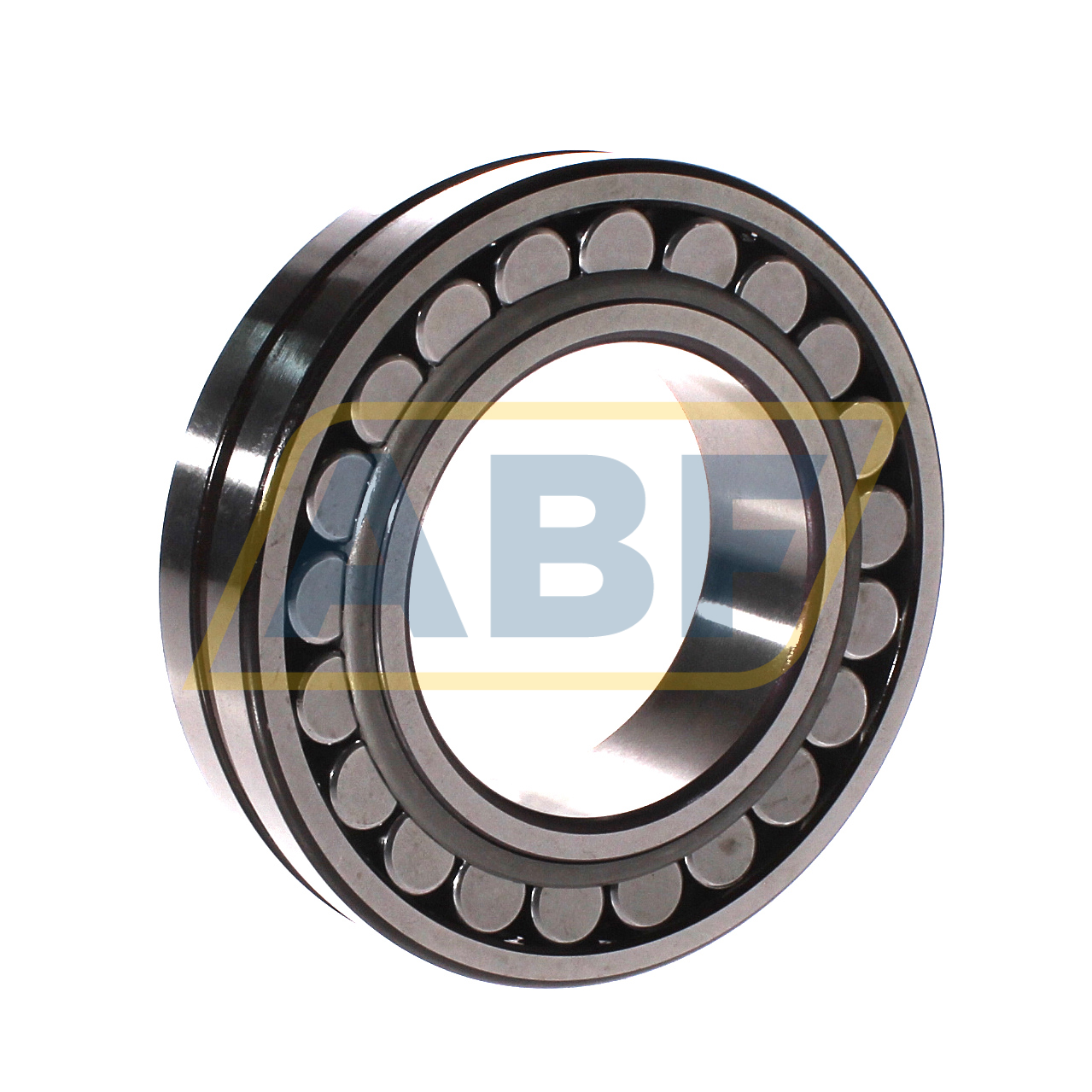

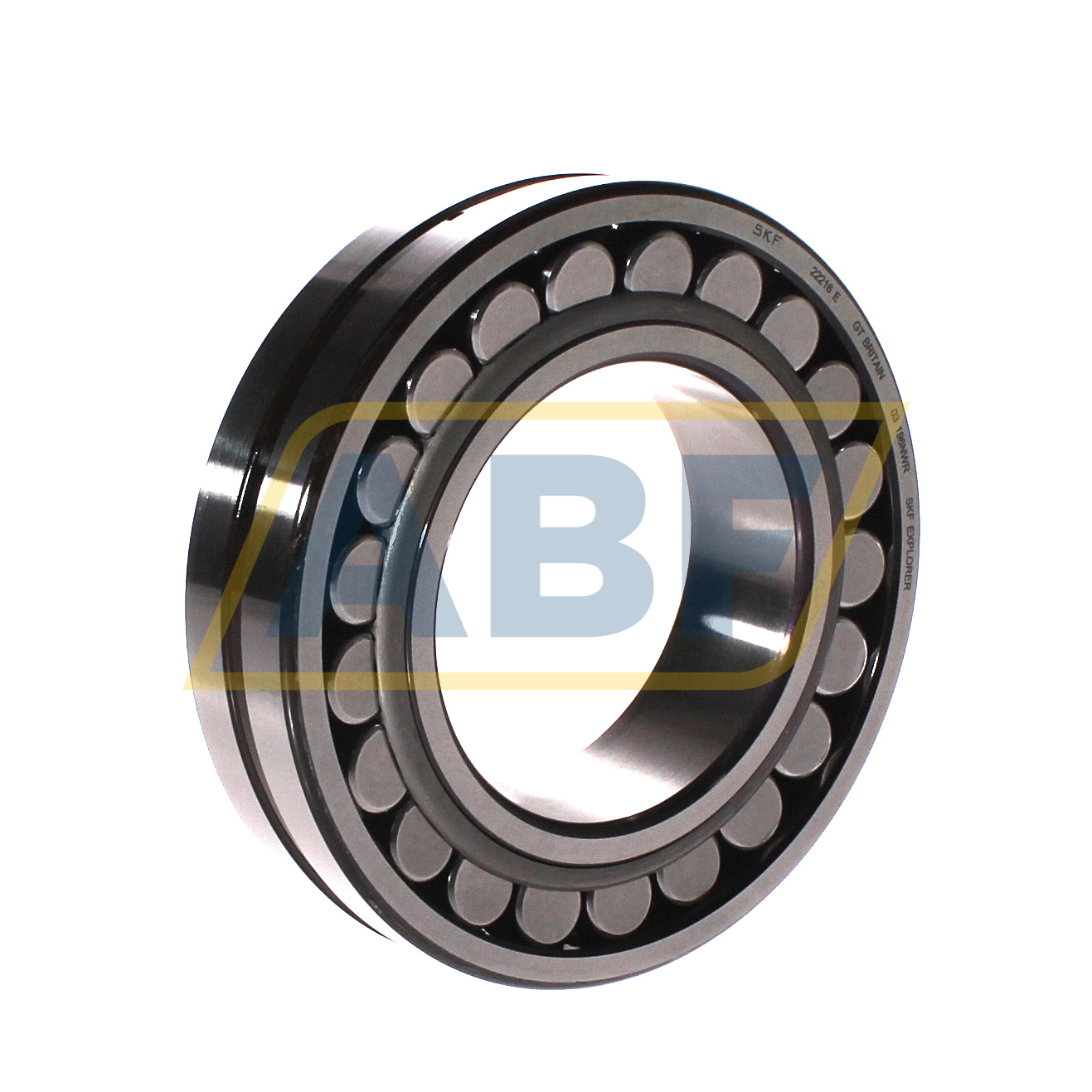

The 22216E SKF is a spherical roller bearing with an open design. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.
