Specifications
Availability1 pc
BrandSKF
Item Number2309M/VQ335 SKF
Also known as
2309M
EAN7316570816921
CategorySelf Aligning Ball Bearing Double Row
Weight and Dimensions
Inner (d) MM
45
Outer (D) MM
100
Width (B) MM
36
Inner (d) Inch
1.7717
Outer (D) Inch
3.937
Width (B) Inch
1.4173
Weight (kg)
1.314
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
M - Brass Cage
Radial Internal Play
Cn Normal Internal Play
Precision
VQ - Dimensional And/Or Accuracy
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Suffix description
MMachined Brass Cage, Ball Centered. VQ(335)=Quality And Tolerances Other Than Standard
Product description

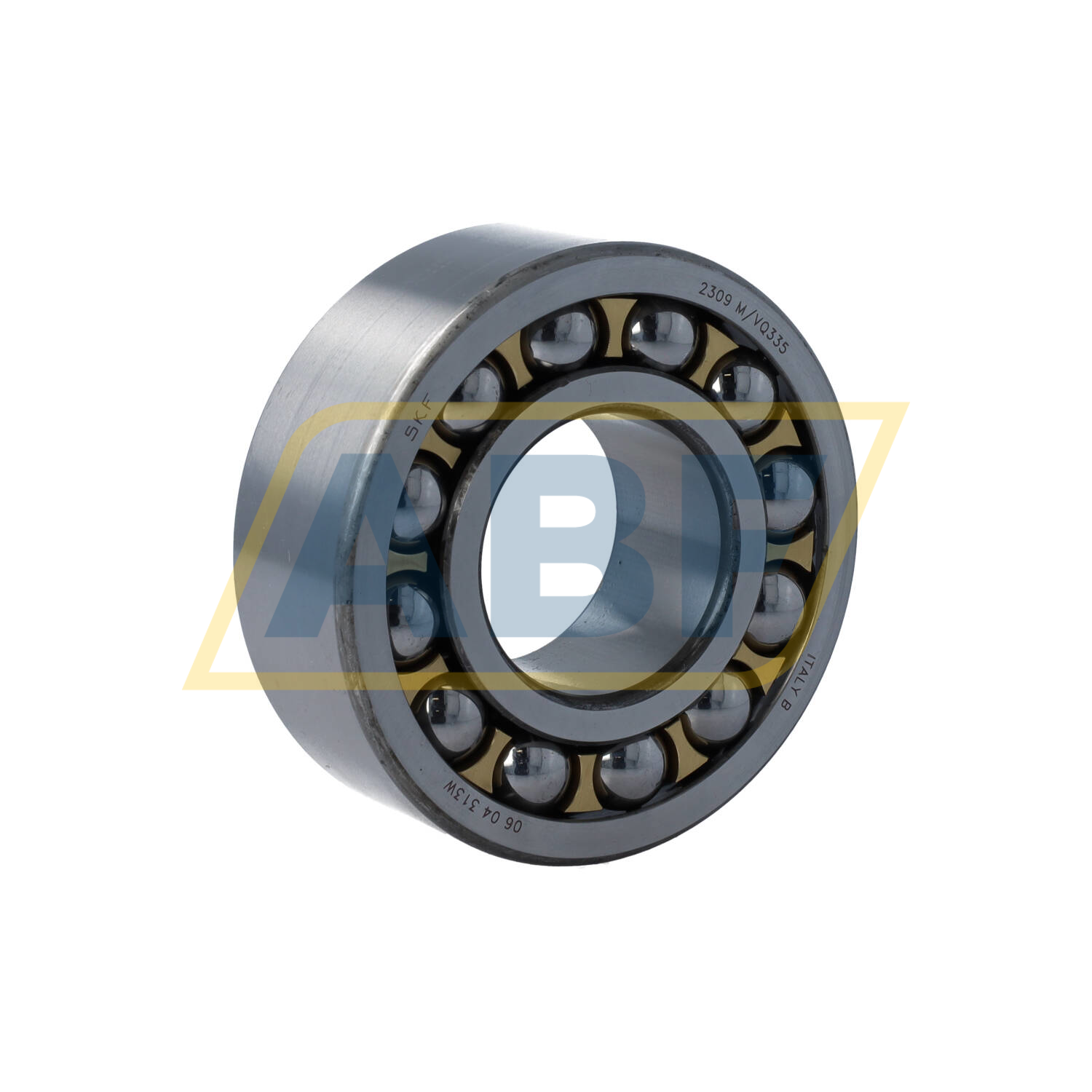

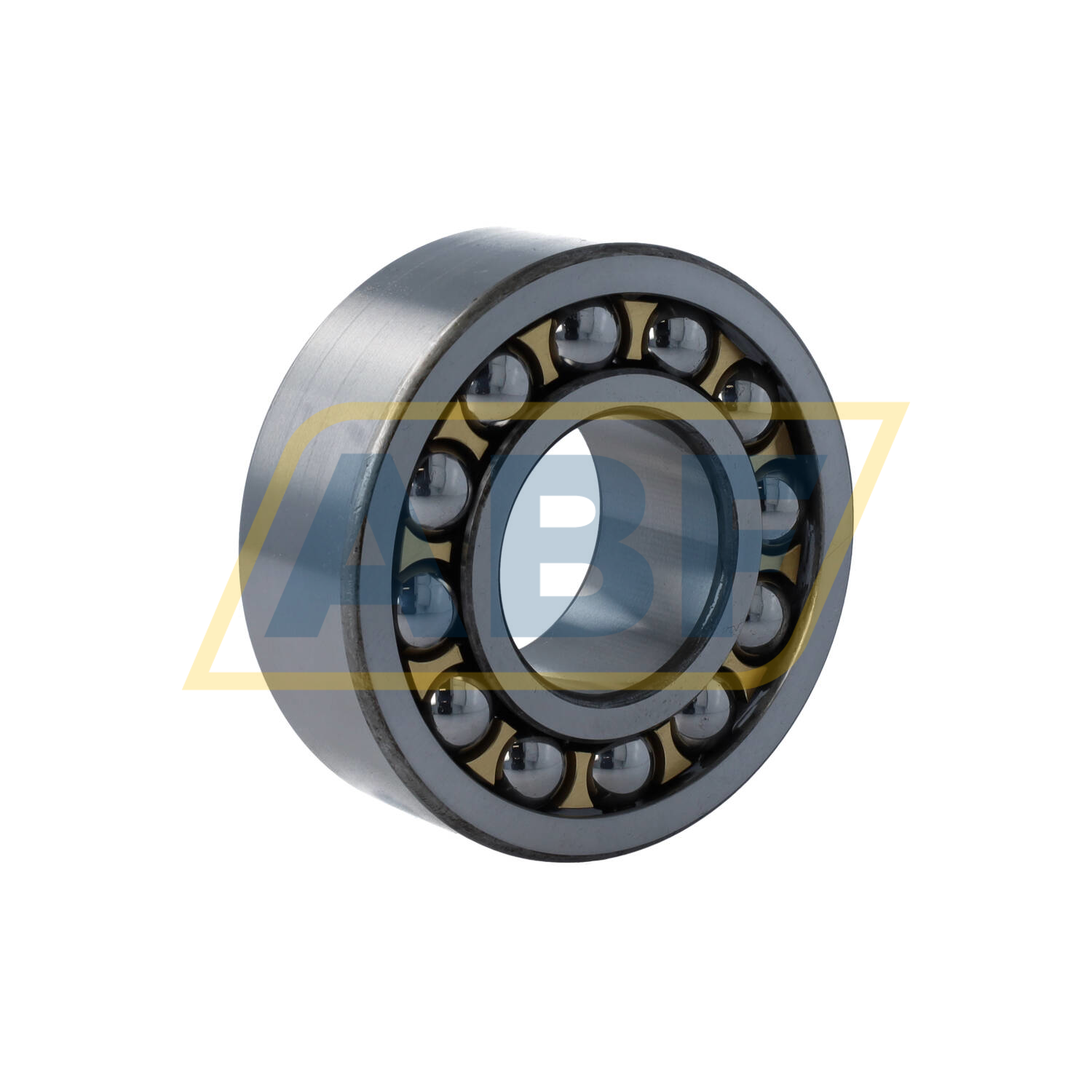

The 2309M/VQ335 SKF belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type without a seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.
These features make the 2309M/VQ335 SKF highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.
