Loading equivalents
Specifications
Availability2 pcs
BrandTimken
Item Number25577-99401 Timken
Also known as
25577/25521
25577/521
25577-20024/25521-20024
EAN0053893782287
CategoryTapered Roller Bearing Single Row
Weight and Dimensions
Inner (d) MM
42,88
Outer (D) MM
83,06
Width (B) MM
23,81
Inner (d) Inch
1.688
Outer (D) Inch
3.27
Width (B) Inch
0.9375
Weight (kg)
0.563
Product Properties
Precision
Standard Precision
Suffix description
99401Inspection Code. (Can Be Used As Standard)
Product description

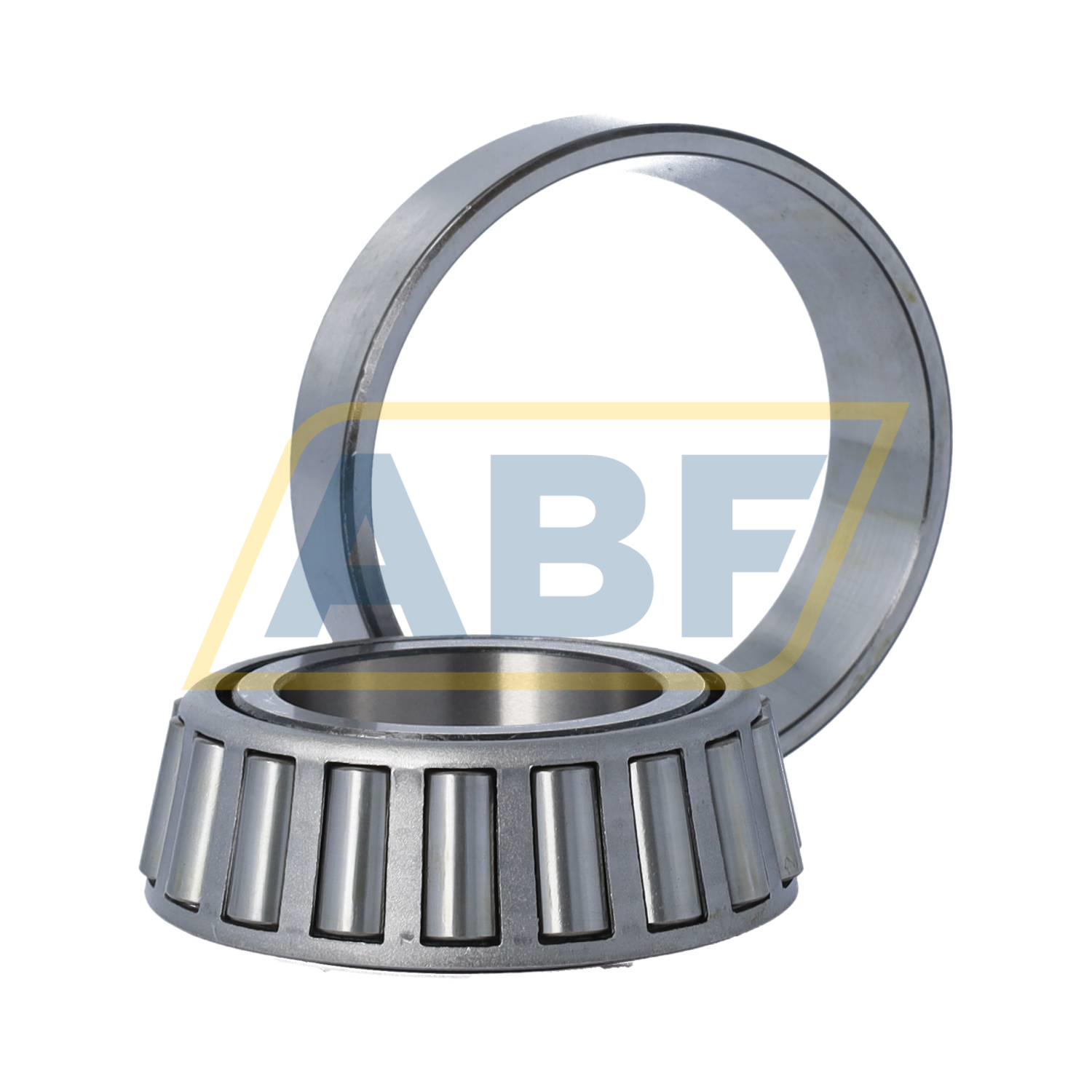

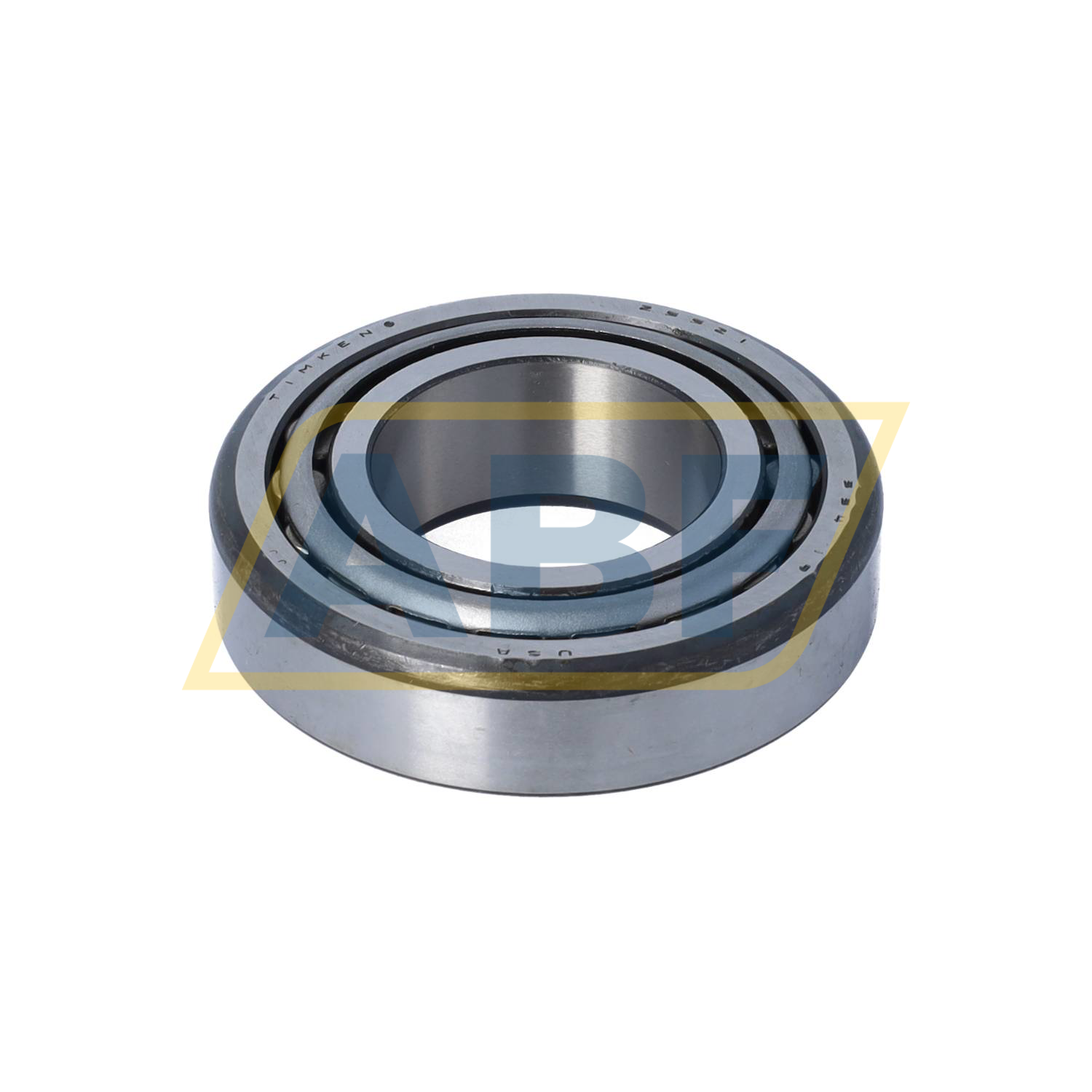

The 25577-99401 Timken is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

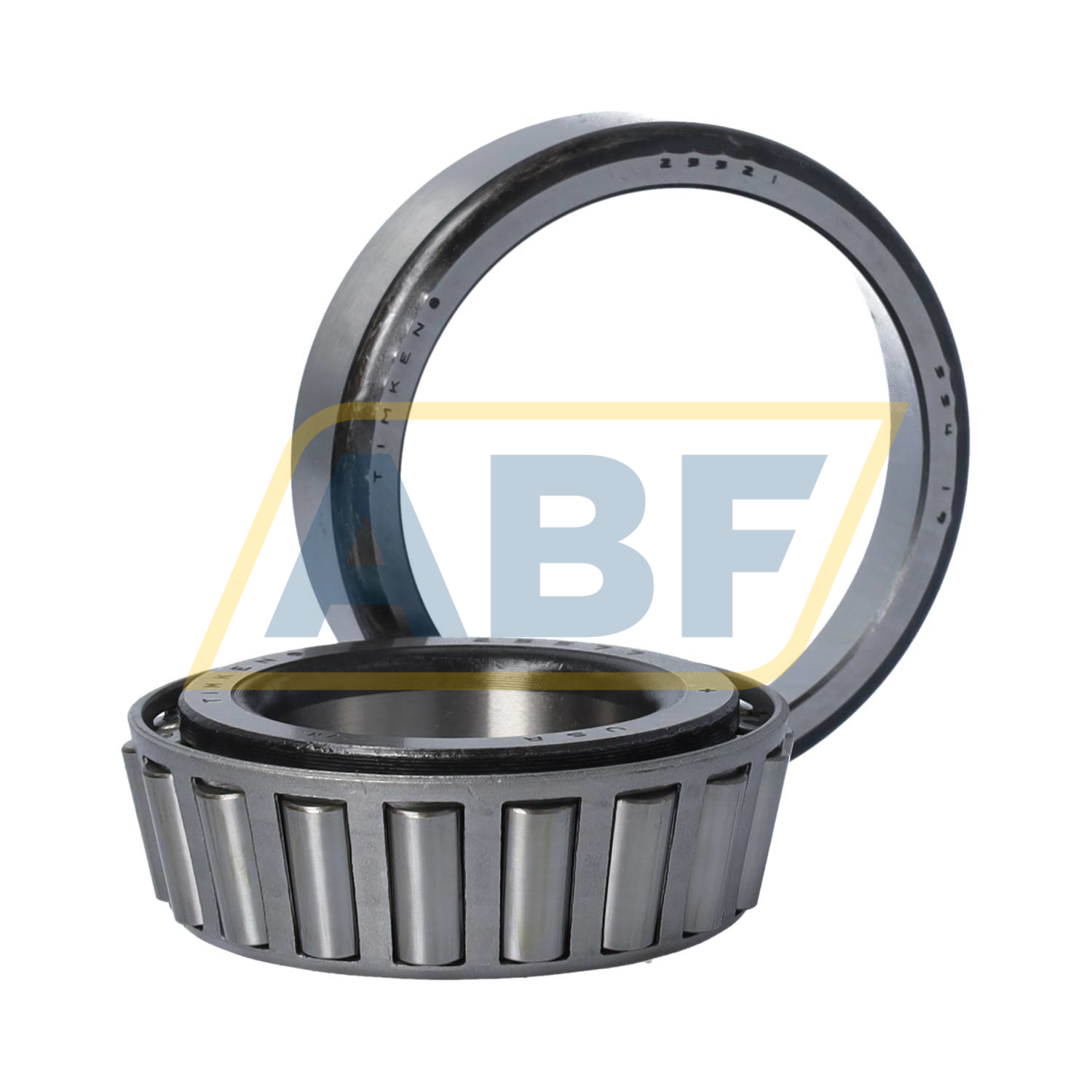

The 25577-99401 Timken is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.
