Loading equivalents
Specifications
Availability1 pc
BrandNSK

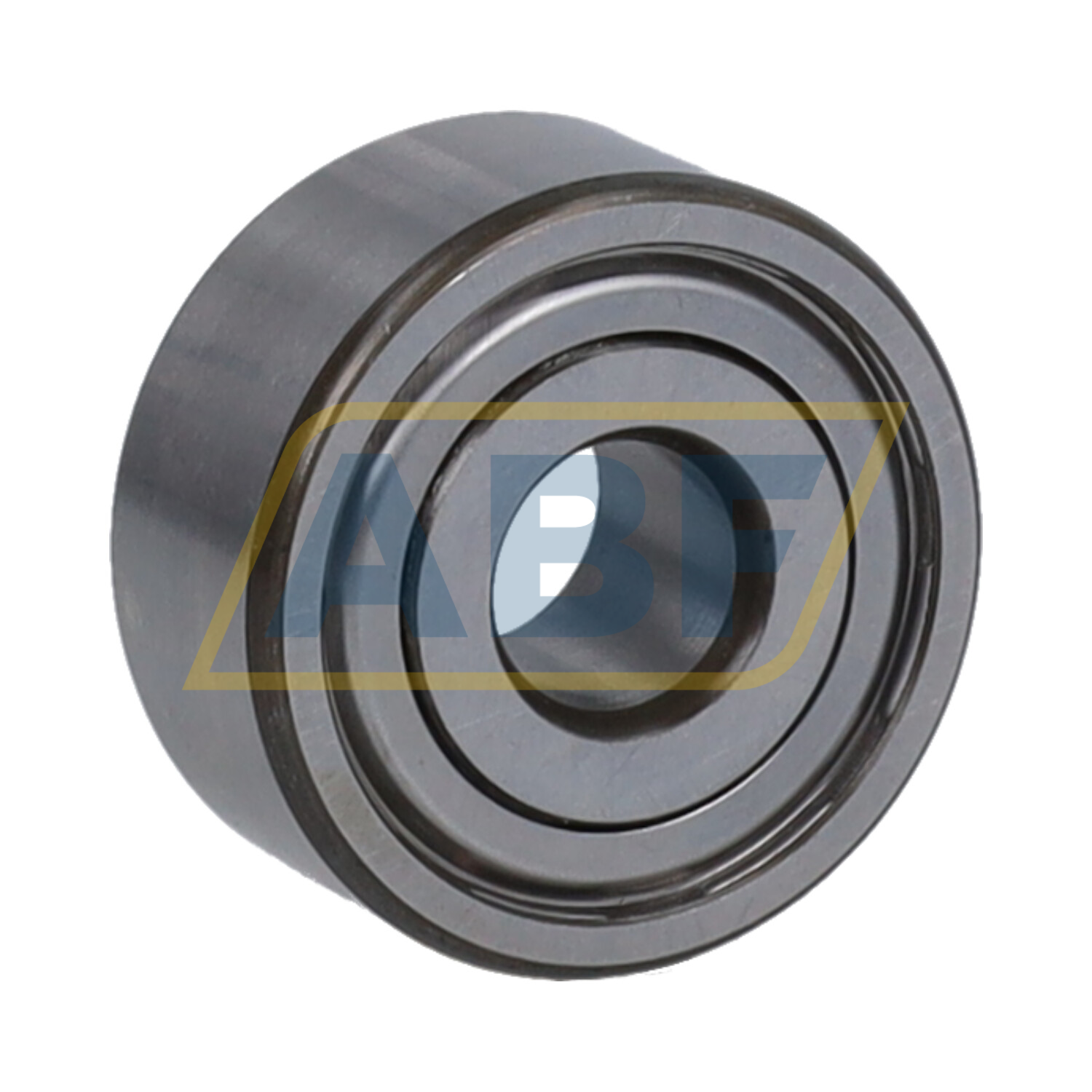

Item Number3200B-2ZRTNGC3 N YRLN5 NSK
Also known as
3200B-2ZRTNGC3
3200B-2ZTNC3
3200-BB-2Z-TVH-C3
CategoryAngular Contact Ball Bearing Double Row
Weight and Dimensions
Inner (d) MM
10
Outer (D) MM
30
Width (B) MM
14
Inner (d) Inch
0.3937
Outer (D) Inch
1.1811
Width (B) Inch
0.5512
Weight (kg)
0.0532
Product Properties
Bore
C - Cylindrical Bore
Seal
ZZ/2Z - Steel Seal on Two Sides
Cage Type
P - Plastic Molded Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Lubrication
Higher and Lower Temperature Grease
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ring
Standard
Suffix description
B25º Contact Angle
2ZRMetal Shields At Each Side Of The Bearing
TNGSolid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
C3Internal Clearance Larger Than Normal
NNormal Filling 35%
YRLLubricant, Operating Temperature -30 ~ 120°C
5Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled
