Specifications
Availability18 pcs
BrandTimken
Item Number387A/382S Timken
Also known as
387A-99403
SET75
CategoryTapered Roller Bearing Single Row
Weight and Dimensions
Inner (d) MM
57,15
Outer (D) MM
96,84
Width (B) MM
25,4
Inner (d) Inch
2.25
Outer (D) Inch
3.8125
Width (B) Inch
1
Weight (kg)
0.61
Product Properties
Precision
Standard Precision
Suffix description
S(Cone/Inner Race And Cup/Outer Race) Special Feature Bearing (Non-Interchangeable With Bearings Having Same Basic Part Numbers)
Product description

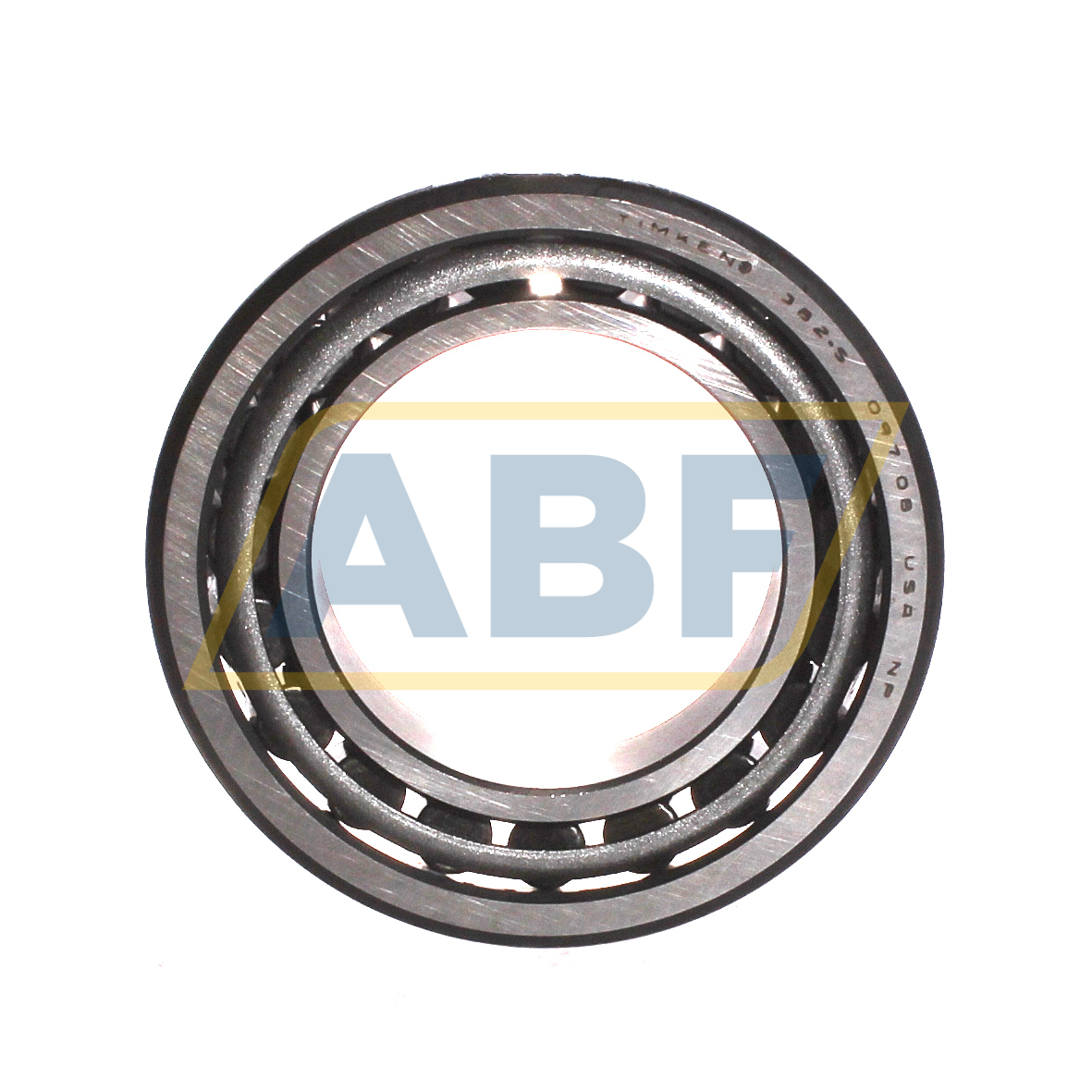

The 387A/382S Timken is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

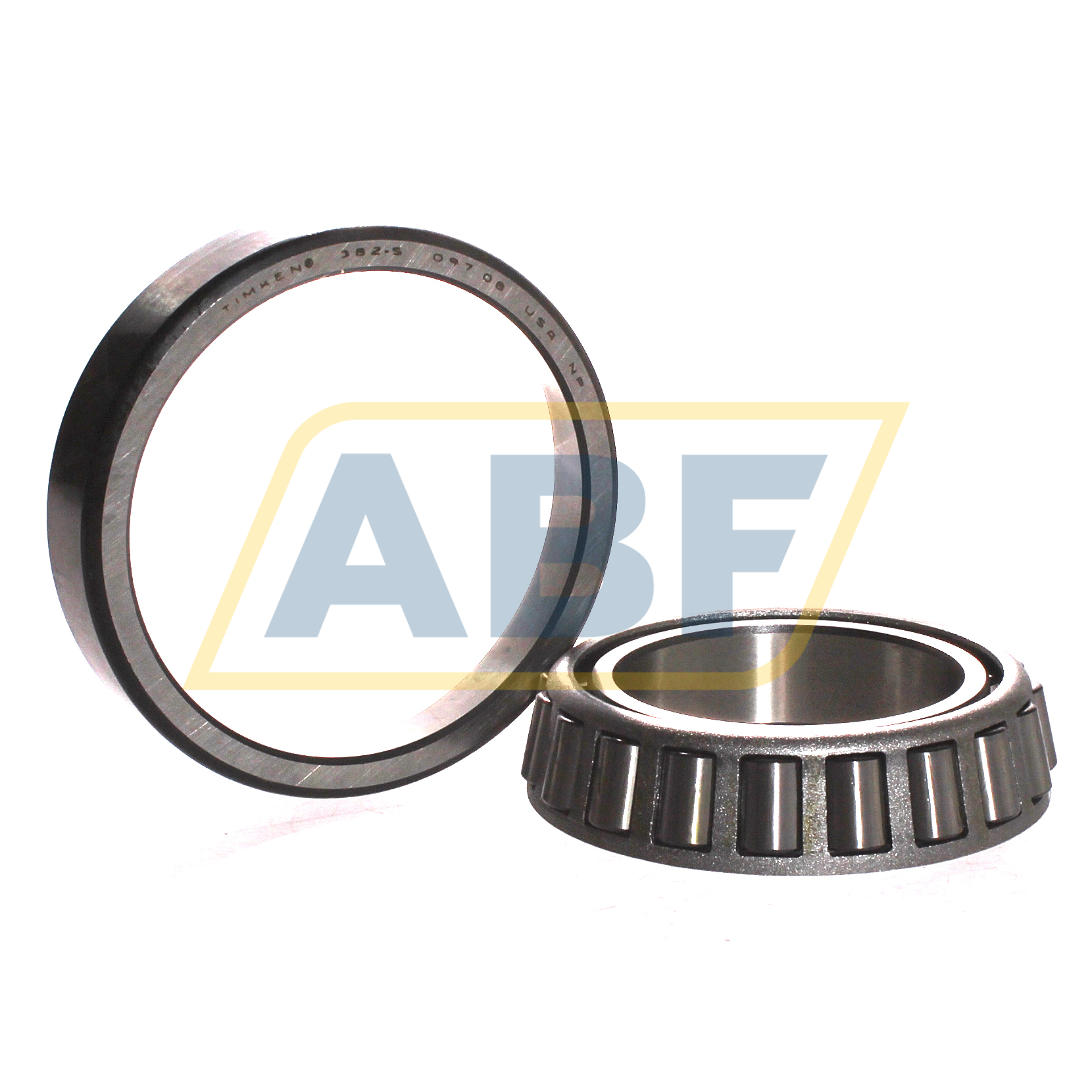

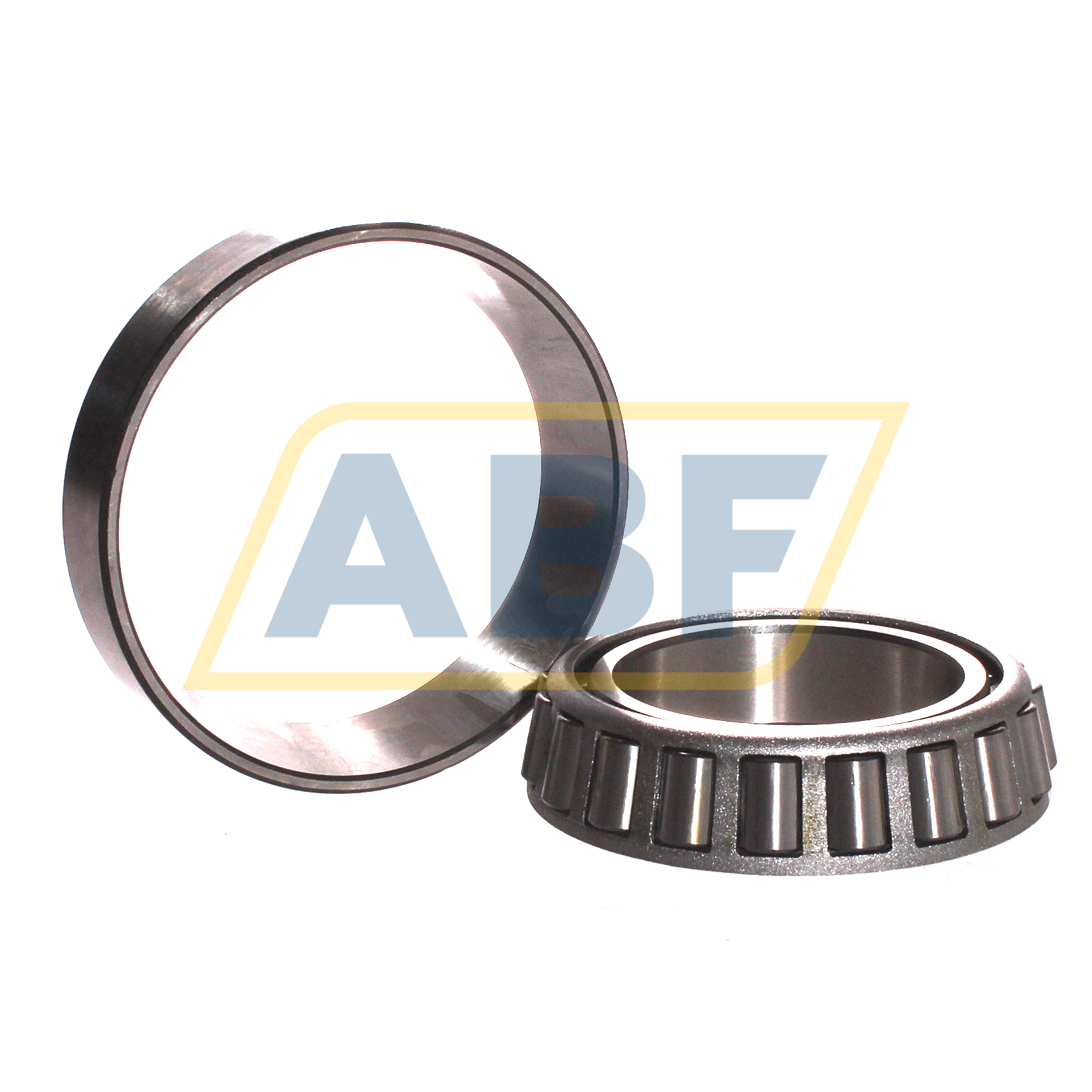

The 387A/382S Timken is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.
