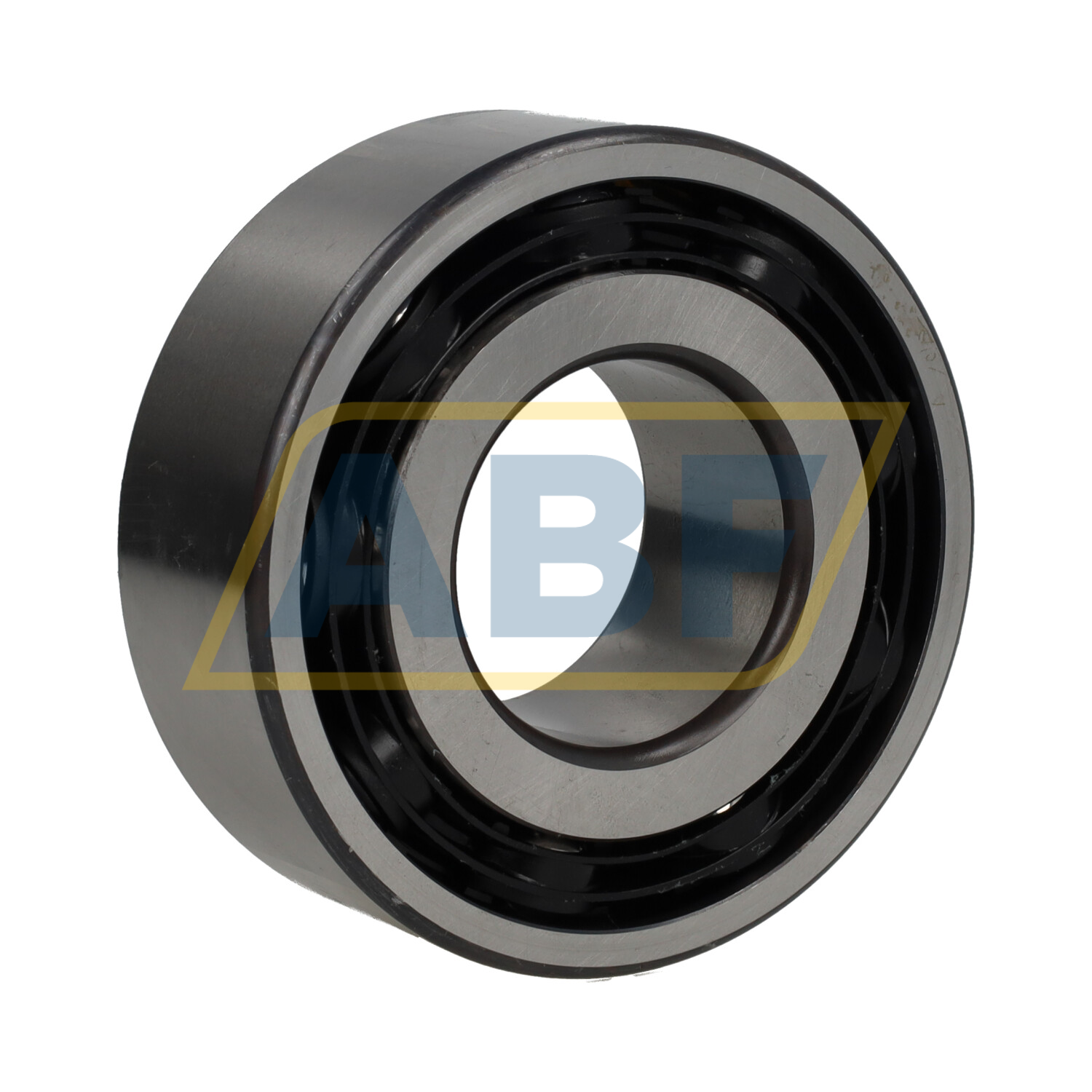

4310-B-TVH FAG

Specifications

• Availability 4 pcs expected on 16 Jun
• Brand FAG
• Item Number 4310-B-TVH FAG
• Also known as 0167145040000

• EAN 4012801197205
• Category Deep Groove Ball Bearing Double Row

Weight and Dimensions

• Inner (d) MM 50
• Outer (D) MM 110
• Width (B) MM 40
• Inner (d) Inch 1.9685
• Outer (D) Inch 4.3307
• Width (B) Inch 1.5748
• Weight (kg) 1.79

Product Properties

• Bore C - Cylindrical Bore
• Seal No Seal
• Cage Type P - Plastic Molded Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Radial Static Load Rating C0r (N) 76000
• Radial Dynamic Load Rating Cr (N) 92000
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearings 43..-B, main dimensions to DIN 625-3, double row
