Also known as
BA2B445535AE
DAC357233B-IW
GB12094S04
CategoryAngular Contact Ball Bearing Double Row
Weight and Dimensions
Inner (d) MM
35,00
Outer (D) MM
72,00
Width (B) MM
33,00
Inner (d) Inch
1.3780
Outer (D) Inch
2.8346
Width (B) Inch
1.2992
Weight (kg)
0.548
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
P - Plastic Molded Cage
External Modification
No External Modification
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ring
Split inner ring
Product description

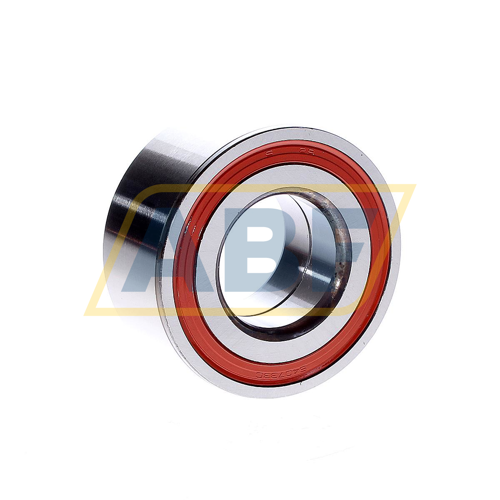

The 548083 FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.
The 548083 FAG has a split inner ring. This bearing type combines a large number of balls with a large contact angle. This design makes the bearing suitable for higher axial loads in both directions. Bearings with split inner rings generally have a tighter fit than bearings with single-piece inner rings.
