Specifications

• Availability 2,572 pcs
• Brand FAG

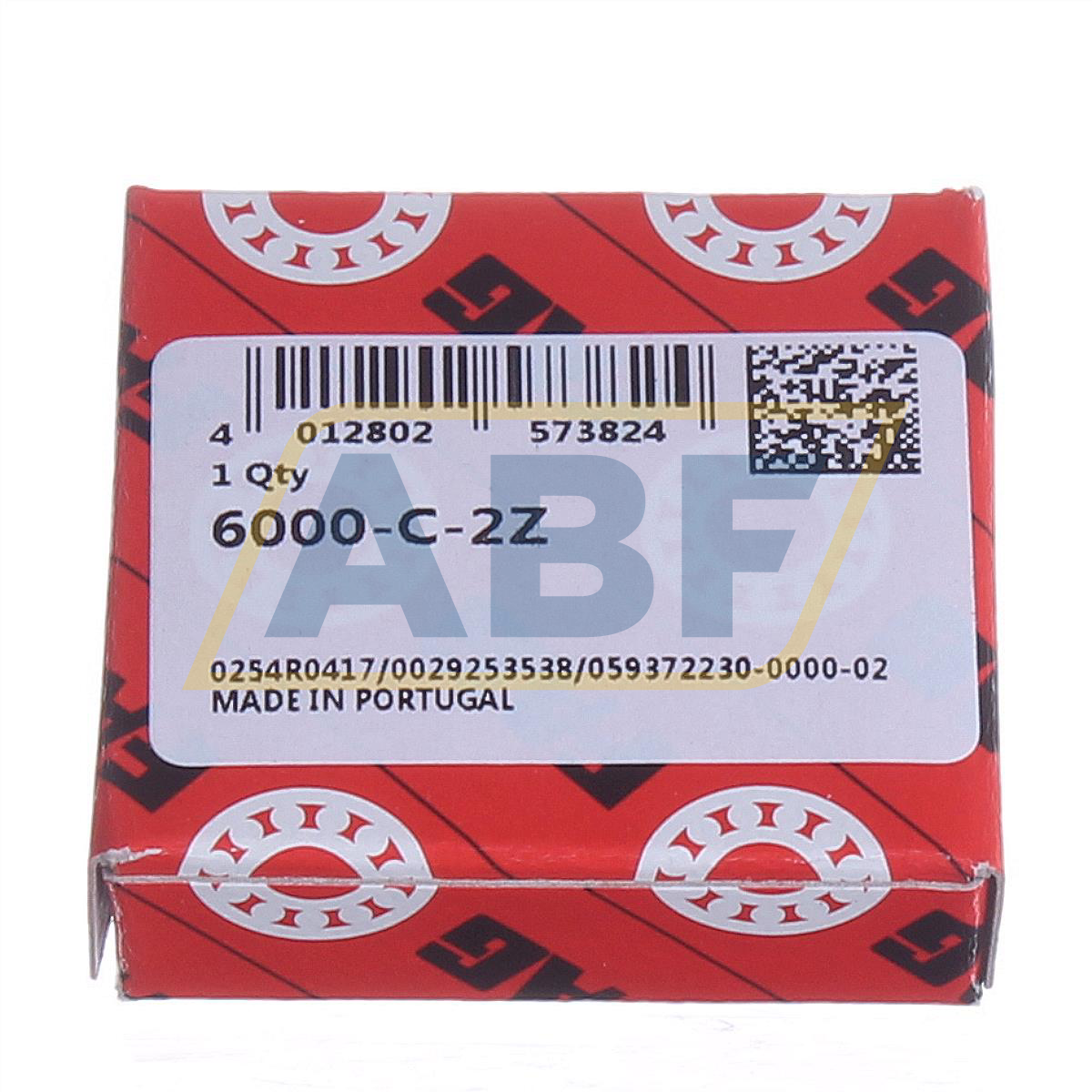

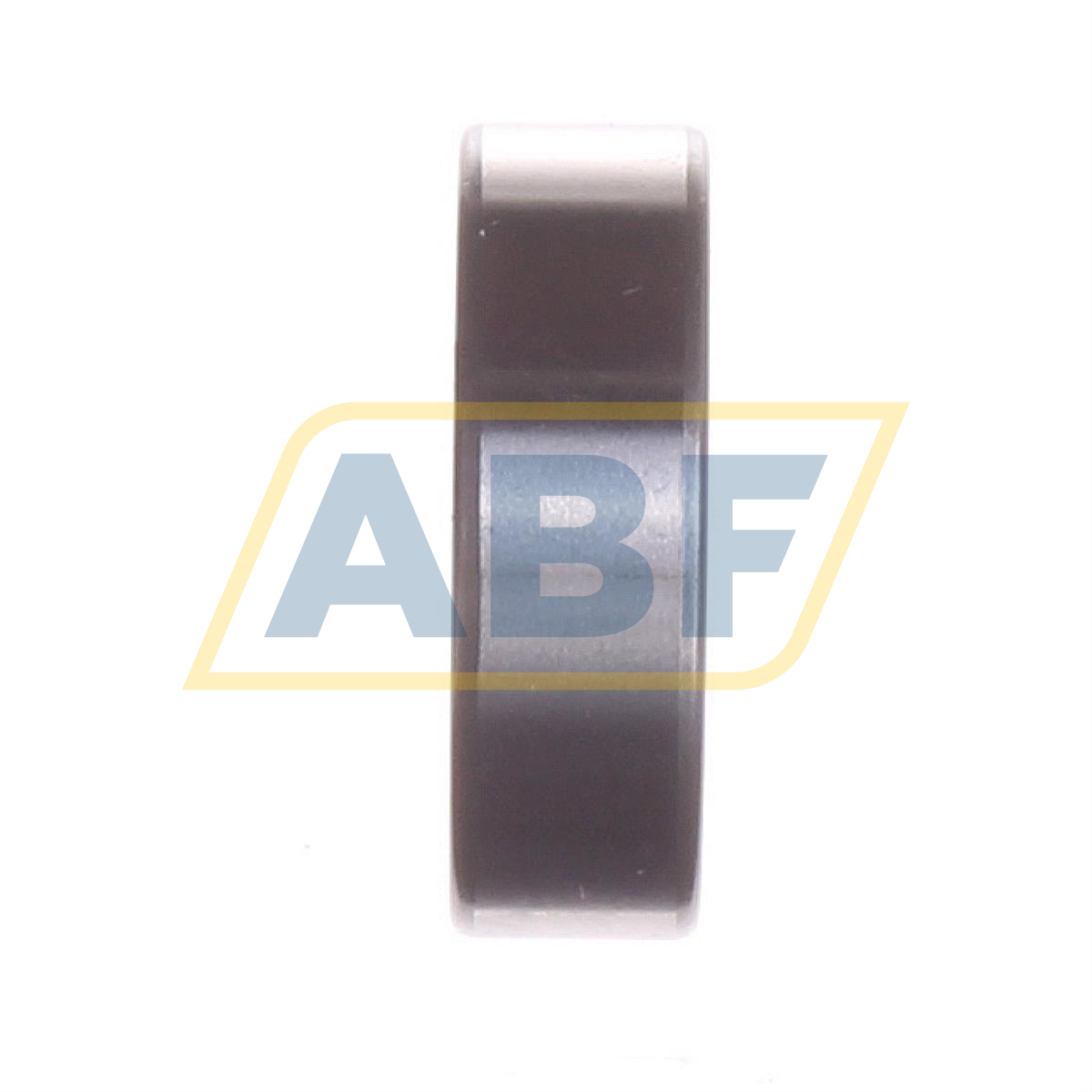

• Item Number 6000-C-2Z FAG
• Manufacturer Part Number 0593722300000
• Also known as 6000-2Z
  6000ZZ

• EAN 4012802383249
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 10
• Outer (D) MM 26
• Width (B) MM 8
• Inner (d) Inch 0.3937
• Outer (D) Inch 1.0236
• Width (B) Inch 0.315
• Weight (kg) 0.018

Product Properties

• Bore C - Cylindrical Bore
• Seal ZZ/2Z - Steel Seal on Two Sides
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 8
• Radial Static Load Rating C0r (N) 1970
• Radial Dynamic Load Rating Cr (N) 5000
• Limiting speed (n G) 38000
• Reference speed (n ϑr) 30000
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearings 60..-C-2Z, modified internal construction (Generation C), main dimensions to DIN 625-1, gap seals on both sides
