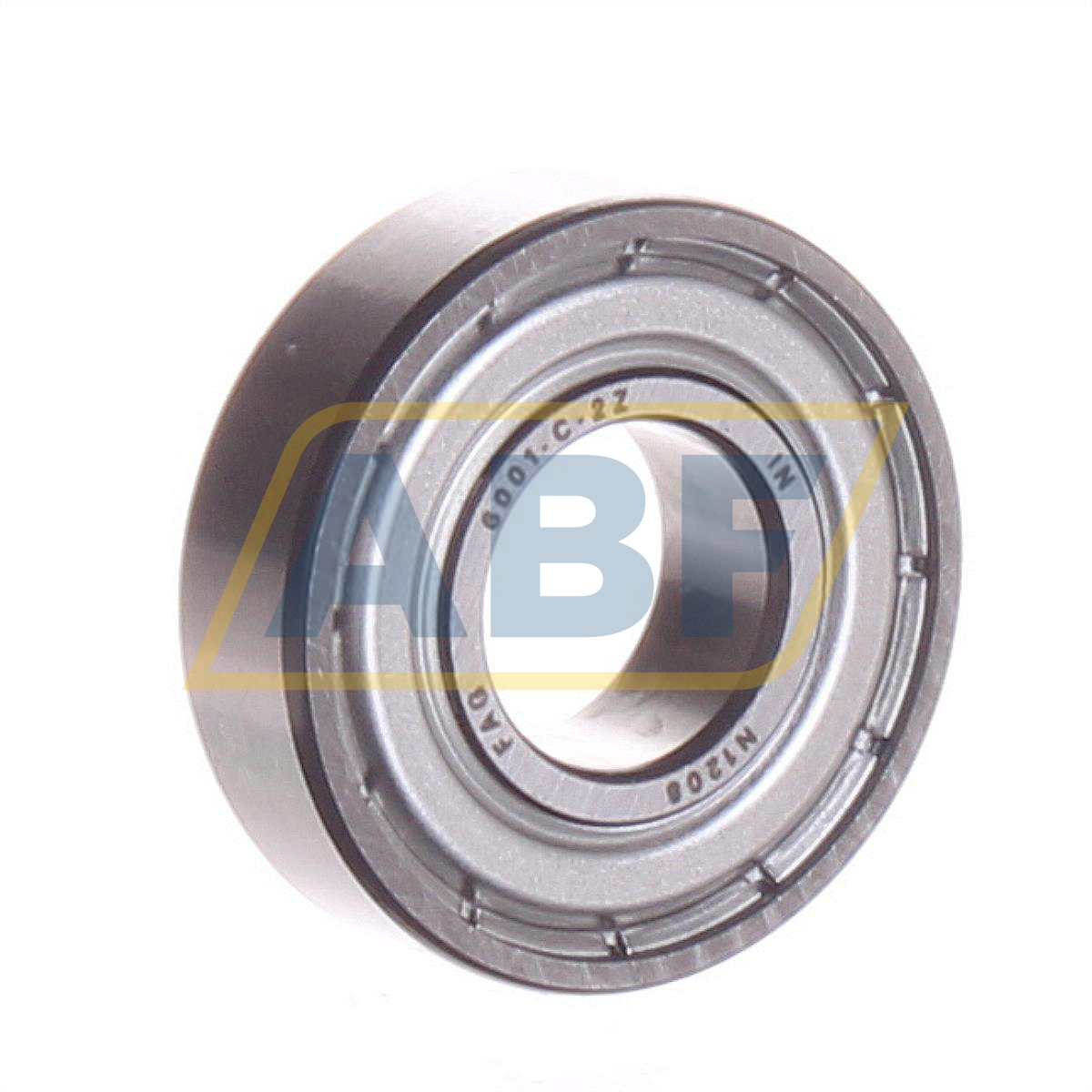

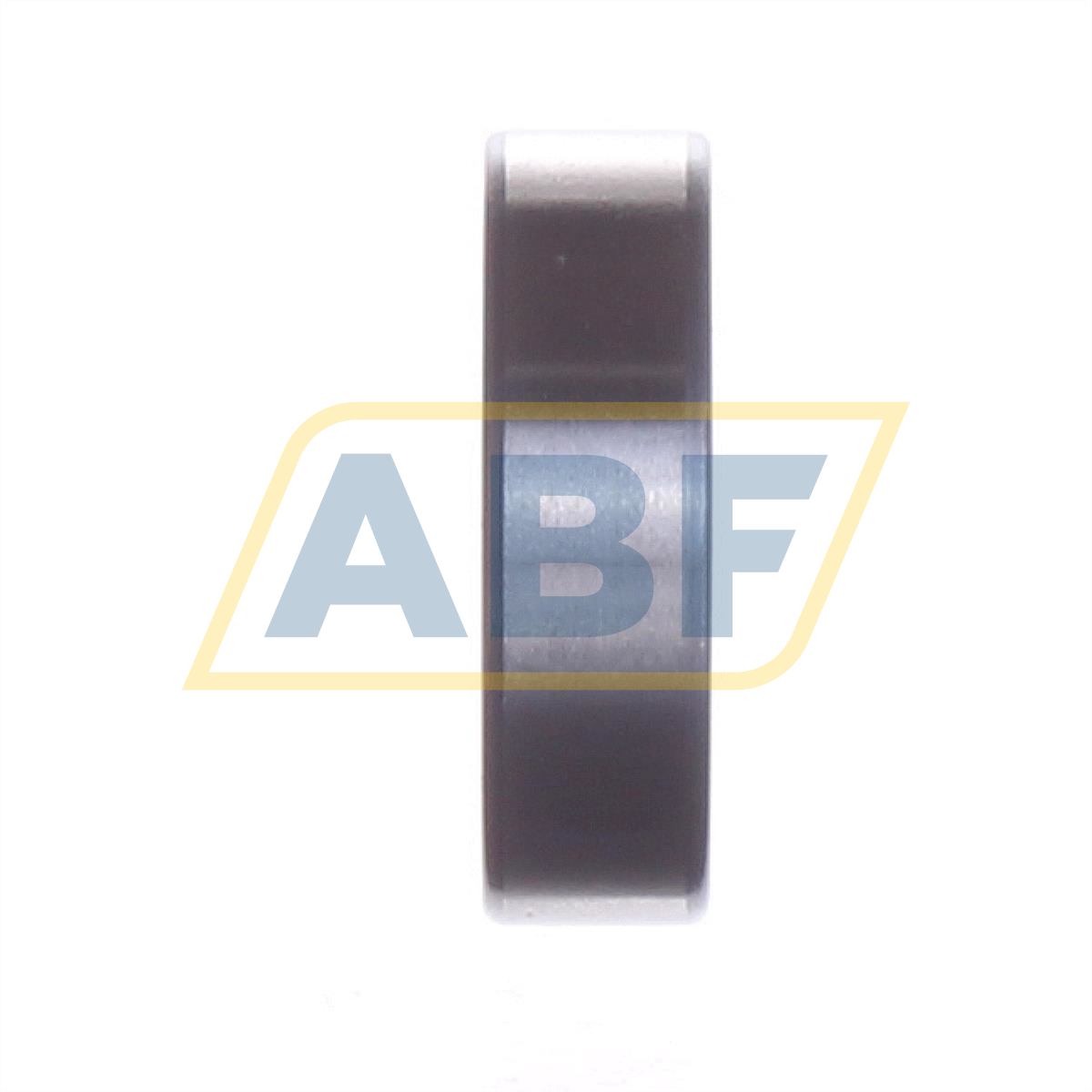

Specifications

• Availability 2,597 pcs
• Brand FAG
• Item Number 6001-C-2Z FAG
• Manufacturer Part Number 0592077360000
• Also known as 6001-2Z

• EAN 4012802360820
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 12
• Outer (D) MM 28
• Width (B) MM 8
• Inner (d) Inch 0.4724
• Outer (D) Inch 1.1024
• Width (B) Inch 0.315
• Weight (kg) 0.022

Product Properties

• Bore C - Cylindrical Bore
• Seal ZZ/2Z - Steel Seal on Two Sides
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 8
• Radial Static Load Rating C0r (N) 2370
• Radial Dynamic Load Rating Cr (N) 5900
• Limiting speed (n G) 36000
• Reference speed (n ϑr) 26000
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearings 60..-C-2Z, modified internal construction (Generation C), main dimensions to DIN 625-1, gap seals on both sides
