Specifications

• Availability 7,706 pcs
• Brand FAG

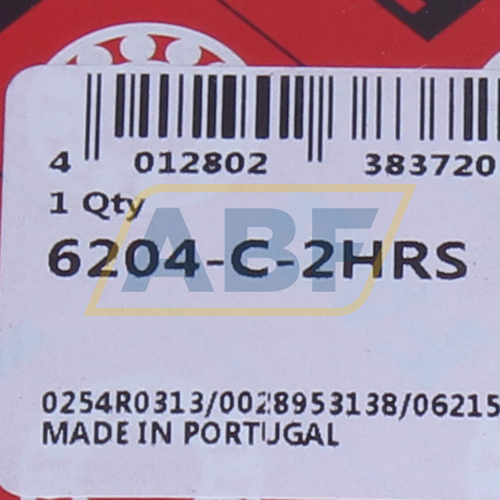

• Item Number 6204-C-2HRS FAG
• Manufacturer Part Number 0621565860000
• Also known as 204PP
  6204-2RS
  6204-2RS1
  6204-2RSH
  6204-2RSR

• EAN 4012802383720
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 20
• Outer (D) MM 47
• Width (B) MM 14
• Inner (d) Inch 0.7874
• Outer (D) Inch 1.8504
• Width (B) Inch 0.5512
• Weight (kg) 0.1062

Product Properties

• Bore C - Cylindrical Bore
• Seal 2RH - High Speed Low Friction Seal on Two Sides
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 14
• Radial Static Load Rating C0r (N) 6600
• Radial Dynamic Load Rating Cr (N) 13900
• Limiting speed (n G) 14500
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearing 62..-C-2HRS, single row, cf. DIN 625-1
