Specifications
Availability768 pcs
BrandFAG

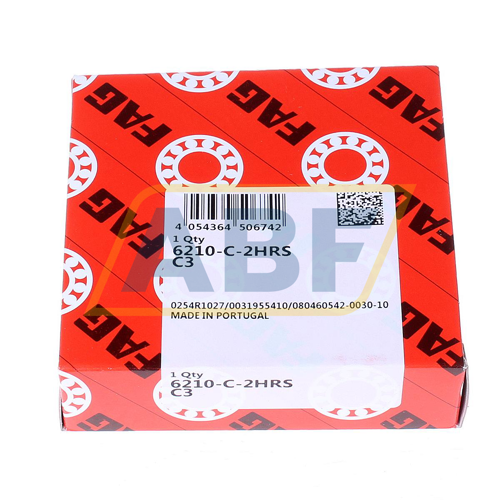

Item Number6210-C-2HRS-C3 FAG
Manufacturer Part Number0804605420030
Also known as
6210-2RS1/C3
6210-2RS-C3
6210-2RSH/C3
6210-2RSR-C3
EAN4054364506742
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
50
Outer (D) MM
90
Width (B) MM
20
Inner (d) Inch
1.9685
Outer (D) Inch
3.5433
Width (B) Inch
0.7874
Weight (kg)
0.466
Product Properties
Bore
C - Cylindrical Bore
Seal
2RH - High Speed Low Friction Seal on Two Sides
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Width (b) mm
20
Radial Static Load Rating C0r (N)
23200
Radial Dynamic Load Rating Cr (N)
38000
Limiting speed (n G)
6500
ECLASS number
23-05-08-01
ECLASS2 number
23-05-08-01
Medias description
Deep groove ball bearing 62..-C-2HRS, single row, cf. DIN 625-1
Suffix description
CDeep Groove Ball Bearings Of Generation C, Modified Internal Construction
2HRSLip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
