Loading equivalents
Specifications
Availability287 pcs
BrandFAG

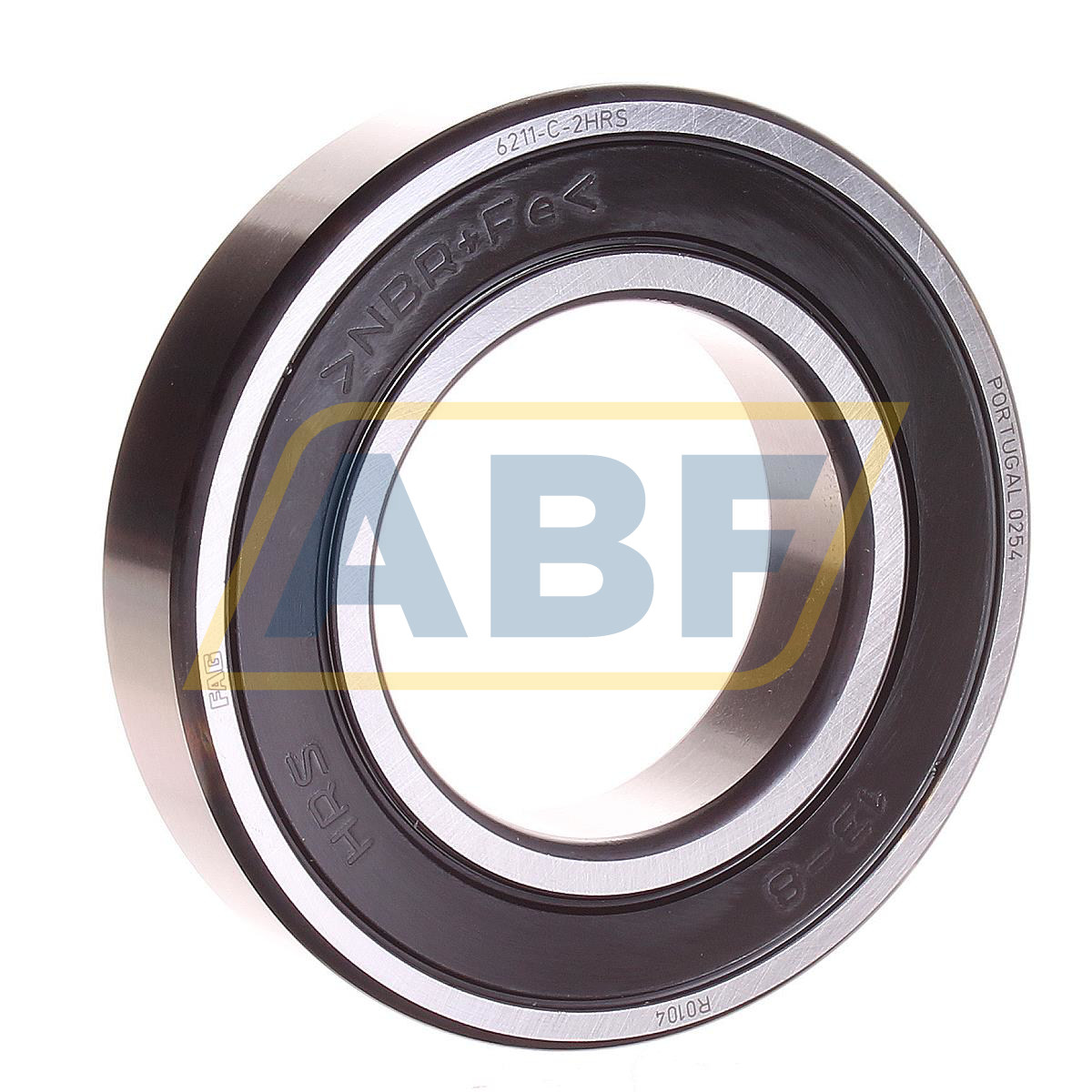

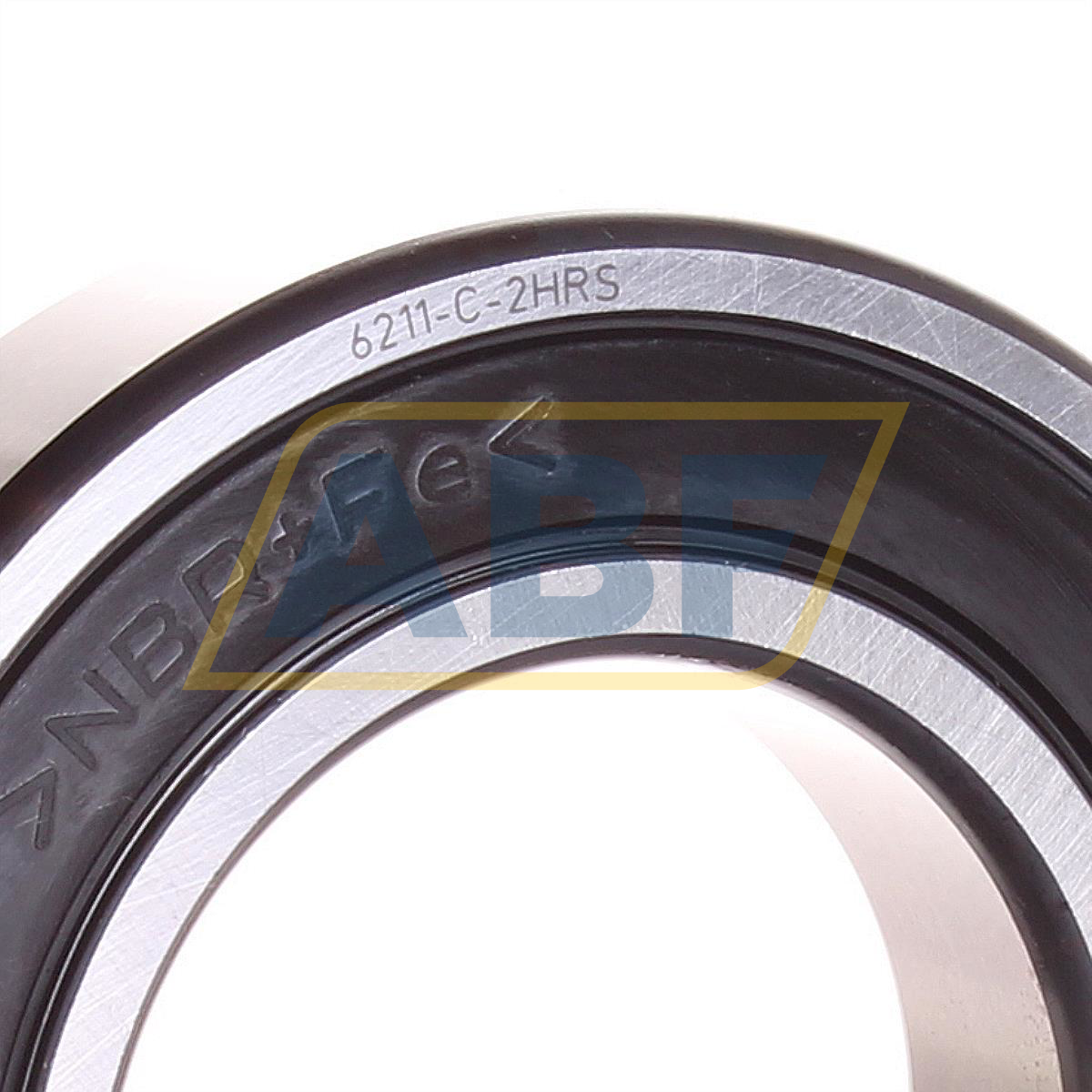

Item Number6211-C-2HRS FAG
Manufacturer Part Number0820359110000
Also known as
6211-2RS
6211-2RS1
6211-2RSH
6211-2RSR
EAN4054369503333
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
55
Outer (D) MM
100
Width (B) MM
21
Inner (d) Inch
2.1654
Outer (D) Inch
3.937
Width (B) Inch
0.8268
Weight (kg)
0.61
Product Properties
Bore
C - Cylindrical Bore
Seal
2RH - High Speed Low Friction Seal on Two Sides
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Width (b) mm
21
Radial Static Load Rating C0r (N)
29000
Radial Dynamic Load Rating Cr (N)
46500
Limiting speed (n G)
5800
ECLASS number
23-05-08-01
ECLASS2 number
23-05-08-01
Medias description
Deep groove ball bearing 62..-C-2HRS, single row, cf. DIN 625-1
Suffix description
CDeep Groove Ball Bearings Of Generation C, Modified Internal Construction
2HRSLip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
