Specifications

• Availability 62 pcs
• Brand FAG
• Item Number 6213-Z-C3 FAG
• Also known as 0190028580030
  6213-C-Z-C3

• EAN 4012801164702

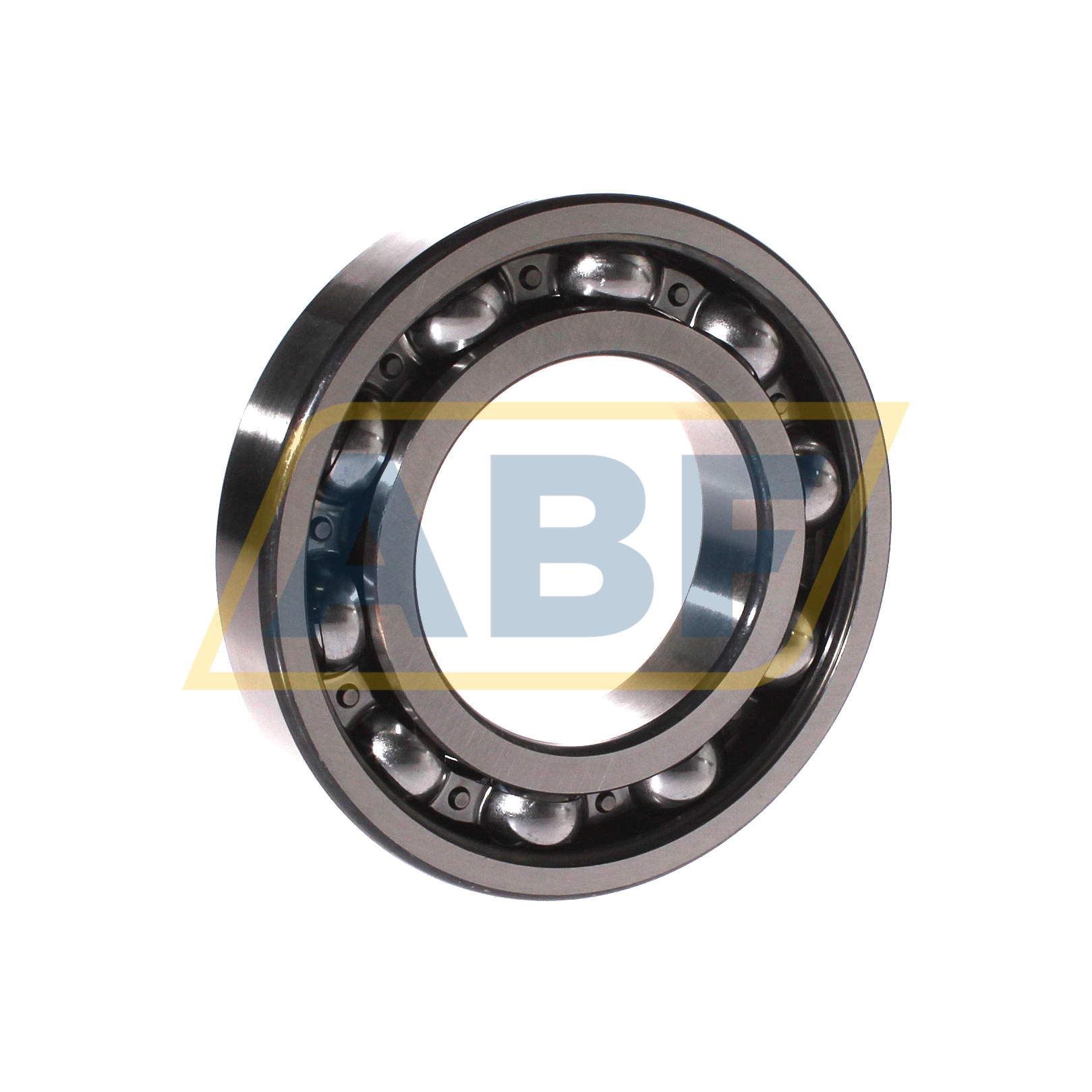

• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 65,00
• Outer (D) MM 120,00
• Width (B) MM 23,00
• Inner (d) Inch 2.5591
• Outer (D) Inch 4.7244
• Width (B) Inch 0.9055
• Weight (kg) 0.997

Product Properties

• Bore C - Cylindrical Bore
• Seal Z - Steel Seal on One Side
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play C3 Internal Play (Higher than Cn)
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 23,00
• Radial Static Load Rating C0r (N) 41500
• Radial Dynamic Load Rating Cr (N) 63000
• Basic static load rating, radial (C 0r) "41500.0000"
• Limiting speed (n G) "8600.0000"
• Reference speed (n ϑr) "6300.0000"
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearing 62..-Z, single row, cf. DIN 625-1
