6219/C3VL0241 SKF

INSOCOAT Ball Bearing 95x170x32mm C3

Loading equivalents

Product properties

Downloads & Links


About the 6219/C3VL0241 SKF

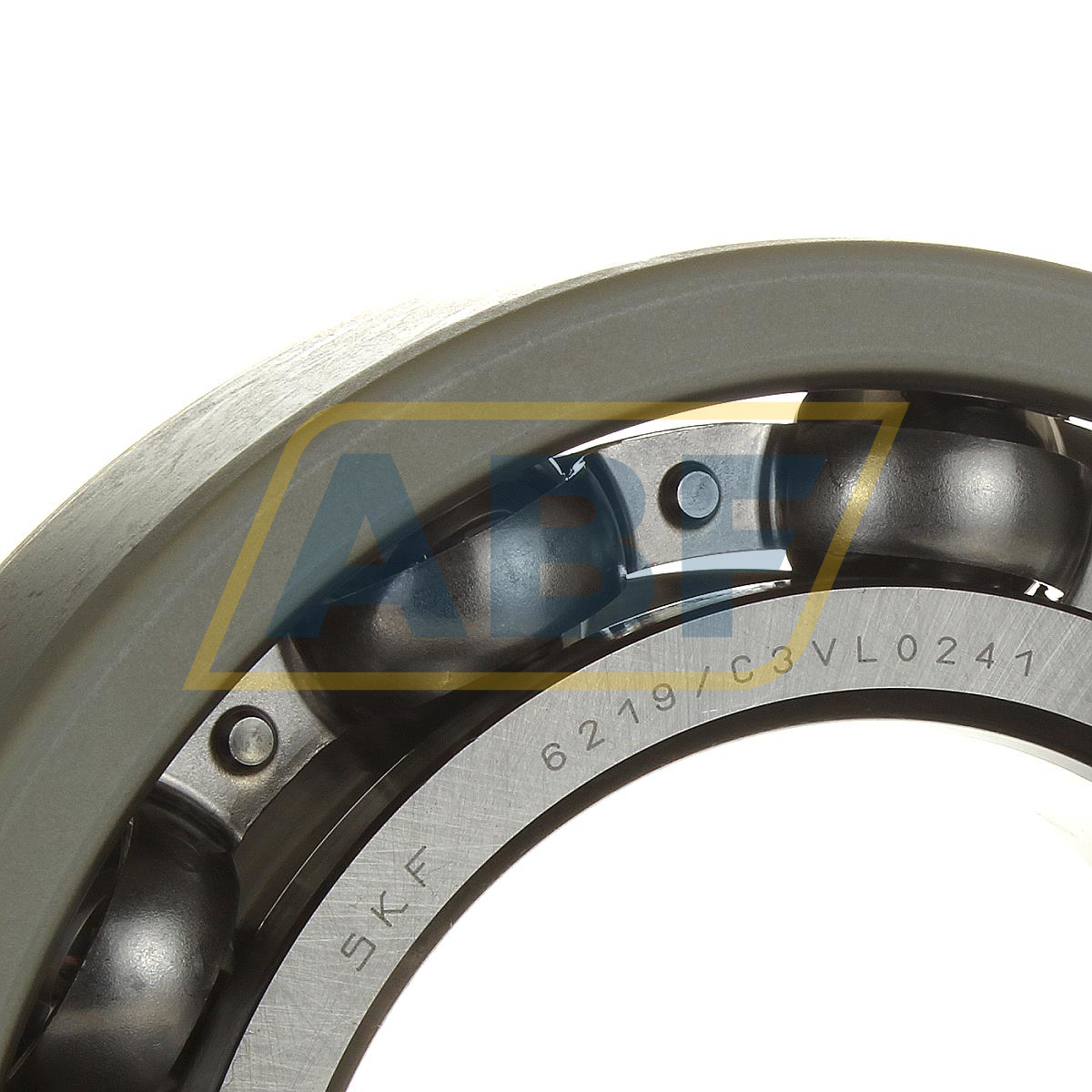

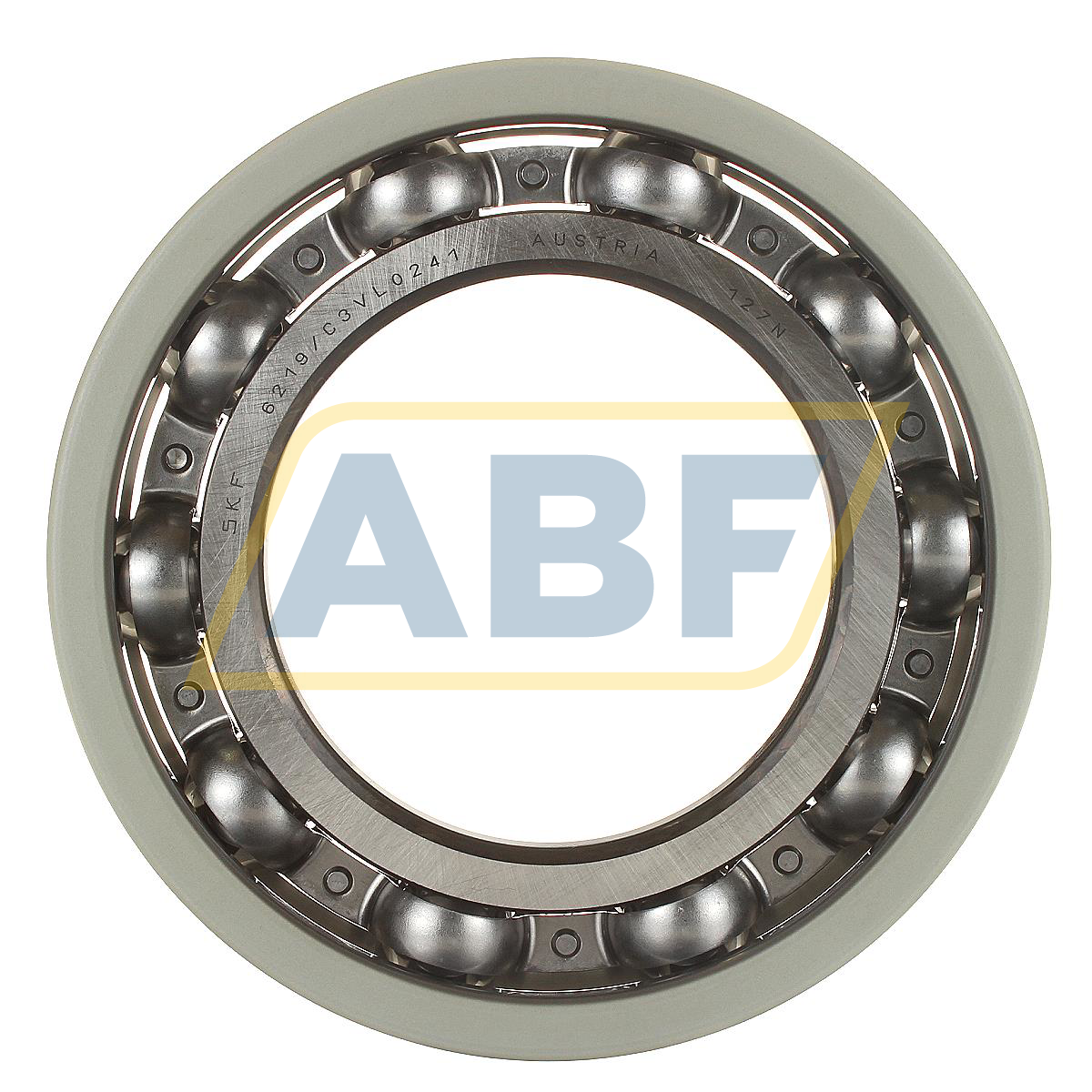

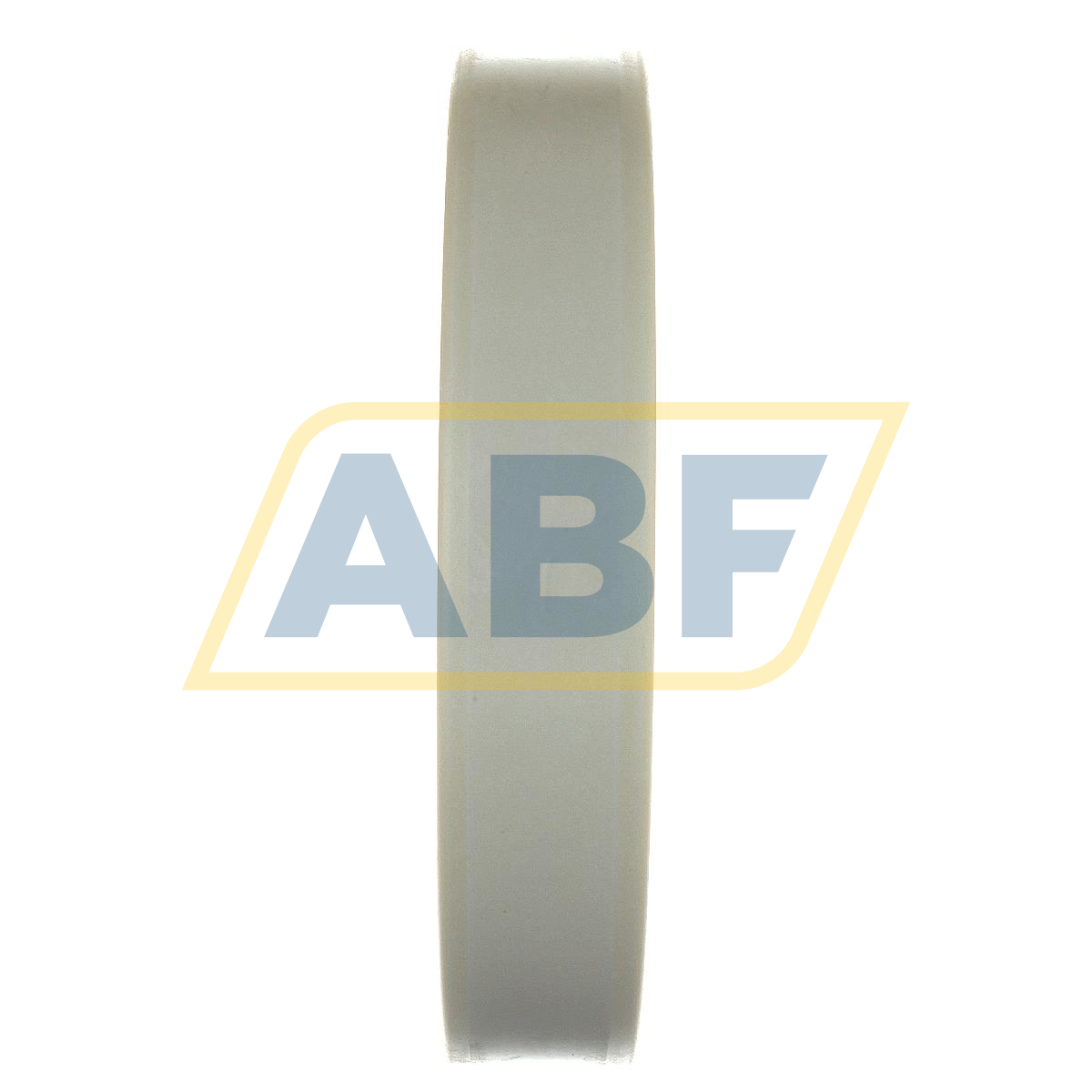

​​The 6219/C3VL0241 SKF is an electrically insulated deep groove ball bearing (INSOCOAT ball bearing). A special coating on the outer ring (VL0241) protects against bearing damage and eventual failure due to the passage of electric current.

Electrically insulated bearings are marketed by SKF under the name INSOCOAT. The VL0241 indicates the addition of an aluminium oxide coating on the outer ring​​ to withstand voltages up to 1.000 V DC. An equivalent of this 6219/C3VL0241​ SKF is the 6226-J20AA-C3 from FAG, which can withstand voltages up to 3.000 V DC.

Specs 6219/C3VL0241​ SKF

The 6219/C3VL0241 can be seen as an upgrade for for the standard non-insulated 6219/C3V ball bearing with an protection against electric current passage. The specifications are therefore identical to the 6219/C3V deep groove ball bearing.

The 6219/C3VL0241 SKF has an inner dimension or bore (d) of 95mm, an outer dimension (D) of 170mm and a width or thickness (B) of 32mm. The 6219/C3VL0241 is open on both sides (it has no seals) and has an internal greater than Normal (C3). SKF INSOCOAT bearings with a basic coated outer ring, like the 6219/C3VL0241 can withstand voltages up to 1.000 volt. The weight of the 6219/C3VL0241 SKF is 2,62 kg.

​Suffix explanation 6219/C3VL0241​ SKF

Why use INSOCOAT electrically insulated bearings?

​In general, it is difficult to eliminate the causes of electrical voltage in a bearing. Under unfavourable conditions the passage of electric current causes damage to raceways and rolling elements as well as degradation of the lubricant. Which, in addition, will result in premature, unexpected failure of a motor or generator. Therefore SKF INSOCOAT bearings are commonly used in applications where damaging effect of electrical erosion is likely, such as:

Choosing INSOCOAT bearings for your application will prove to be most cost-effective, considering the repair work and cost of machine downtime and lost production, in case of bearing failure due to electric current passage. To prevent these extra cost it's recommended to opt for electrically insulated in the planning stage. As a result, you will benefit from reduced maintenance costs and higher machine availability. INSOCOAT bearings like the 6219/C3VL0241 SKF are available for this purpose. For more information on SKF INSOCOAT bearings see the SKF website.
