6304-2Z-C3 FAG

Steel seal (2 sides) Higher (internal) clearance 20x52x15mm

Loading equivalents

Product properties

Details

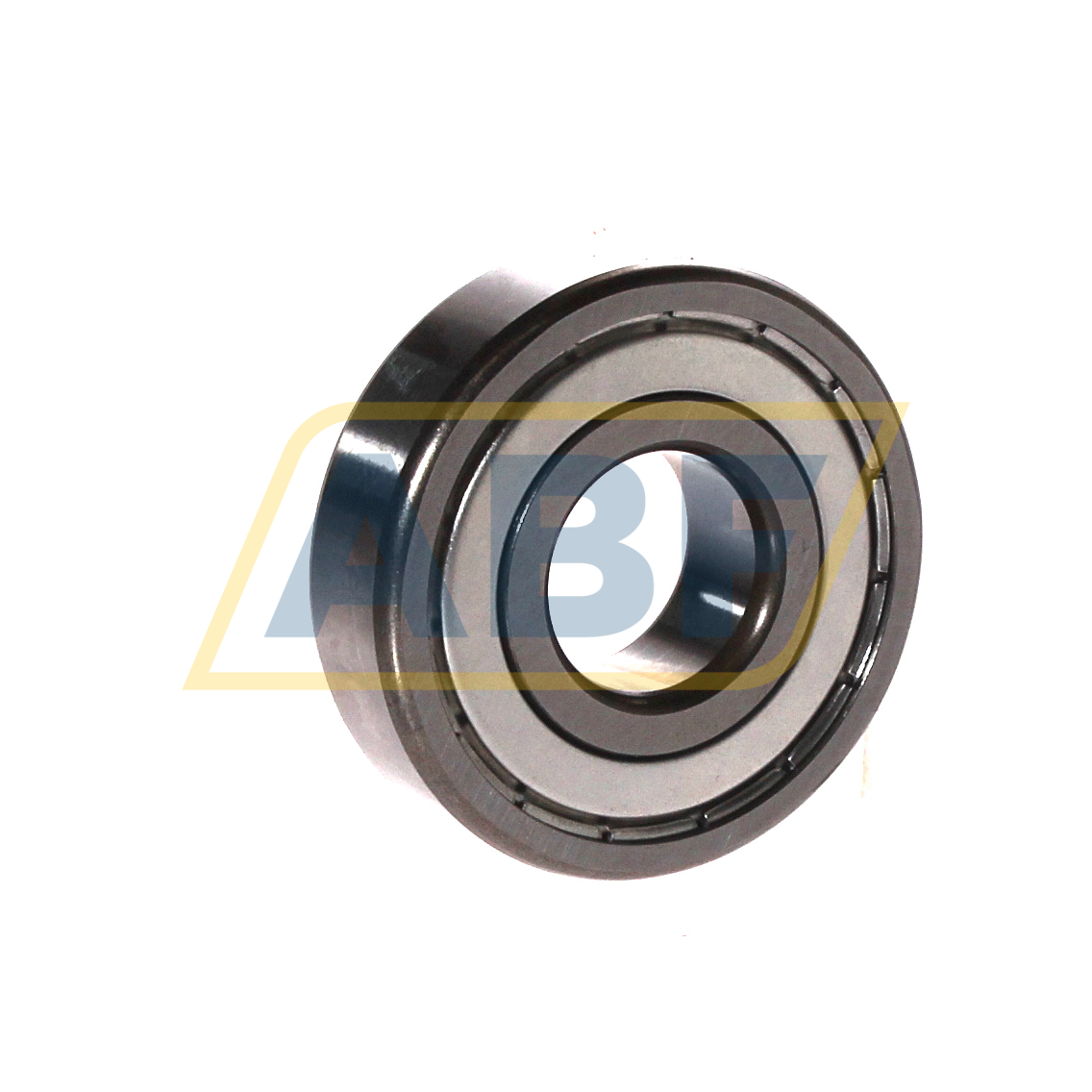

The 6304-2Z-C3 FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6304-2Z-C3 FAG is suitable for high speeds and can operate with low noise.

The dimensions of the 6304-2Z-C3 FAG are: Bore (or inner diameter) 20mm, Outer diameter 52mm and Width (or thickness) 15mm.

6300 serie
The 6304-2Z-C3 FAG is part of the popular 6300 serie which contain extra light ball bearings and are perfect for limited space applications.The 6300 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Seal
The 2Z suffix indicates that the bearing has a steel seal on both sides. The bearings are filled with a high-quality grease and are lubricated for life.

Internal play
The C3 in the product name means that this bearing has a higher (internal) clearance than normal. The C3 clearance is most frequently used for this type of bearings. The extra internal clearance allows expansion due to high speeds or temperatures.

About FAG
FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
