Loading equivalents
Specifications
Availability1,257 pcs
BrandFAG

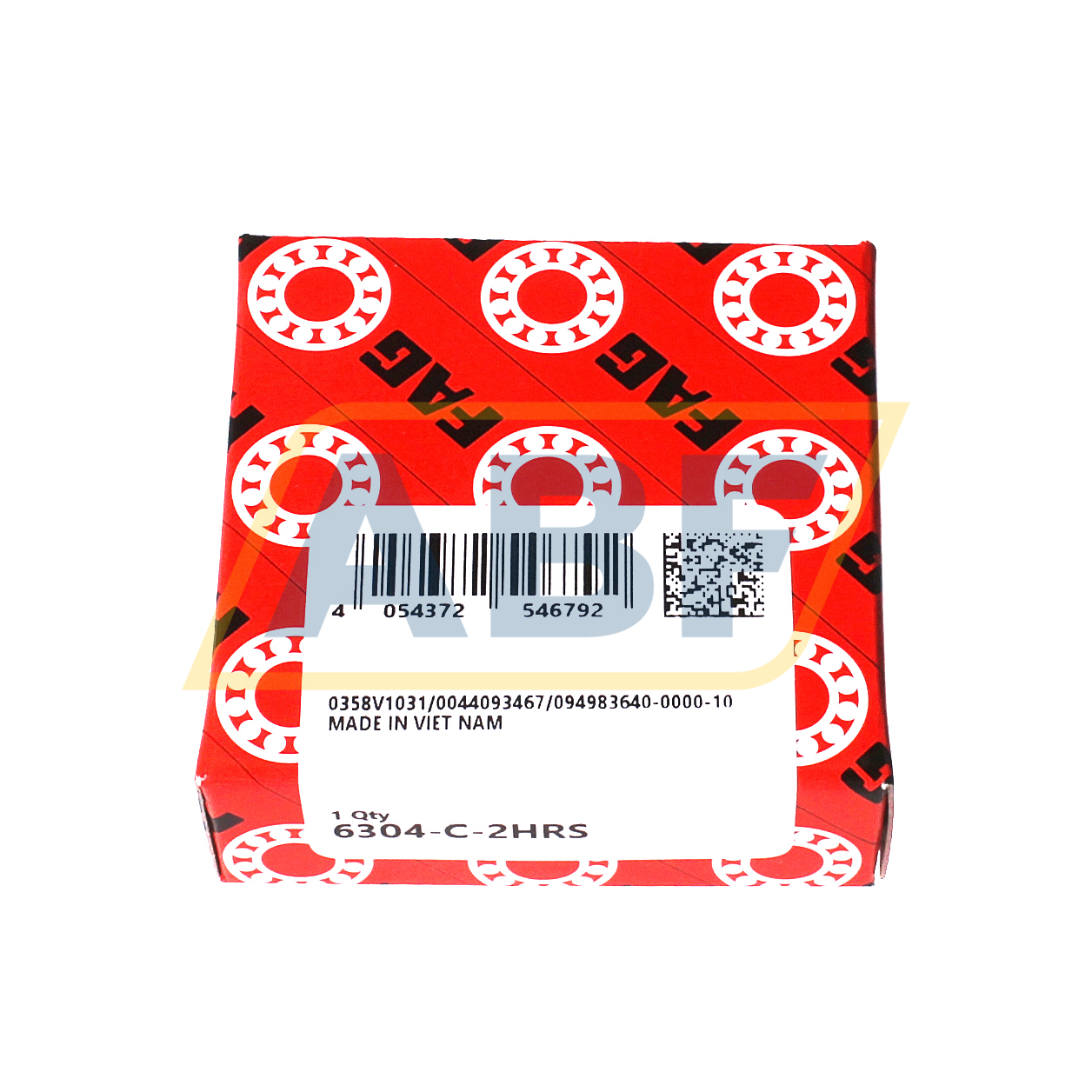

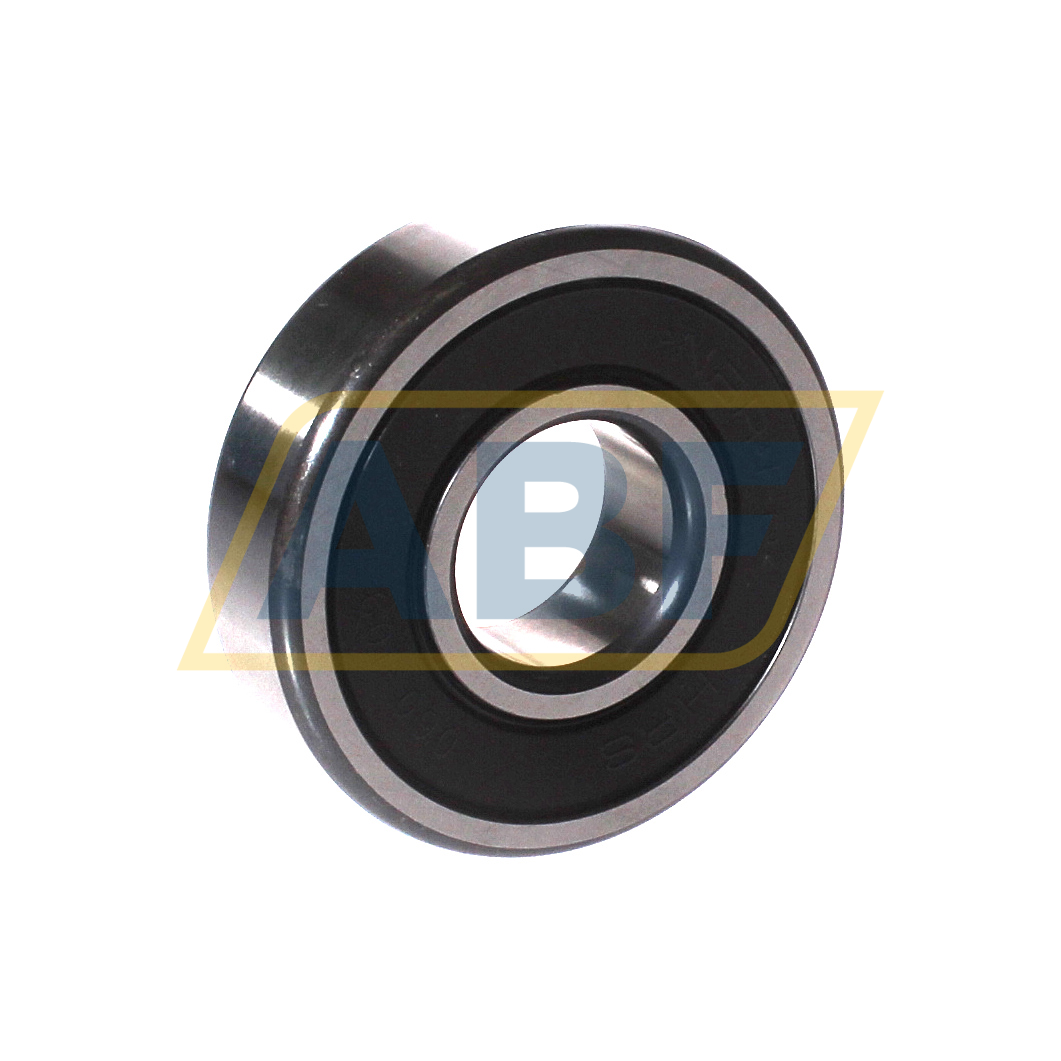

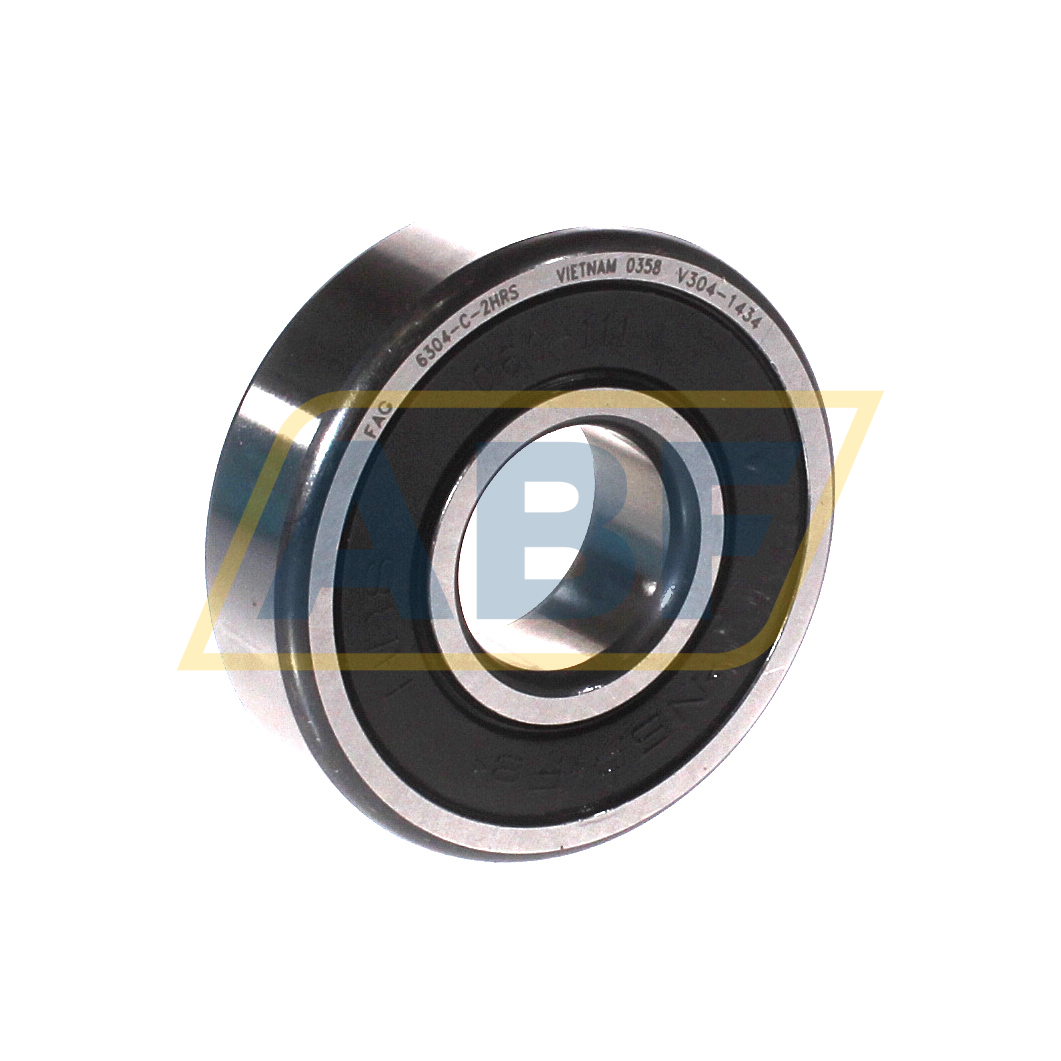

Item Number6304-C-2HRS FAG
Manufacturer Part Number0949836400000
Also known as
6304-2HRS
6304-2RS
6304-2RS1
6304-2RSH
EAN4054372546792
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
52
Width (B) MM
15
Inner (d) Inch
0.7874
Outer (D) Inch
2.0472
Width (B) Inch
0.5906
Weight (kg)
0.144
Product Properties
Bore
C - Cylindrical Bore
Seal
2RH - High Speed Low Friction Seal on Two Sides
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Lubrication
Standard Lubrication
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Suffix description
CDeep Groove Ball Bearings Of Generation C, Modified Internal Construction
2HRSLip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
