Home 6300 serie 6308-C3 FAG

6308-C3 FAG

Open Higher (internal) clearance 40x90x23mm

Loading equivalents

Product properties

Details

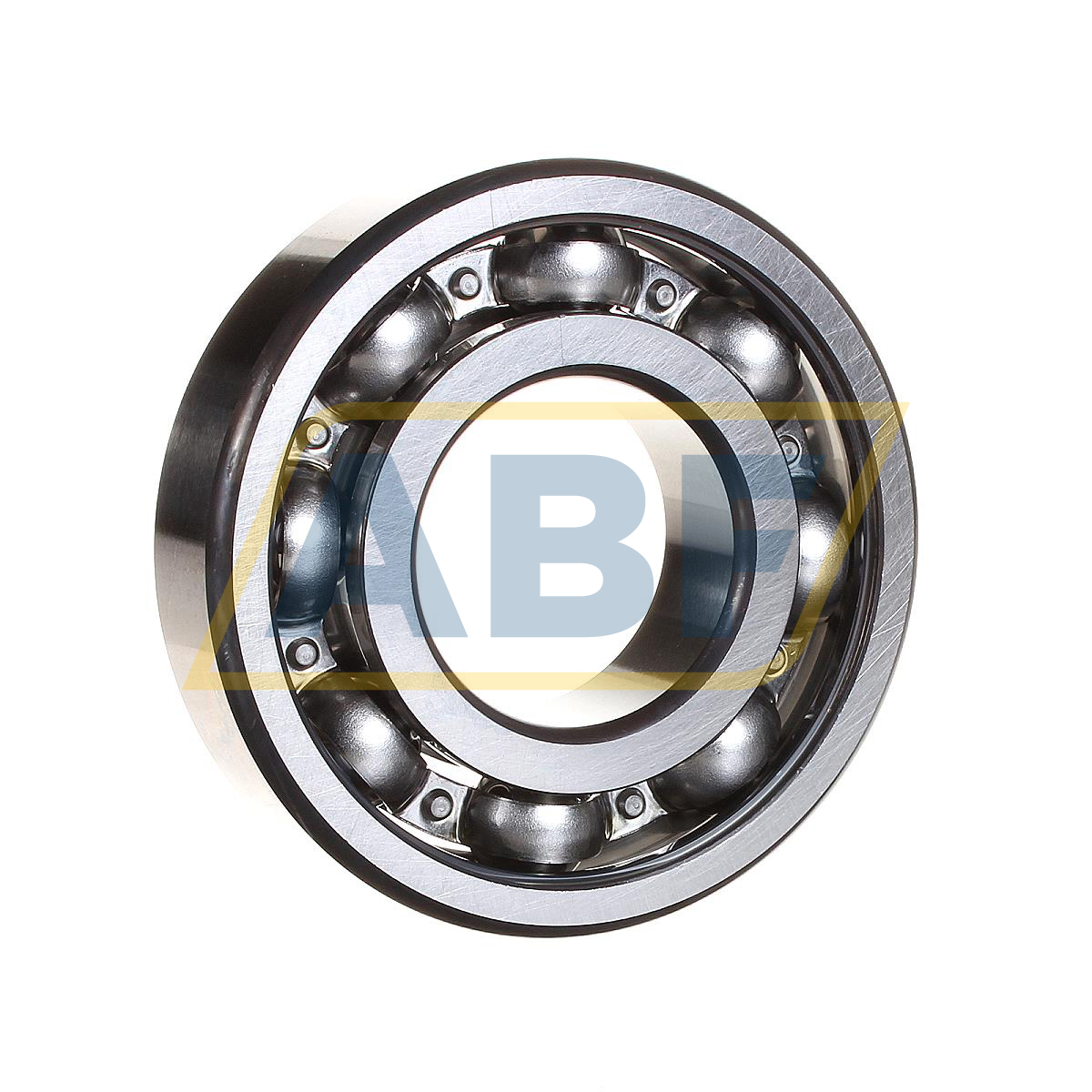

The 6308-C3 FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6308-C3 FAG is suitable for high speeds and can operate with low noise.

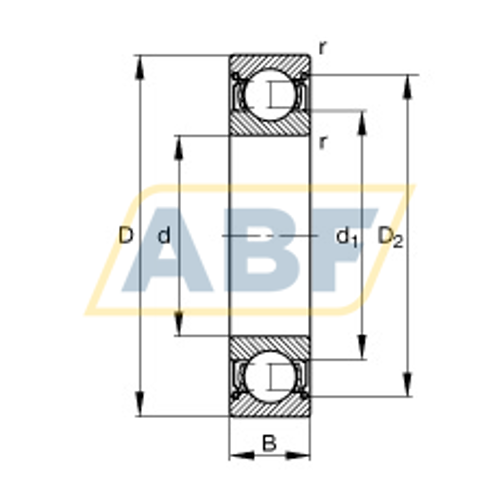

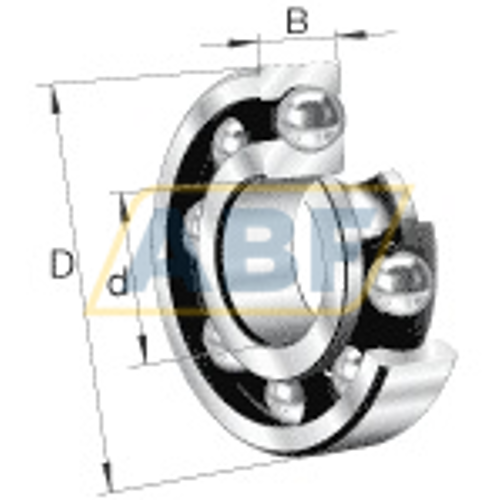

The dimensions of the 6308-C3 FAG are: Bore (or inner diameter) 40mm, Outer diameter 90mm and Width (or thickness) 23mm.

6300 serie
The 6308-C3 FAG is part of the popular 6300 serie which contain extra light ball bearings and are perfect for limited space applications.The 6300 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Internal play
The C3 in the product name means that this bearing has a higher (internal) clearance than normal. The C3 clearance is most frequently used for this type of bearings. The extra internal clearance allows expansion due to high speeds or temperatures.

About FAG
FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
