Specifications

• Availability 458 pcs
• Brand FAG
• Item Number 6310-C-2HRS FAG
• Manufacturer Part Number 0850569600000
• Also known as 6310-2RS
  6310-2RS1
  6310-2RSH
  6310-2RSR

• EAN 4054369498721

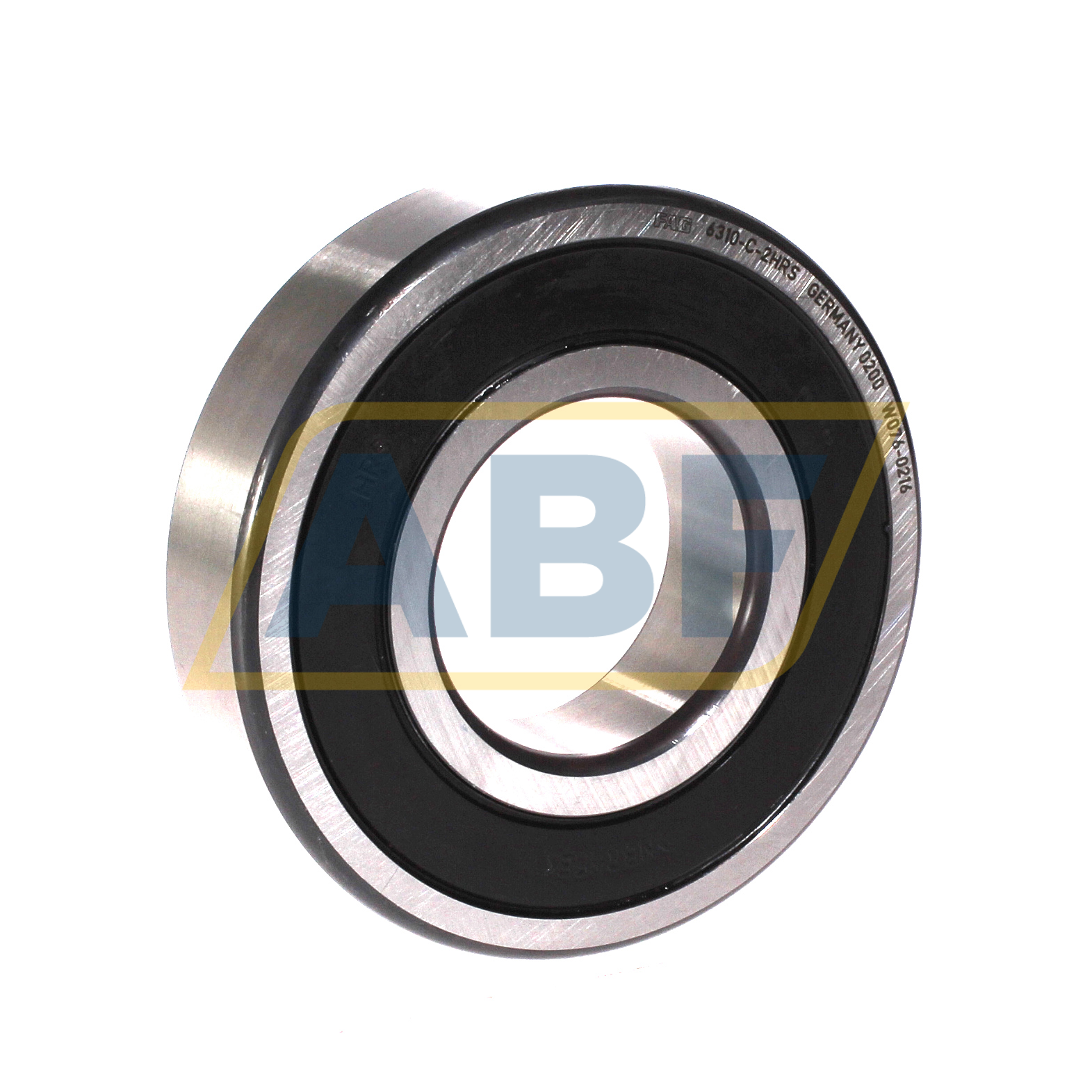

• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 50
• Outer (D) MM 110
• Width (B) MM 27
• Inner (d) Inch 1.9685
• Outer (D) Inch 4.3307
• Width (B) Inch 1.063
• Weight (kg) 1.103

Product Properties

• Bore C - Cylindrical Bore
• Seal 2RH - High Speed Low Friction Seal on Two Sides
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 27
• Radial Static Load Rating C0r (N) 38000
• Radial Dynamic Load Rating Cr (N) 68000
• Limiting speed (n G) 5800
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearing 63..-C-2HRS, single row, cf. DIN 625-1
