Specifications
Availability10 pcs
BrandFAG

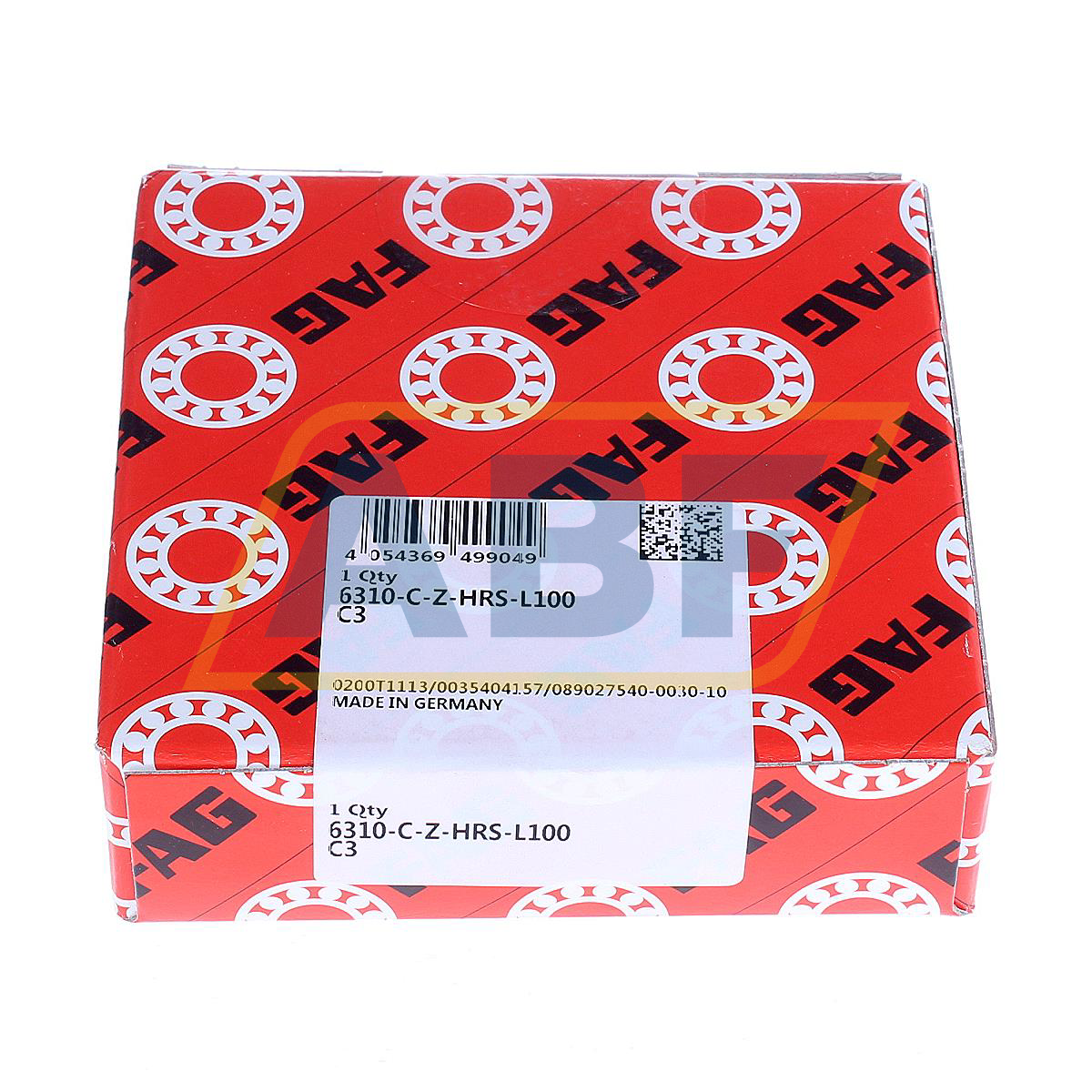

Item Number6310-C-Z-HRS-L100-C3 FAG
Manufacturer Part Number (MPN)0890275400030
Also known as
6310-Z-HRS-L100-C3
EAN4064327742421
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
50
Outer (D) MM
110
Width (B) MM
27
Inner (d) Inch
1.9685
Outer (D) Inch
4.3307
Width (B) Inch
1.063
Weight (kg)
1.06
Product Properties
Bore
C - Cylindrical Bore
Seal
2RZ - Rubber and Steel Seal
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Lubrication
Higher and Lower Temperature Grease
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Width (b) mm
27
Basic static load rating, radial (C 0r)
38000
Limiting speed (n G)
5800
Suffix description
CDeep Groove Ball Bearings Of Generation C, Modified Internal Construction
ZShield Of Pressed Sheet Steel On One Side Of The Bearing
HRSLip Seal On One Side Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
