Specifications
Availability2 pcs
BrandNSK

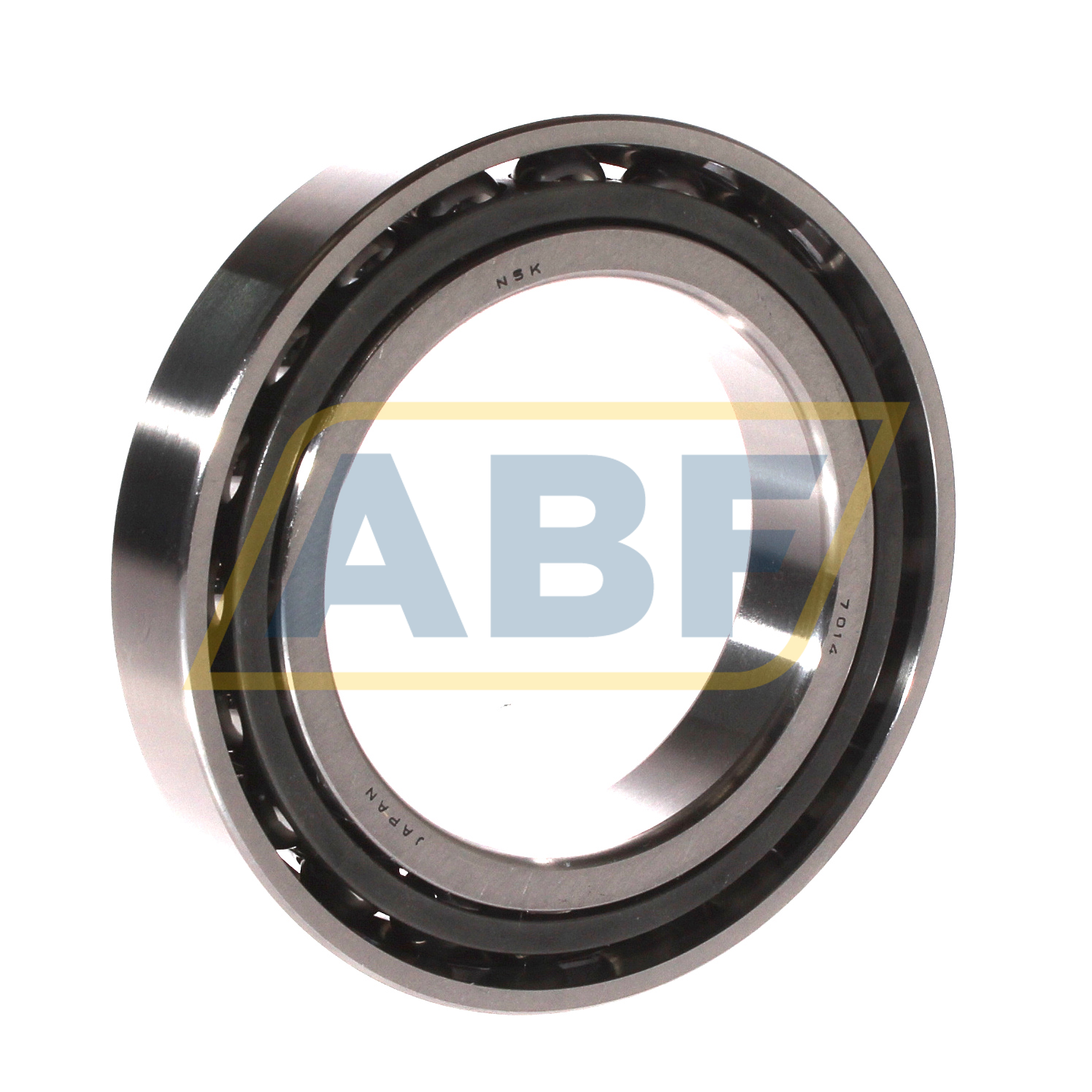

Item Number7014ATYNP5 NSK
Also known as
7014ATYN
CategoryAngular Contact Ball Bearing Single Row
Weight and Dimensions
Inner (d) MM
70
Outer (D) MM
110
Width (B) MM
20
Inner (d) Inch
2.7559
Outer (D) Inch
4.3307
Width (B) Inch
0.7874
Weight (kg)
0.59
Product Properties
Seal
No Seal
Cage Type
P - Plastic Molded Cage
Precision
P5 Precision (Higher than P6)
Contact Angle
30 degrees
Pairing
No pairing
Axial Internal Clearance / Preload
No Preload
Lubrication
Standard Lubrication
Suffix description
A30° Contact Angle
TYNThis Special Design Allows The Bearing To Have Lower Friction And Lower Noise. The Temperature Rise Of The Bearing With A TYN Cage Is Lower Than That With A Phenolic Cage At A Rotational Speed Lower Than 1.4 Million DmN* ("Dm
NPitch Circle Diameter Of Rolling Elements (mm)" x "Speed" (Min-1"))
P5Dimensional And Running Accuracy To ISO Tolerance Class 5
