Loading equivalents
Specifications
Availability30 pcs
BrandIKO
Item NumberCRH12VUU IKO
Also known as
CFH3/4S
H24L
CategoryCam Follower
Weight and Dimensions
Inner (d) MM
11,11
Outer (D) MM
19,05
Width (B) MM
14,60
Inner (d) Inch
0.4375
Outer (D) Inch
0.7500
Width (B) Inch
0.5700
Weight (kg)
0.039
Product Properties
Seal
2L - LS-seal at Both Sides
Excenterring
Other Mounting Method
Running Surface
Cylindrical
Suffix description
VFull Complement Type
UULip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃. If Letter R Is In The Suffix, Than The Cam Follower Is With Crowned Outer Ring, Otherwise It's A Cylindrical Running Surface (X)
Product description

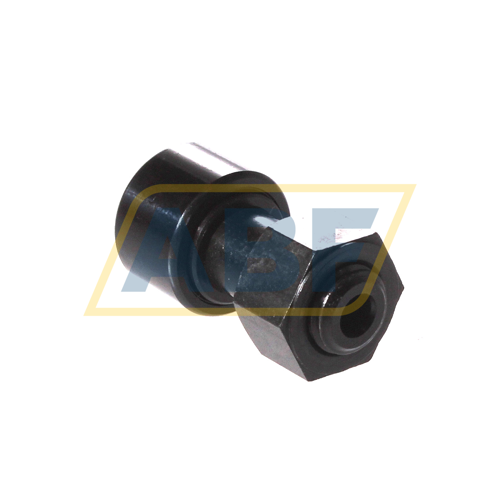

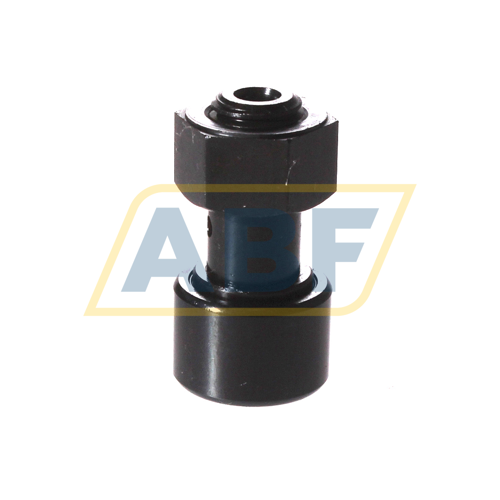

The CRH12VUU IKO is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.
The CRH12VUU IKO has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.
