Specifications
Availability27 pcs
BrandINA
Item NumberE25-XL-KLL INA
Manufacturer Part Number0008519300000
Also known as
E25-KLL
EAN4012802800050
CategoryBearings for Housings
Weight and Dimensions
Inner (d) MM
25
Outer (D) MM
52
Width (B) MM
44,5
Inner (d) Inch
0.9843
Outer (D) Inch
2.0472
Width (B) Inch
1.752
Weight (kg)
0.25
Product Properties
Seal
2F - Standard Seal for Y-bearings
Lubrication
Standard Lubrication
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Width (b) mm
34,9
Locking collar total width (B 1) mm
44,5
Radial Static Load Rating C0r (N)
7800
Radial Dynamic Load Rating Cr (N)
14900
ECLASS number
23-05-08-02
ECLASS2 number
23-05-08-02
Medias description

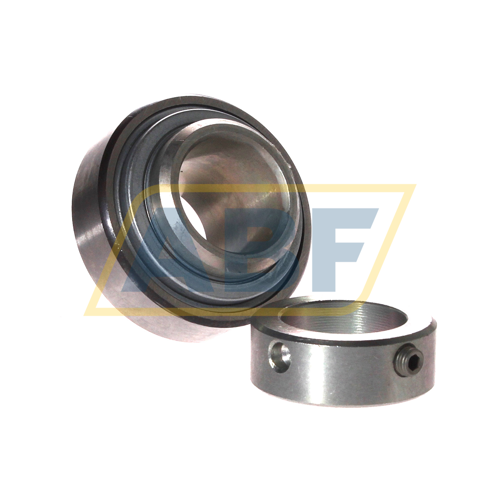

Radial insert ball bearings E..-KLL, cylindrical outer ring, location by eccentric locking collar, L seals on both sides
Suffix description
XLX-Life
KRRLip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
