Loading equivalents
Specifications
Availability30 pcs
BrandINA
Item NumberE40-XL-KLL INA
Manufacturer Part Number0008522010000
Also known as
E40-KLL
EAN4012802799934
CategoryBearings for Housings
Weight and Dimensions
Inner (d) MM
40
Outer (D) MM
80
Width (B) MM
56,5
Inner (d) Inch
1.5748
Outer (D) Inch
3.1496
Width (B) Inch
2.2244
Weight (kg)
0.74
Product Properties
Seal
2L - LS-seal at Both Sides
Lubrication
Standard Lubrication
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Width (b) mm
42,9
Locking collar total width (B 1) mm
56,5
Radial Static Load Rating C0r (N)
19800
Radial Dynamic Load Rating Cr (N)
34500
ECLASS number
23-05-08-02
ECLASS2 number
23-05-08-02
Medias description

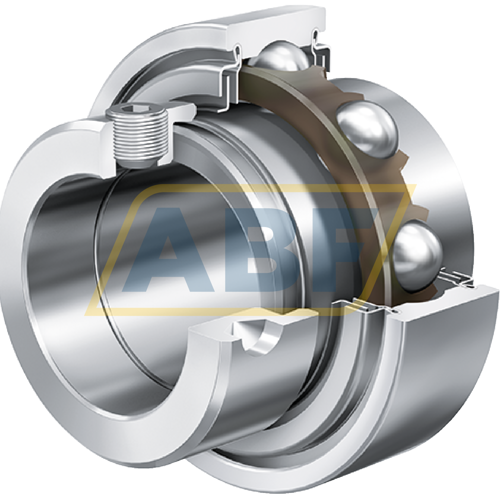

Radial insert ball bearings E..-KLL, cylindrical outer ring, location by eccentric locking collar, L seals on both sides
Suffix description
XLX-Life
KRRLip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
