Specifications
Availability24 pcs
BrandINA
Item NumberGAR25-DO-2RS INA
Manufacturer Part Number0066340870000
Also known as
GAR25ES-2RS
SA25ES-2RS
EAN4012802525069
CategoryRod End
Weight and Dimensions
Inner (d) MM
25
Outer (D) MM
64
Width (B) MM
20
Inner (d) Inch
0.9843
Outer (D) Inch
2.5197
Width (B) Inch
0.7874
Weight (kg)
0.5672
Product Properties
Seal
2RS - Rubber Seal on Two Sides
Contact Material
Steel on Steel
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
42
Radial Static Load Rating C0r (N)
88300
Width inner ring (B) mm
20
Radial Dynamic Load Rating Cr (N)
48300
ECLASS number
23-05-01-05
ECLASS2 number
23-05-01-05
Medias description
Rod end with external thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type M, sealed design
Suffix description
DOSliding Contact Surface Steel/Steel & Inner And Outer Ring Hardened

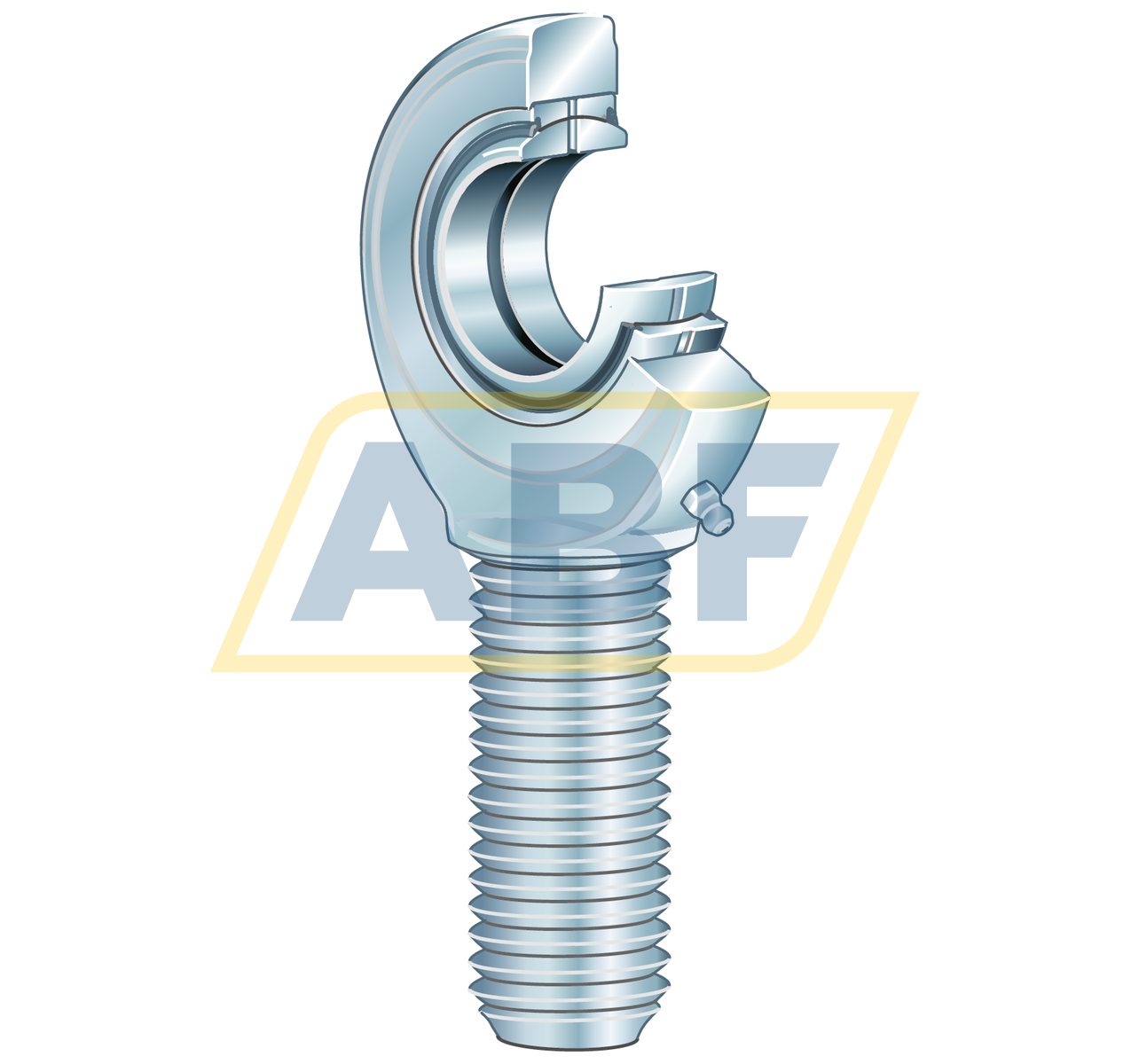

The GAR25-DO-2RS INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.
The GAR25-DO-2RS INA has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
