Name: GAR25-UK-2RS-A INA
Brand: INA

Specifications

Availability 14 pcs
Brand INA
Item Number GAR25-UK-2RS-A INA
Manufacturer Part Number 0066467000000
Also known as SA25C-2RS
EAN 4012802529258
Category Rod End

Weight and Dimensions

Inner (d) MM 25
Outer (D) MM 64
Width (B) MM 20
Inner (d) Inch 0.9843
Outer (D) Inch 2.5197
Width (B) Inch 0.7874
Weight (kg) 0.5677

Product Properties

Seal 2RS - Rubber Seal on Two Sides
Contact Material Steel on PTFE

Data from Schaeffler (medias)

Outside diameter bearing (D) mm 42
Outer eye diameter (d 2) mm 64
Radial Static Load Rating C0r (N) 105000
Width inner ring (B) mm 20
Radial Dynamic Load Rating Cr (N) 51100
Total length external thread rod (l 2) mm 126
ECLASS number 23-05-01-05
ECLASS2 number 23-05-01-05
Medias description Rod end with external thread, right hand thread, maintenance-free, sliding layer: ELGOGLIDE DIN ISO 12240-4, dimension series E, type M, inner ring curved surface with hard chromium coating, sealed

Suffix description

UK Sliding Contact Surface Hard Chromium/PTFE Composite
2RS Lip Seals On Both Sides
A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Downloads & Links

Link to manufacturer

Product description

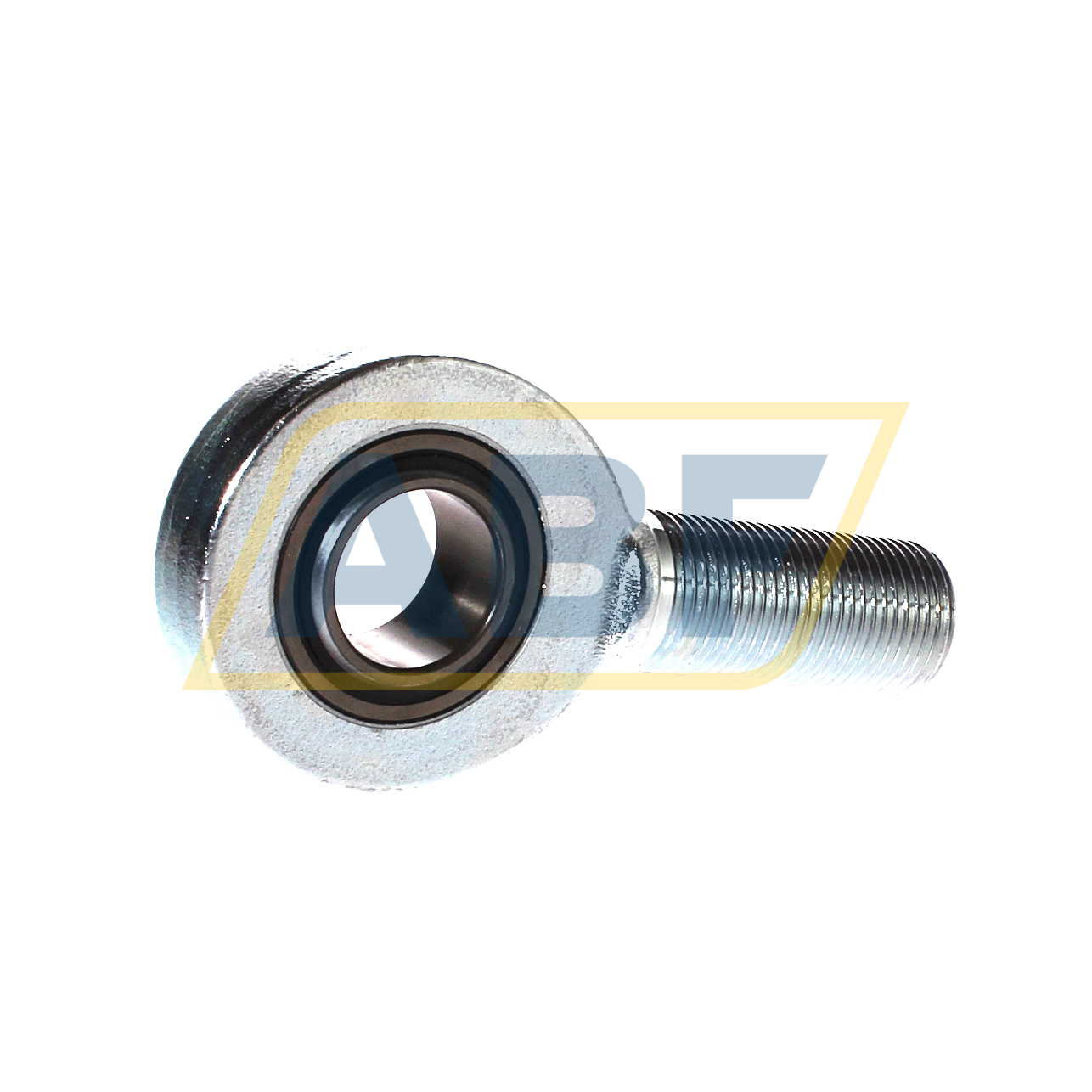

The GAR25-UK-2RS-A INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GAR25-UK-2RS-A INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.

GAR25-UK-2RS-A INA

Rod End
