Specifications
Availability7 pcs
BrandINA
Item NumberGE110-LO INA
Manufacturer Part Number0066536770000
Also known as
GE110DO
GE110ES
EAN4012802534078
CategorySpherical Plain Bearing
Weight and Dimensions
Inner (d) MM
110
Outer (D) MM
160
Width (B) MM
70
Inner (d) Inch
4.3307
Outer (D) Inch
6.2992
Width (B) Inch
2.7559
Weight (kg)
4.6
Product Properties
Seal
No Seal
Contact Material
Steel on Steel
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
160
Radial Static Load Rating C0r (N)
3280000
Width inner ring (B) mm
110
Radial Dynamic Load Rating Cr (N)
655000
ECLASS number
23-05-01-06
ECLASS2 number
23-05-01-06
Medias description
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series W, cylindrical extensions on inner ring, open design
Suffix description
LOSliding Contact Surface Is Steel/Steel, Inner Ring Extended On Both Sides, Single Axial Split In Outer Ring

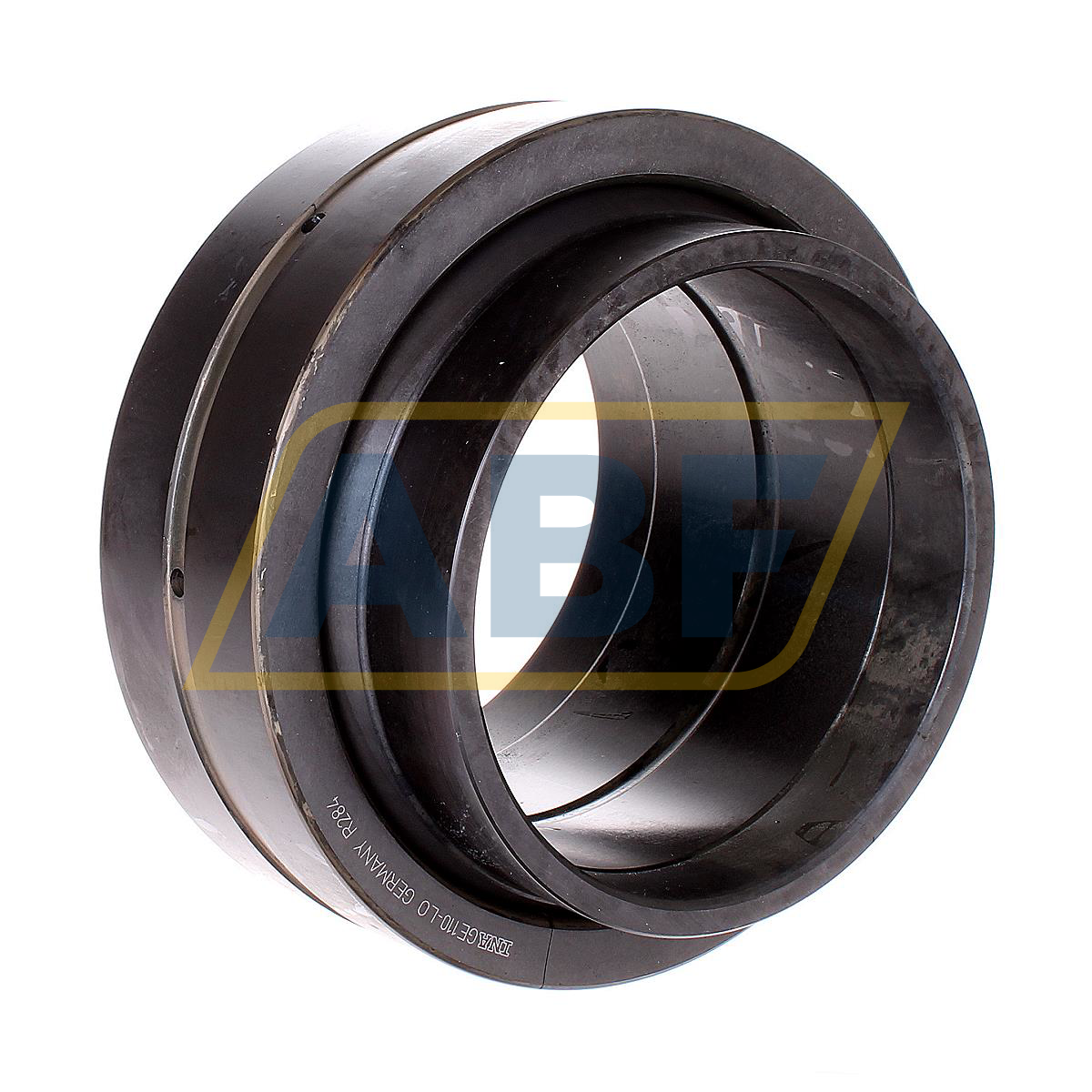

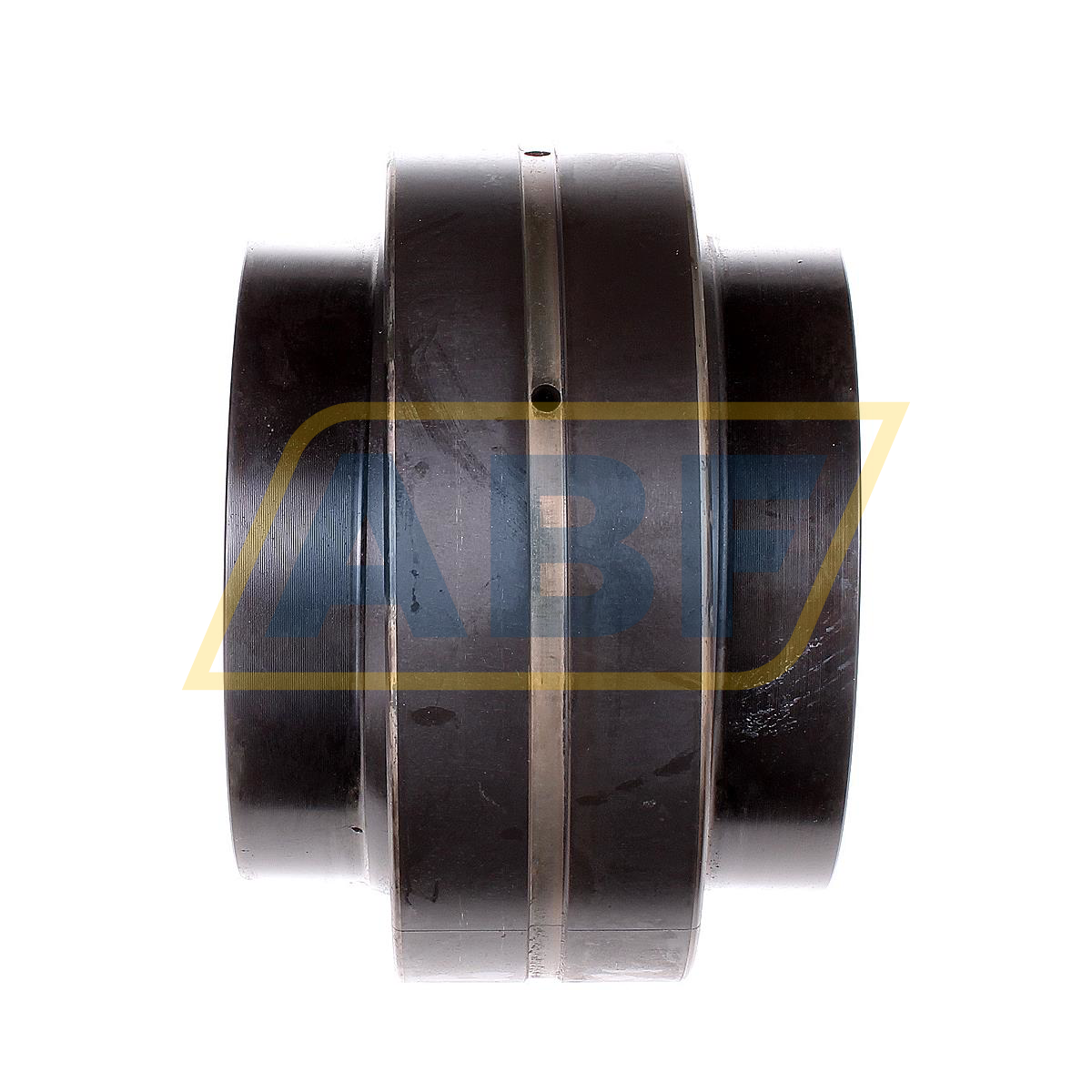

The GE110-LO INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.
The GE110-LO INA has a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
