Specifications
Availability2 pcs
BrandINA
Item NumberGE12-DO INA
Manufacturer Part Number0066524760000
Also known as
GE12E
EAN4012802532937
CategorySpherical Plain Bearing
Weight and Dimensions
Inner (d) MM
12
Outer (D) MM
22
Width (B) MM
10
Inner (d) Inch
0.4724
Outer (D) Inch
0.8661
Width (B) Inch
0.3937
Weight (kg)
0.016
Product Properties
Seal
No Seal
Contact Material
Steel on Steel
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
22
Radial Static Load Rating C0r (N)
54000
Width inner ring (B) mm
10
Radial Dynamic Load Rating Cr (N)
10800
ECLASS number
23-05-01-06
ECLASS2 number
23-05-01-06
Medias description
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, open design

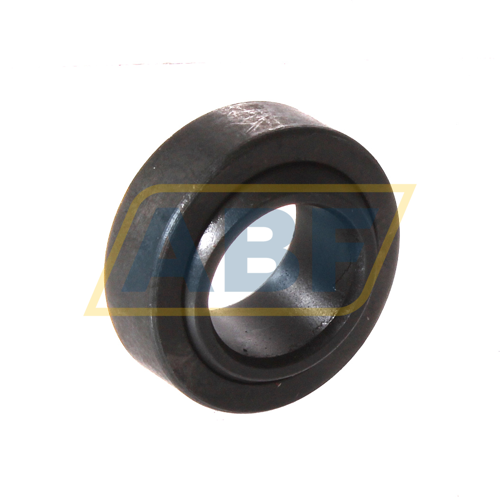

The GE12-DO INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.
The GE12-DO INA has a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
