Specifications
Availability20 pcs
BrandINA
Item NumberGE16-PB INA
Manufacturer Part Number0066526620000
EAN4012802533217
CategorySpherical Plain Bearing
Weight and Dimensions
Inner (d) MM
16
Outer (D) MM
32
Width (B) MM
21
Inner (d) Inch
0.6299
Outer (D) Inch
1.2598
Width (B) Inch
0.8268
Weight (kg)
0.08
Product Properties
Seal
No Seal
Contact Material
Steel on Bronze
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
32
Radial Static Load Rating C0r (N)
53600
Width inner ring (B) mm
21
Radial Dynamic Load Rating Cr (N)
21400
ECLASS number
23-05-01-06
ECLASS2 number
23-05-01-06
Medias description
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/bronze, DIN ISO 12240-1, dimension series K, open design

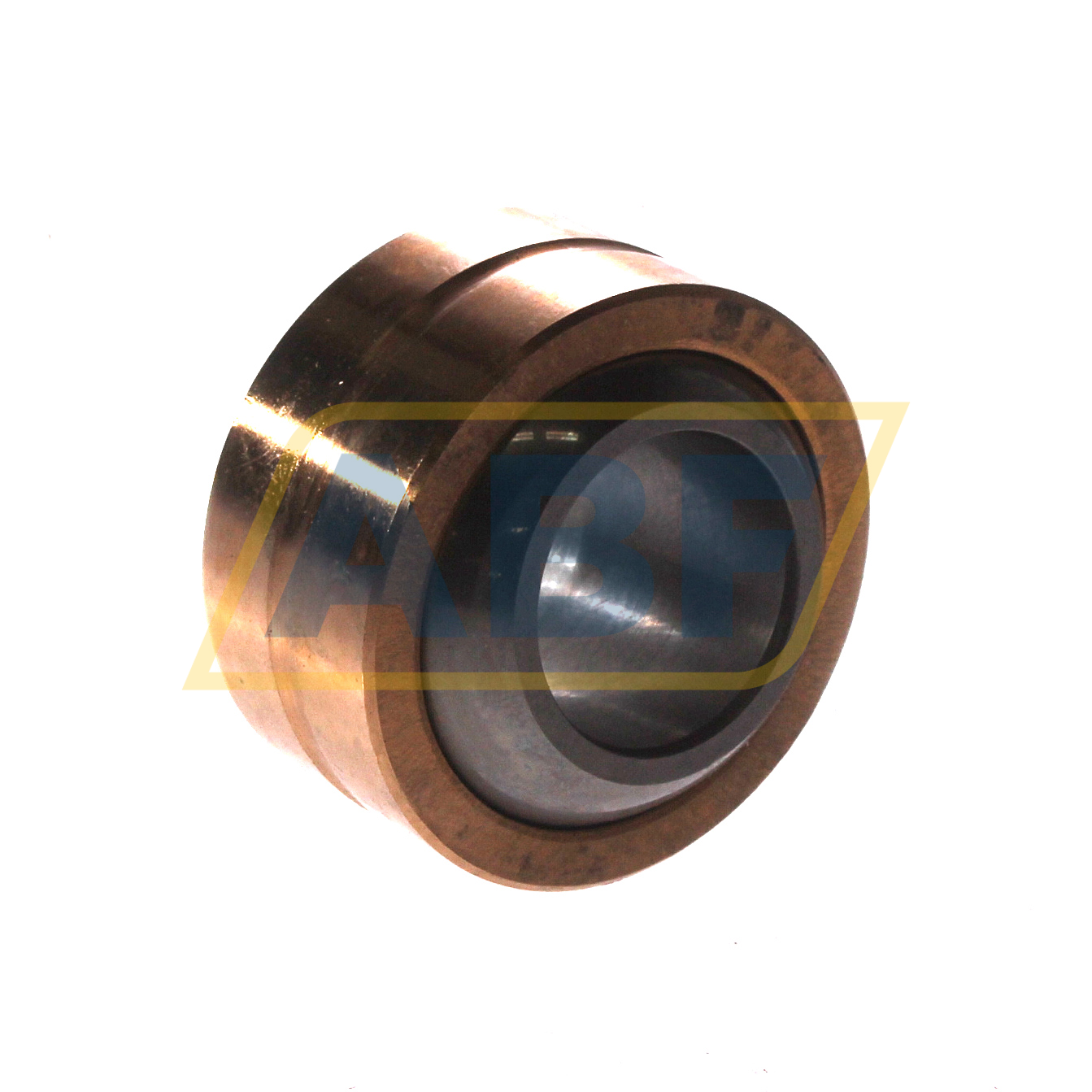

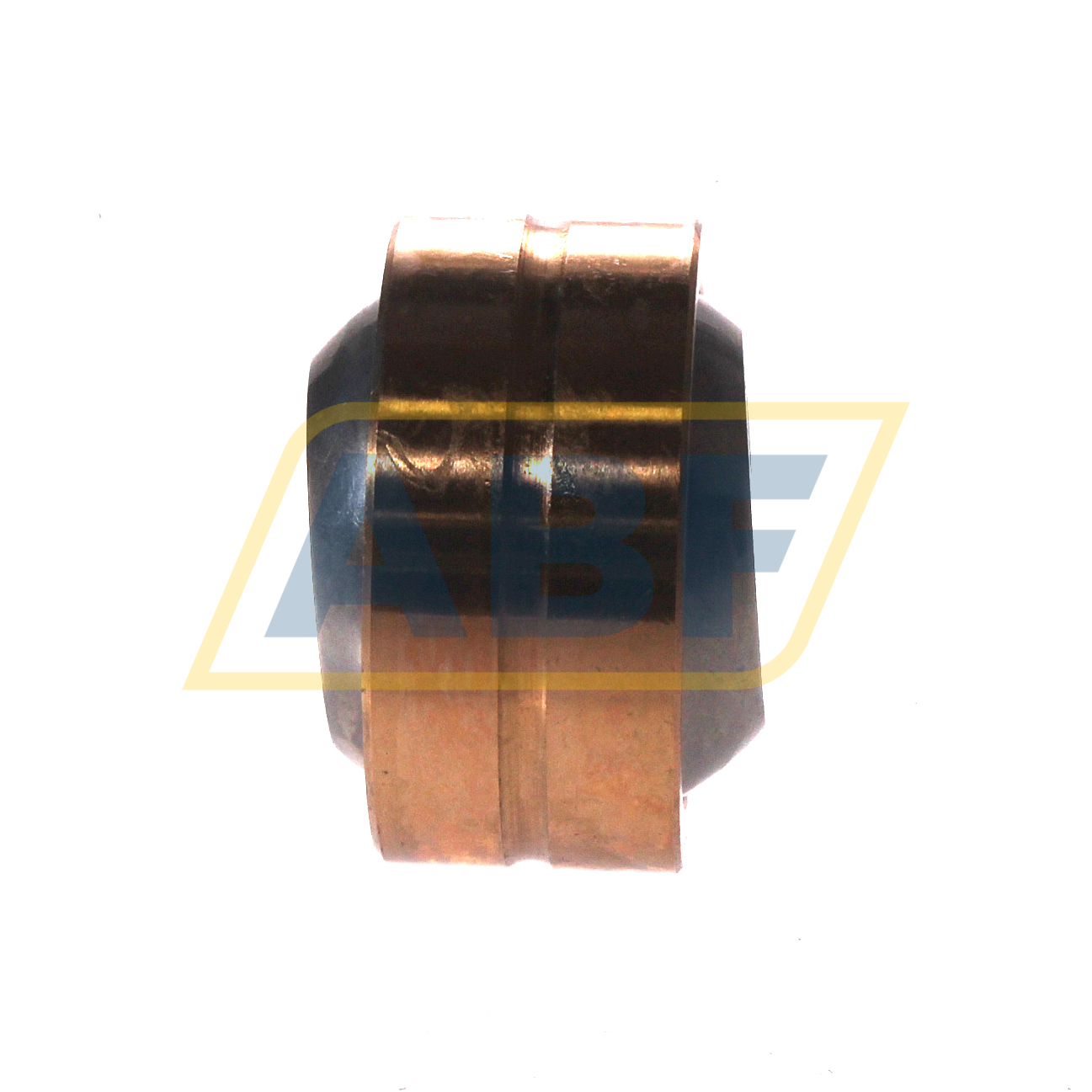

The GE16-PB INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.
The GE16-PB INA has a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
