Specifications
Availability54 pcs
BrandINA
Item NumberGE32-LO INA
Manufacturer Part Number0066529480000
Also known as
GEG32ES
EAN4012802533538
CategorySpherical Plain Bearing
Weight and Dimensions
Inner (d) MM
32
Outer (D) MM
52
Width (B) MM
32
Inner (d) Inch
1.2598
Outer (D) Inch
2.0472
Width (B) Inch
1.2598
Weight (kg)
0.2064
Product Properties
Seal
No Seal
Contact Material
Steel on Steel
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
52
Radial Static Load Rating C0r (N)
337000
Width inner ring (B) mm
32
Radial Dynamic Load Rating Cr (N)
67300
ECLASS number
23-05-01-06
ECLASS2 number
23-05-01-06
Medias description
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series W, cylindrical extensions on inner ring, open design
Suffix description
LOSliding Contact Surface Is Steel/Steel, Inner Ring Extended On Both Sides, Single Axial Split In Outer Ring

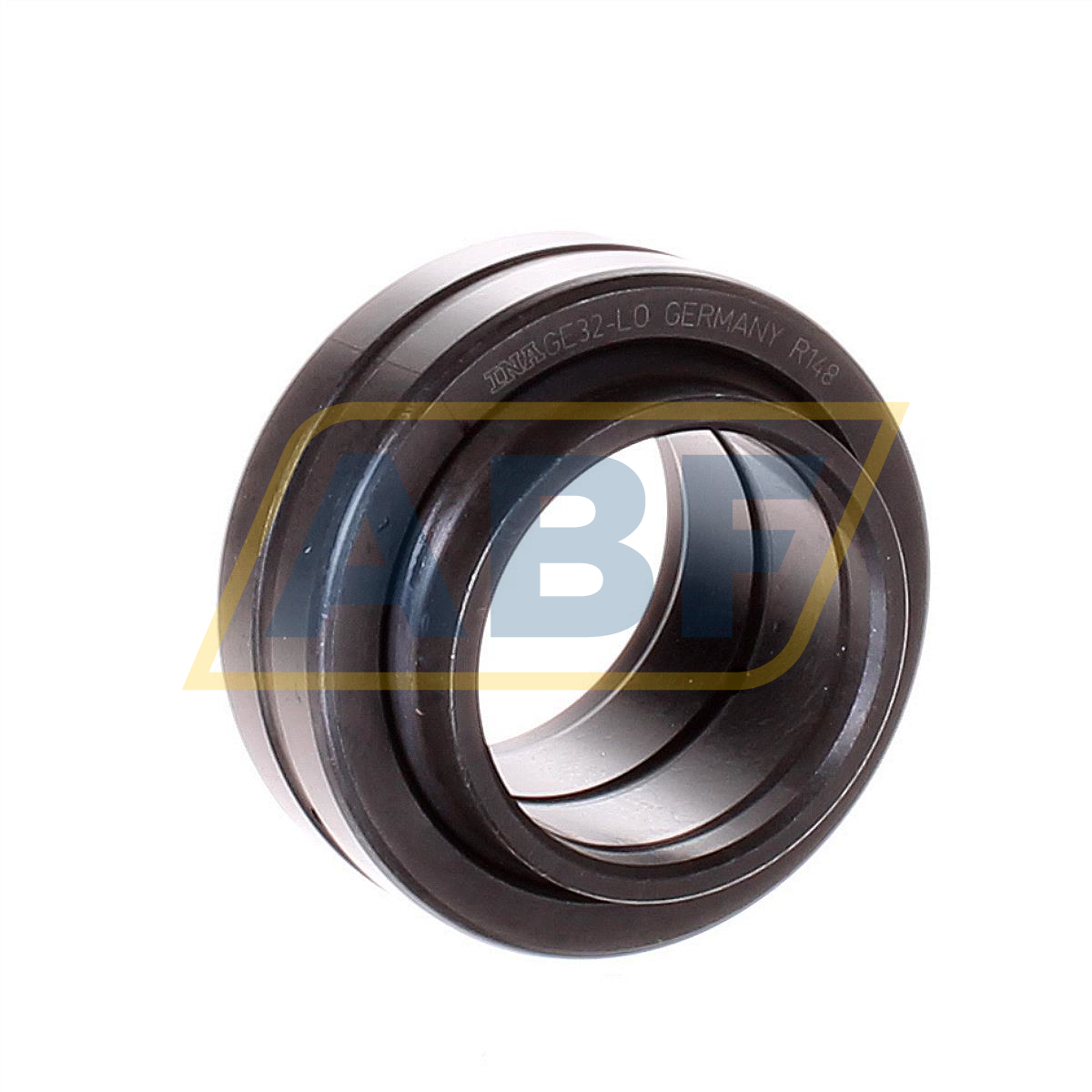

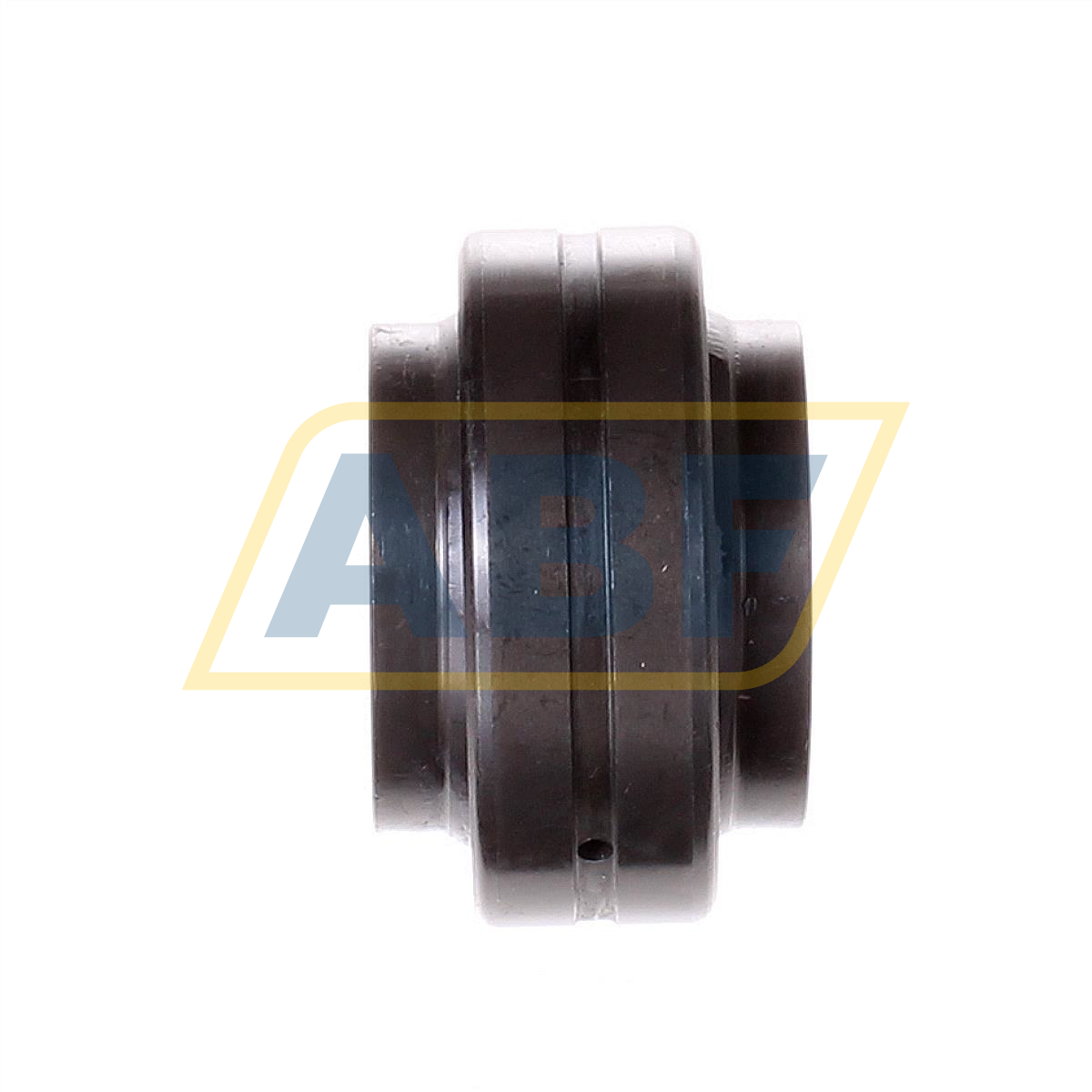

The GE32-LO INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.
The GE32-LO INA has a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
