Loading equivalents
Specifications
Availability1 pc
BrandINA
Item NumberGE50-DO INA
Manufacturer Part Number0066531700000
Also known as
GE50ES
EAN4012802533736
CategorySpherical Plain Bearing
Weight and Dimensions
Inner (d) MM
50
Outer (D) MM
75
Width (B) MM
35
Inner (d) Inch
1.9685
Outer (D) Inch
2.9528
Width (B) Inch
1.378
Weight (kg)
0.56
Product Properties
Seal
No Seal
Contact Material
Steel on Steel
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
75
Radial Static Load Rating C0r (N)
785000
Width inner ring (B) mm
35
Radial Dynamic Load Rating Cr (N)
157000
ECLASS number
23-05-01-06
ECLASS2 number
23-05-01-06
Medias description
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series E, open design

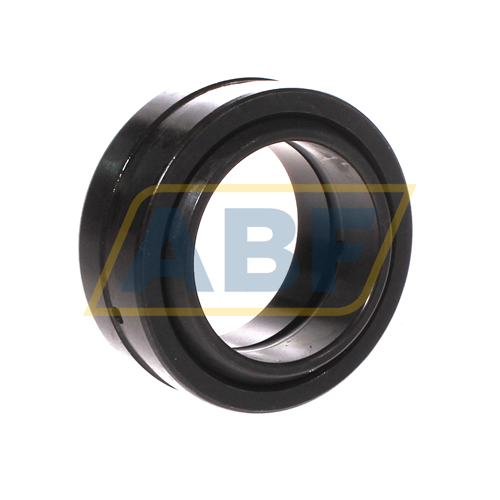

The GE50-DO INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.
The GE50-DO INA has a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
