Name: GE50-FW-2RS-A INA
Brand: INA

Specifications

Availability 29 pcs
Brand INA
Item Number GE50-FW-2RS-A INA
Manufacturer Part Number 0066503250000
Also known as GEH50TXE-2RS
EAN 4012802532005
Category Spherical Plain Bearing

Weight and Dimensions

Inner (d) MM 50
Outer (D) MM 90
Width (B) MM 56
Inner (d) Inch 1.9685
Outer (D) Inch 3.5433
Width (B) Inch 2.2047
Weight (kg) 1.38

Product Properties

Seal 2RS - Rubber Seal on Two Sides
Contact Material Steel on PTFE

Data from Schaeffler (medias)

Outside diameter bearing (D) mm 90
Radial Static Load Rating C0r (N) 1150000
Width inner ring (B) mm 56
Radial Dynamic Load Rating Cr (N) 691000
ECLASS number 23-05-01-06
ECLASS2 number 23-05-01-06
Medias description Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed

Suffix description

FW Sliding Contact Surface Hard Chromium/PTFE (Polyetrafluoroethylene) Composite, Wide Inner Ring
2RS Lip Seals On Both Sides
A Schaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)

Downloads & Links

Product description

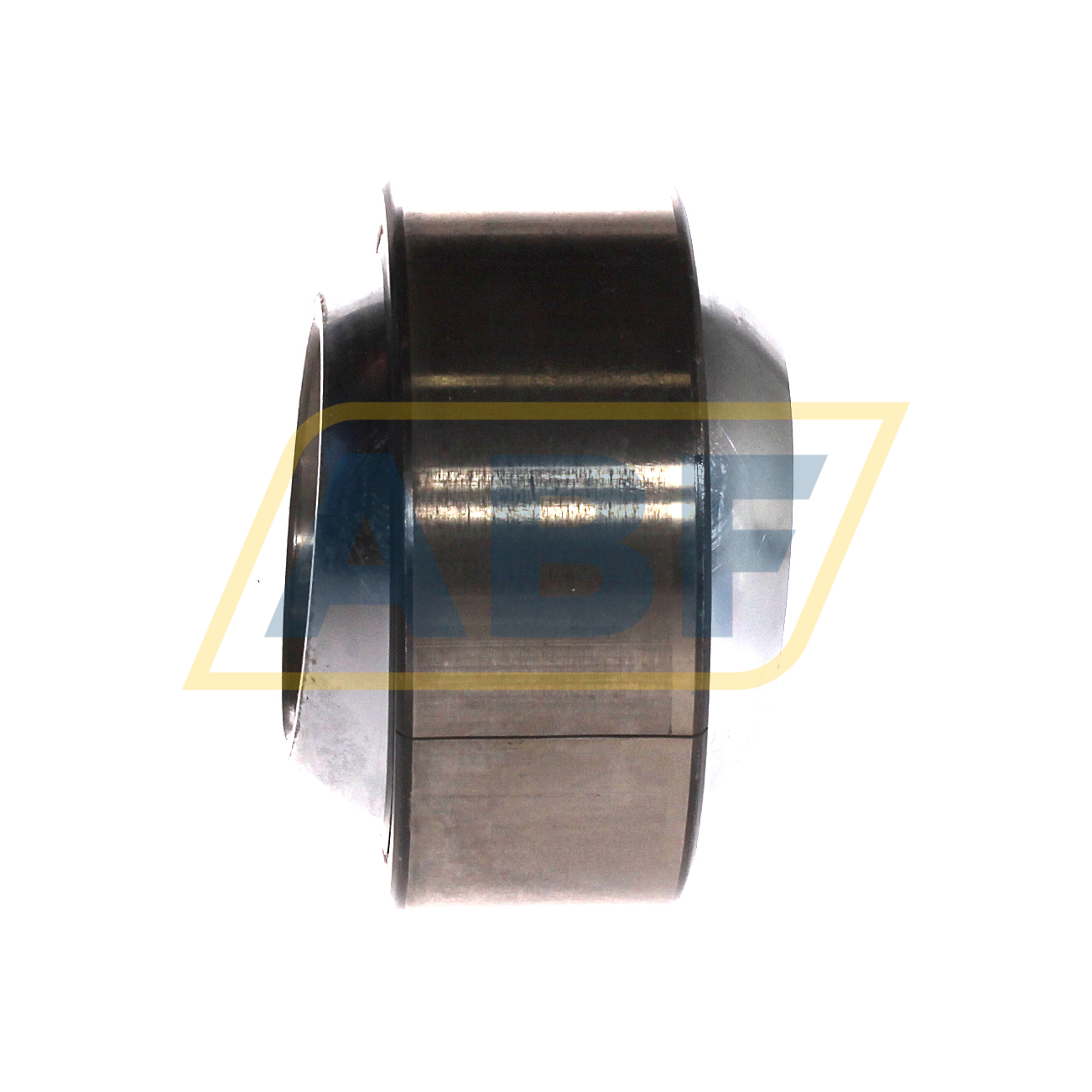

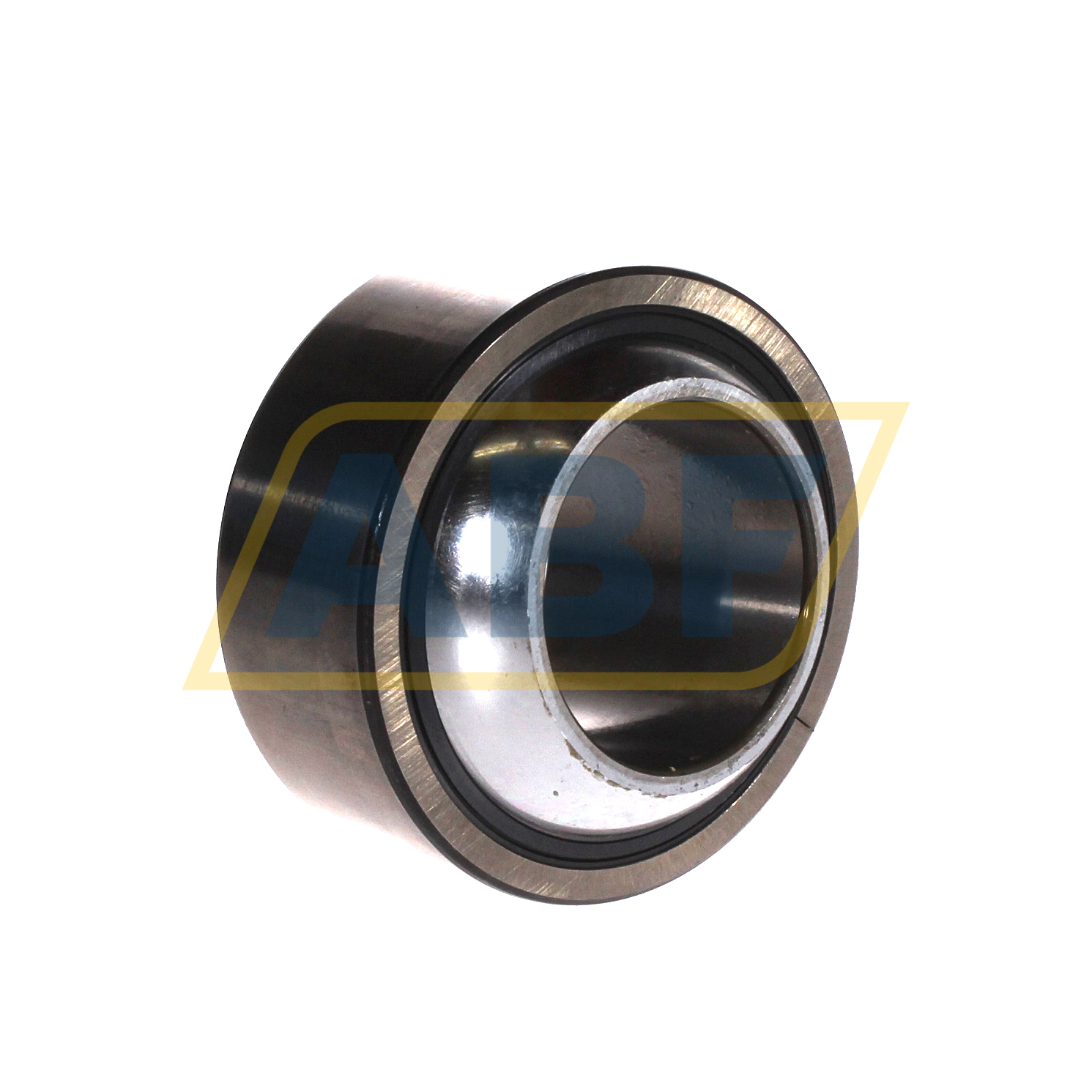

The GE50-FW-2RS-A INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE50-FW-2RS-A INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.
