Specifications
Availability2 pcs
BrandINA
Item NumberGIKSL22-PS INA
Manufacturer Part Number0599083940000
EAN4012802545838
CategoryRod End
Weight and Dimensions
Inner (d) MM
22
Outer (D) MM
55
Width (B) MM
28
Inner (d) Inch
0.8661
Outer (D) Inch
2.1654
Width (B) Inch
1.1024
Weight (kg)
0.49
Product Properties
Seal
No Seal
Contact Material
Stainless Steel on PTFE
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
42
Radial Static Load Rating C0r (N)
30400
Width inner ring (B) mm
28
Radial Dynamic Load Rating Cr (N)
68000
ECLASS number
23-05-01-05
ECLASS2 number
23-05-01-05
Medias description
Corrosion-resistant rod end, with internal thread, left hand thread, maintenance-free, sliding layer: PTFE film, DIN ISO 12240-4, dimension series K, type F, open design

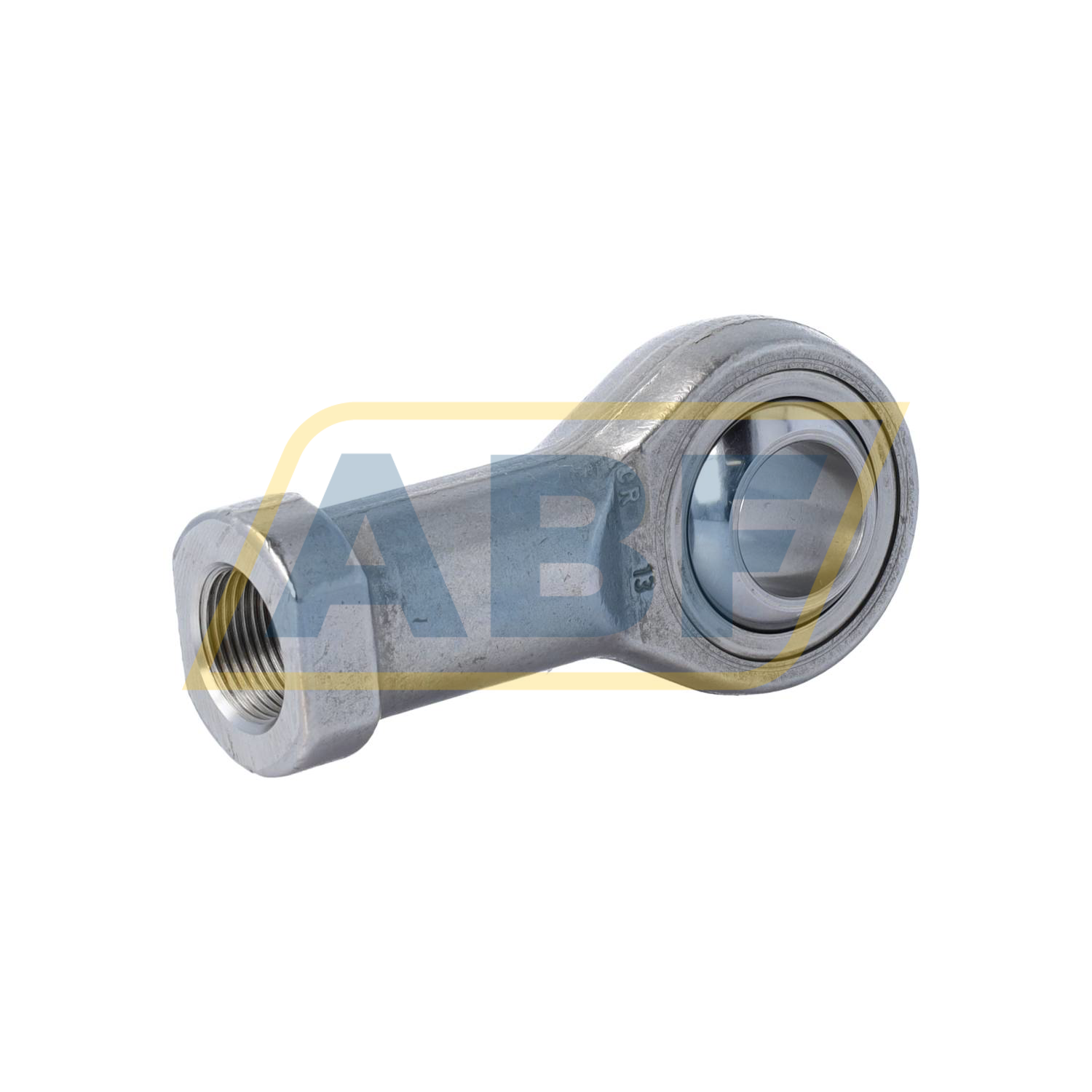

The GIKSL22-PS INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.
The GIKSL22-PS INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.
