Specifications
Availability30 pcs
BrandINA

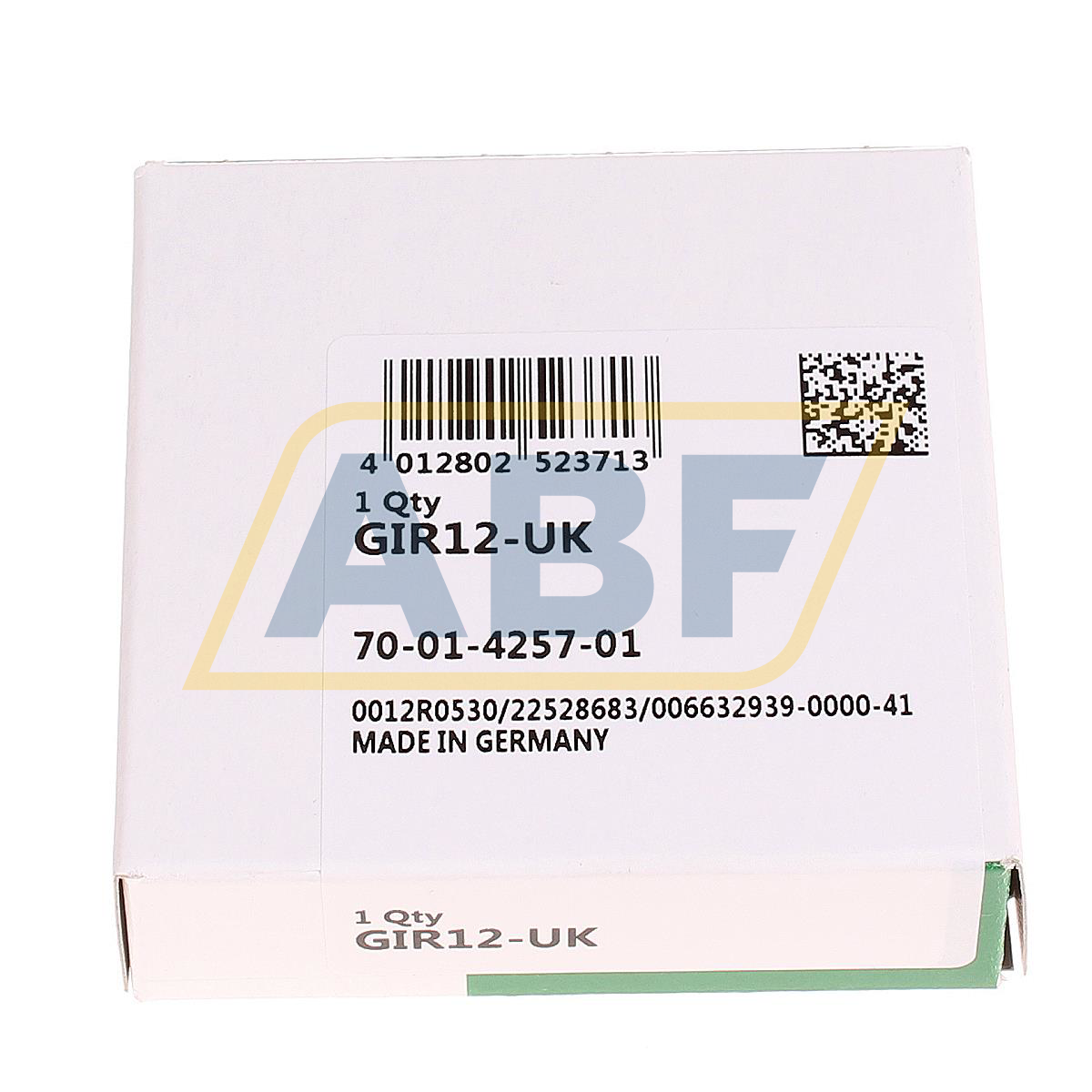

Item NumberGIR12-UK INA
Manufacturer Part Number0066329390000
Also known as
SI12C
TFI12FKB
EAN4012802523706
CategoryRod End
Weight and Dimensions
Inner (d) MM
12
Outer (D) MM
35
Width (B) MM
10
Inner (d) Inch
0.4724
Outer (D) Inch
1.378
Width (B) Inch
0.3937
Weight (kg)
0.11
Product Properties
Seal
No Seal
Contact Material
Steel on PTFE
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
22
Radial Static Load Rating C0r (N)
30400
Width inner ring (B) mm
10
Radial Dynamic Load Rating Cr (N)
11300
ECLASS number
23-05-01-05
ECLASS2 number
23-05-01-05
Medias description
Rod end with internal thread, maintenance-free, sliding layer: PTFE composite, DIN ISO 12240-4, dimension series E, type F, inner ring curved surface with hard chromium coating, open design, left hand thread
Suffix description
UKSliding Contact Surface Hard Chromium/PTFE Composite
The GIR12-UK INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.
The GIR12-UK INA has a spherical plain bearing with a steel-on-PTFE sliding contact, making it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.
