Specifications
Availability12 pcs
BrandINA
Item NumberGNE80-XL-KRR-B INA
Manufacturer Part Number0008838910000
Also known as
GNE80-KRR-B
EAN4012802809107
CategoryBearings for Housings
Weight and Dimensions
Inner (d) MM
80
Outer (D) MM
170
Width (B) MM
93,6
Inner (d) Inch
3.1496
Outer (D) Inch
6.6929
Width (B) Inch
3.685
Weight (kg)
7.1
Product Properties
Seal
2F - Standard Seal for Y-bearings
Lubrication
Standard Lubrication
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Outside diameter (D SP) mm
170
Width (b) mm
73
Locking collar total width (B 1) mm
93,6
Radial Static Load Rating C0r (N)
87000
Radial Dynamic Load Rating Cr (N)
131000
ECLASS number
23-05-08-02
ECLASS2 number
23-05-08-02
Medias description

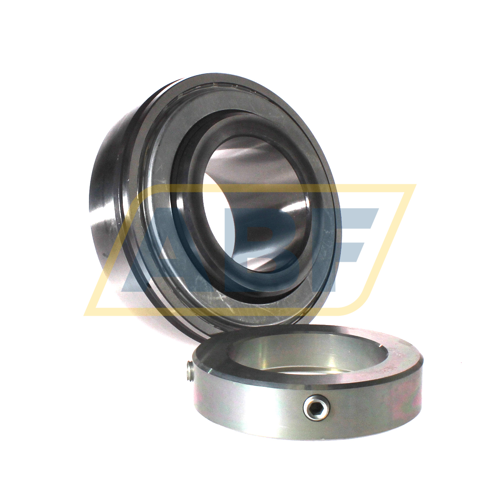

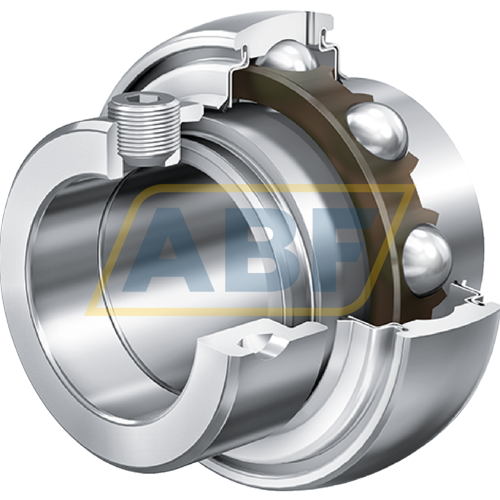

Radial insert ball bearings GNE..-KRR-B, spherical outer ring, location by eccentric locking collar, R seals on both sides
Suffix description
XLX-Life
KRRLip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
