Specifications
Availability93 pcs
BrandINA

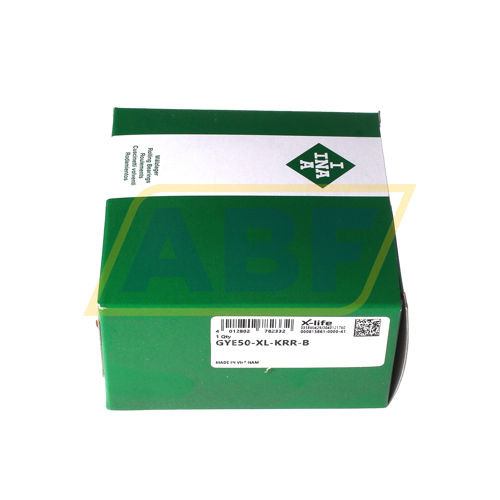

Item NumberGYE50-XL-KRR-B INA
Manufacturer Part Number0008158610000
Also known as
GYE50-KRR-B
YAR210-2F
EAN4012802782325
CategoryBearings for Housings
Weight and Dimensions
Inner (d) MM
50
Outer (D) MM
90
Width (B) MM
51,6
Inner (d) Inch
1.9685
Outer (D) Inch
3.5433
Width (B) Inch
2.0315
Weight (kg)
0.69
Product Properties
Seal
2F - Standard Seal for Y-bearings
Lubrication
Standard Lubrication
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Outside diameter (D SP) mm
90
Width (b) mm
51,6
Radial Static Load Rating C0r (N)
23200
Radial Dynamic Load Rating Cr (N)
37500
ECLASS number
23-05-08-02
ECLASS2 number
23-05-08-02
Medias description
Radial insert ball bearings GYE..-KRR-B, spherical outer ring, location by grub screws, R seals on both sides
Suffix description
XLX-Life
KRRLip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
