Loading equivalents
Specifications
Availability2 pcs
BrandFAG

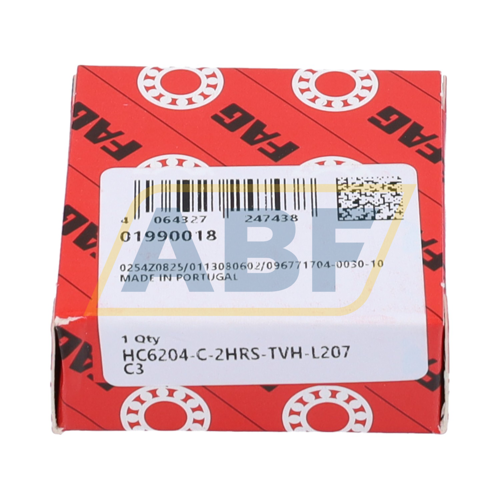

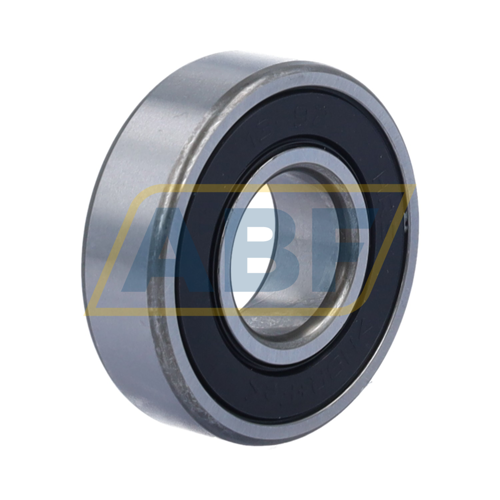

Item NumberHC6204-C-2HRS-TVH-L207-C3 FAG
Manufacturer Part Number0967717040030
EAN4064327247438
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
47
Width (B) MM
14
Weight (kg)
0.106
Product Properties
Bore
C - Cylindrical Bore
Seal
2RH - High Speed Low Friction Seal on Two Sides
Cage Type
P - Plastic Molded Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Lubrication
2 - High Temperature Grease
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Suffix description
CDeep Groove Ball Bearings Of Generation C, Modified Internal Construction
2HRSLip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
TVHCage Made From Glass Fibre Reinforced Polyamide, Rolling Element Riding
L207Grease Filling With Arcanol L207 (High Temperature Grease)
