Specifications
Availability37 pcs
BrandNSK
Item NumberHR30307DJ NSK
Also known as
31307D
EAN00029176043987
CategoryTapered Roller Bearing Single Row
Weight and Dimensions
Inner (d) MM
35,00
Outer (D) MM
80,00
Width (B) MM
22,75
Inner (d) Inch
1.3780
Outer (D) Inch
3.1496
Width (B) Inch
0.8957
Weight (kg)
0.515
Product Properties
Precision
Standard Precision
Suffix description
DTapered Roller Bearing, Steep Contact Angle (24 Degrees To 32 Degrees), Metric Series
JOuter Ring Raceway Diameter And Angle Comply With ISO/R355
Product description

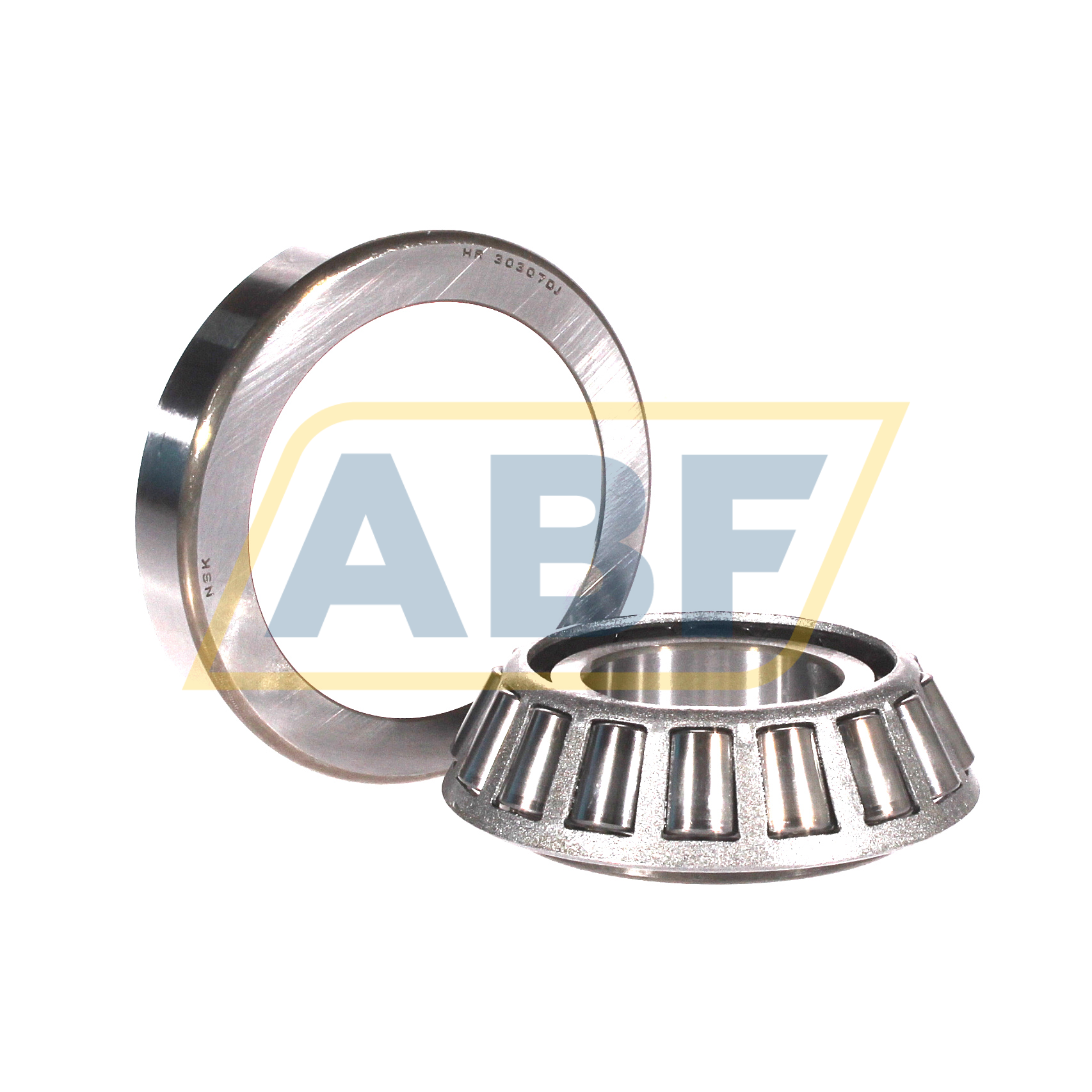

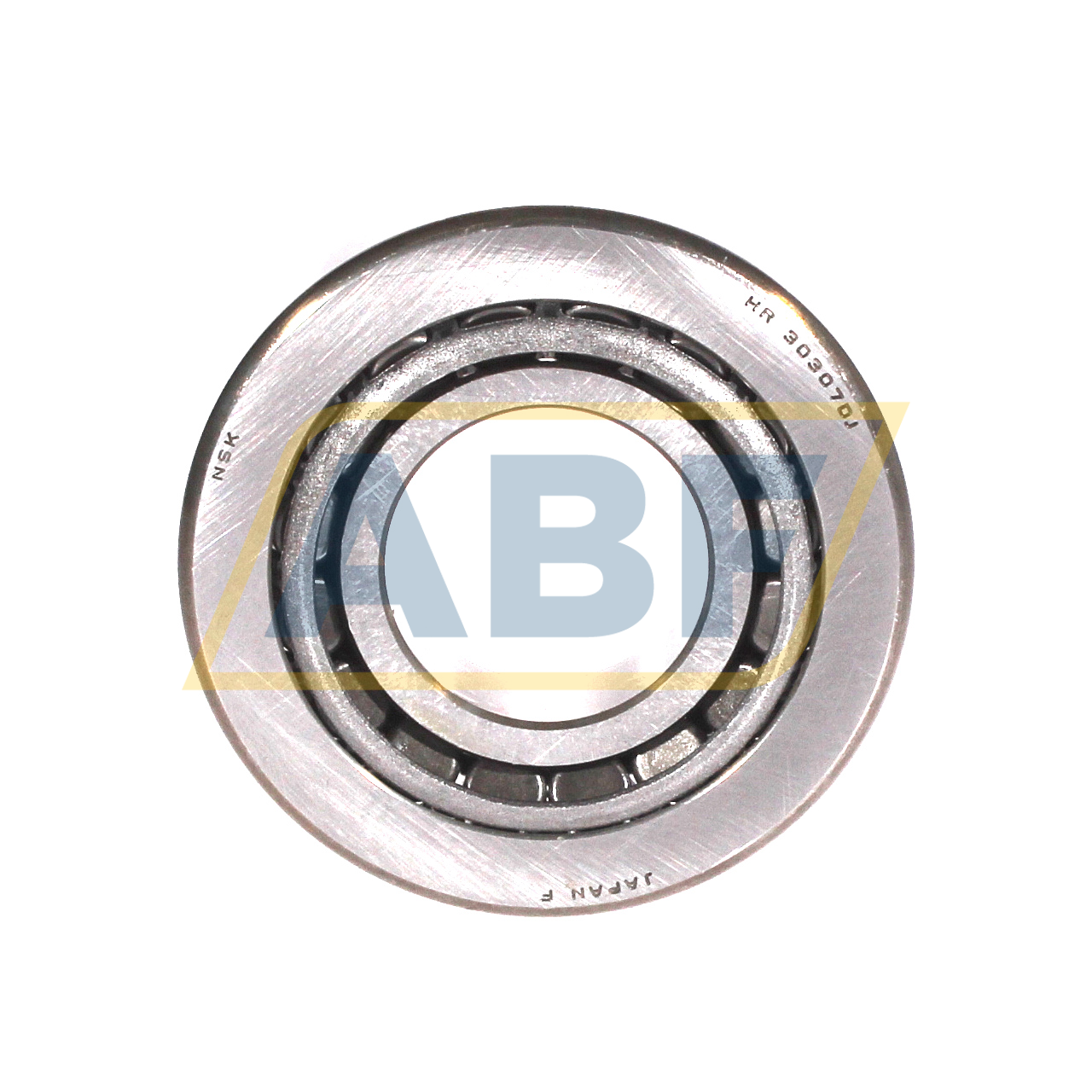

The HR30307DJ NSK is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

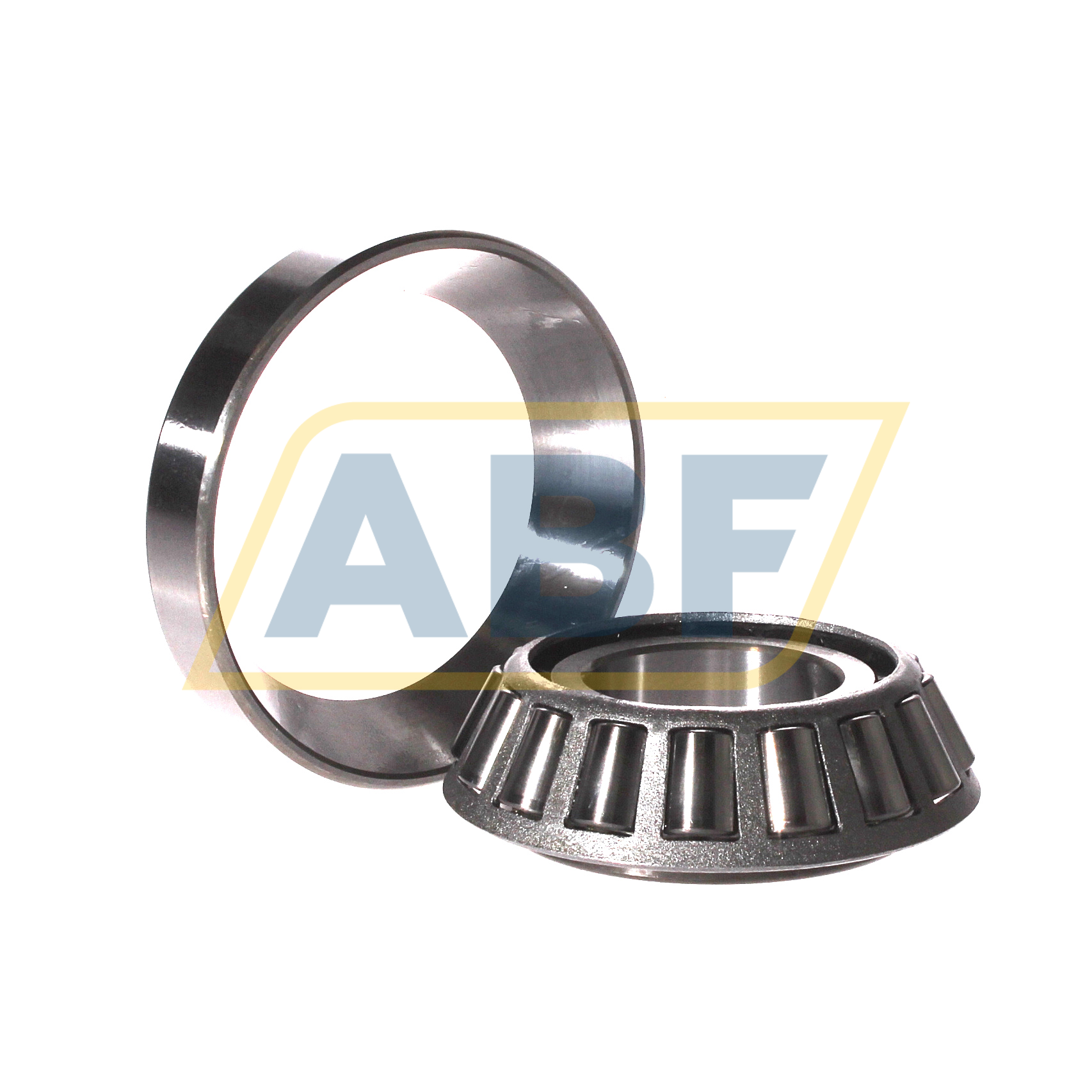

The HR30307DJ NSK is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.
