Specifications
Availability244 pcs
BrandINA
Item NumberKH25-B INA
Manufacturer Part Number0000450200000
Also known as
KH2540
KH2540B
EAN4047643173483
CategoryLinear Ball Bearing
Weight and Dimensions
Inner (d) MM
25
Outer (D) MM
35
Width (B) MM
40
Inner (d) Inch
0.9843
Outer (D) Inch
1.378
Width (B) Inch
1.5748
Weight (kg)
0.06
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Length (L) mm
40
Outer diameter (D) mm
35
Load capacity dyn. (C min)
2280
Load capacity stat. (C 0 min)
1670
Load capacity stat. (C 0 max)
2130
ECLASS number
23-30-03-01
ECLASS2 number
23-30-03-01
Medias description
Linear ball bearings with preservative, not sealed, with relubrication facility
Suffix description
BGuideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

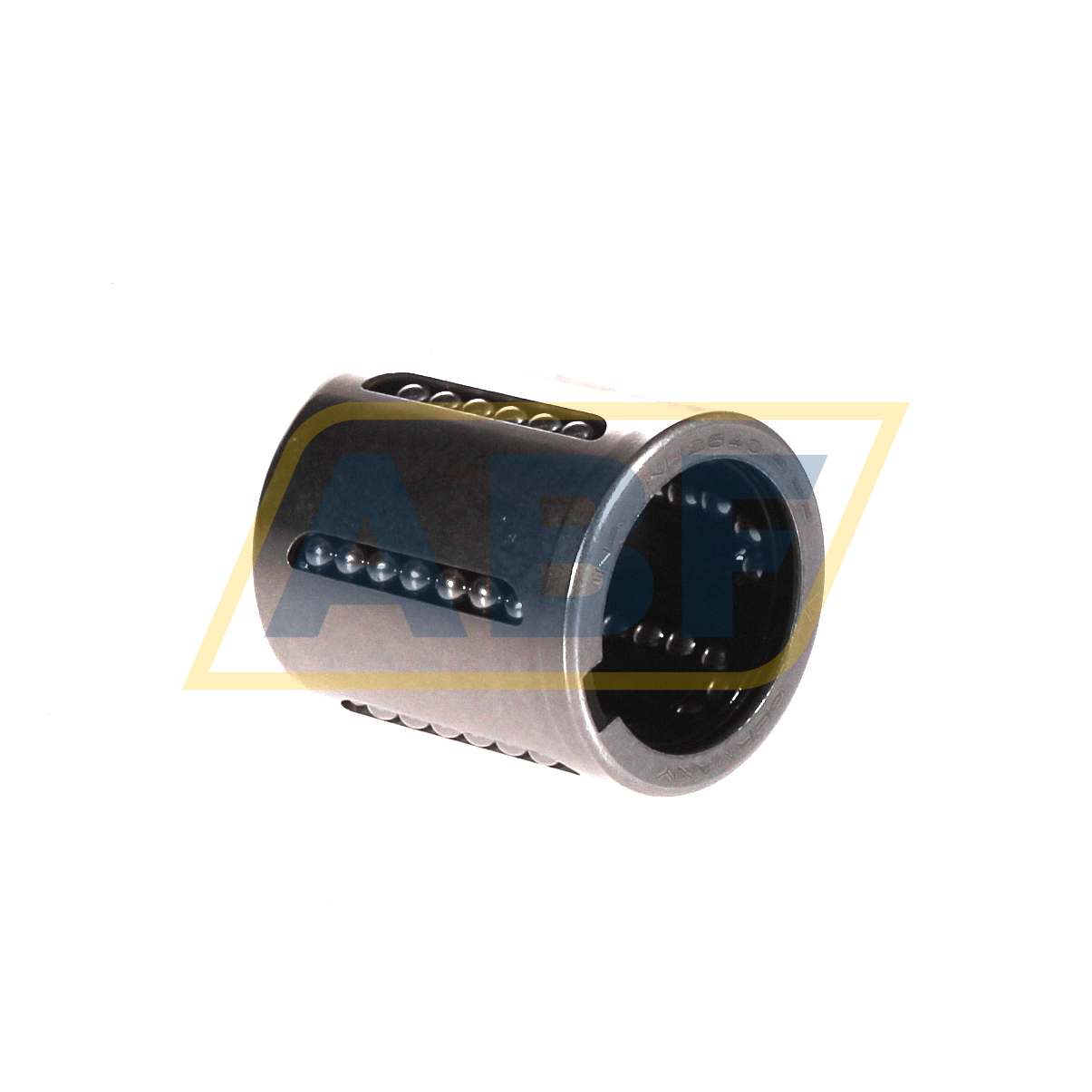

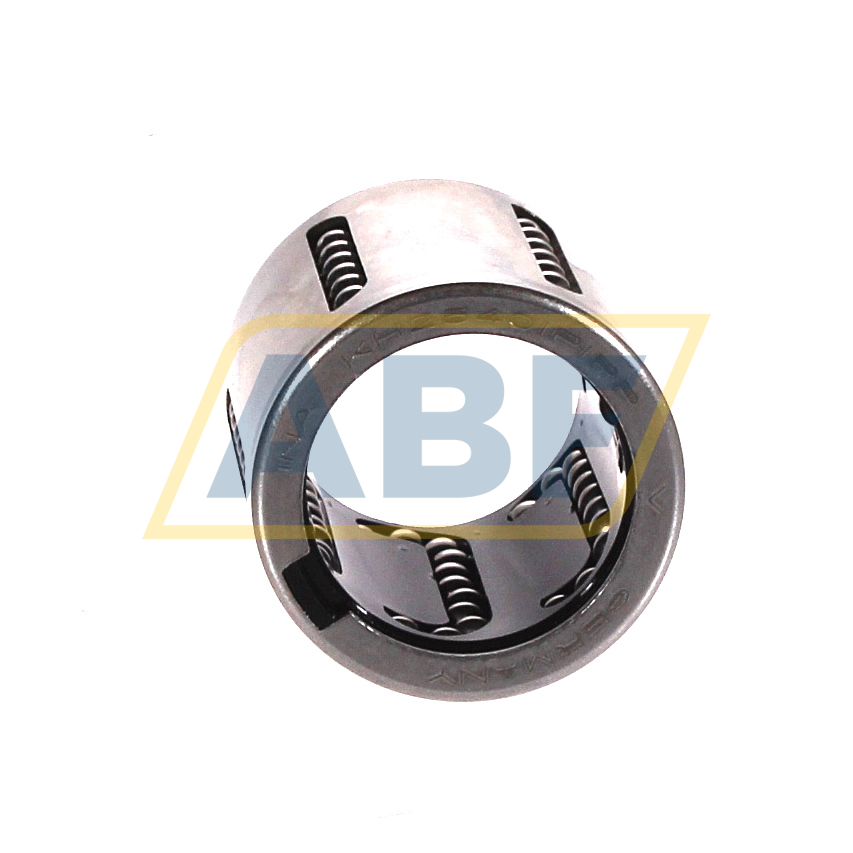

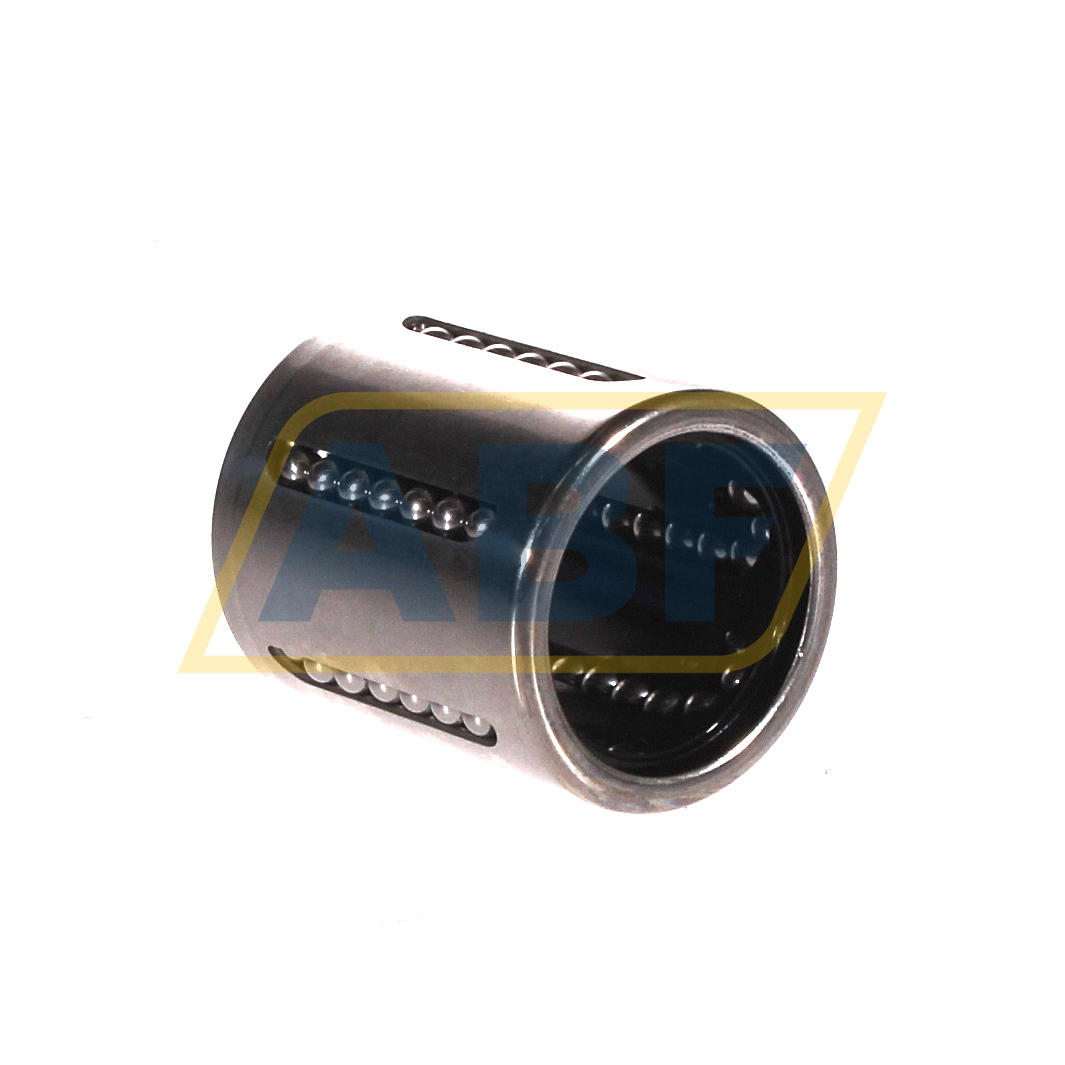

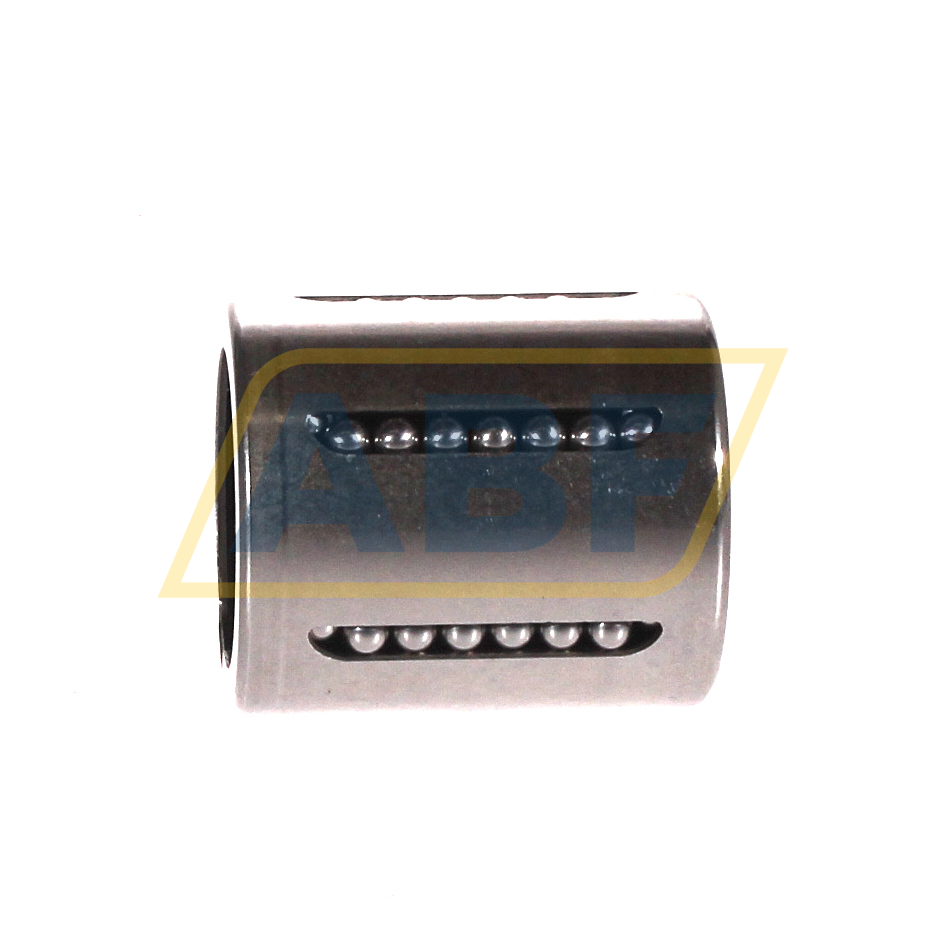

The KH25-B INA is a ball bushing or linear ball bearing from INA's compact design series. These ball bushings have low radial heights. This makes them very suitable for applications with limited radial clearance. This is often the case in machines for the food and packaging industry. Like all other linear bearings in this compact range, the KH25-B INA has a sealed design for use on unsupported shafts.
The metal outer ring of the bearing contains a plastic cage. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring. INA linear ball bearings in the compact design series offer a remarkably good price/performance ratio.
